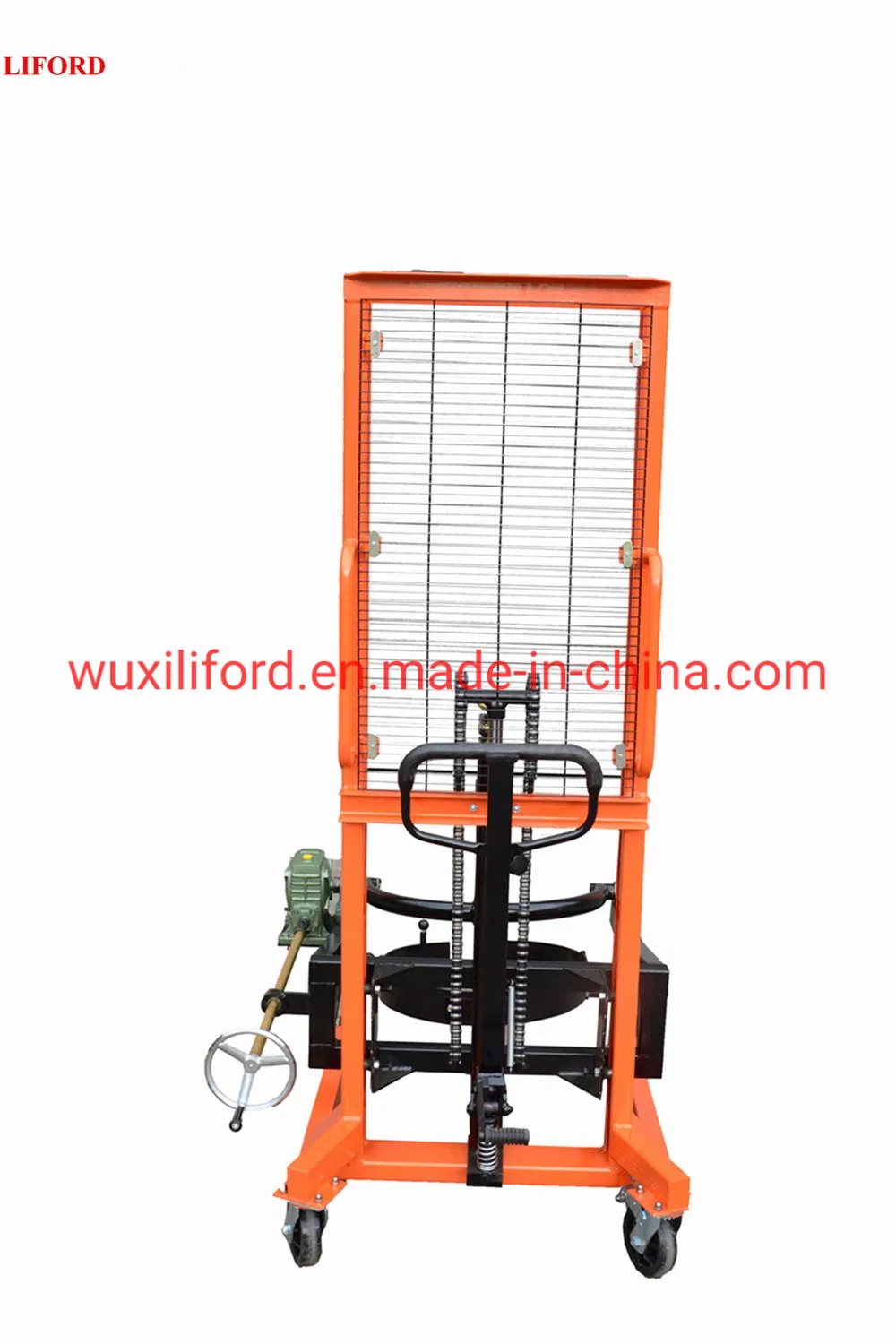

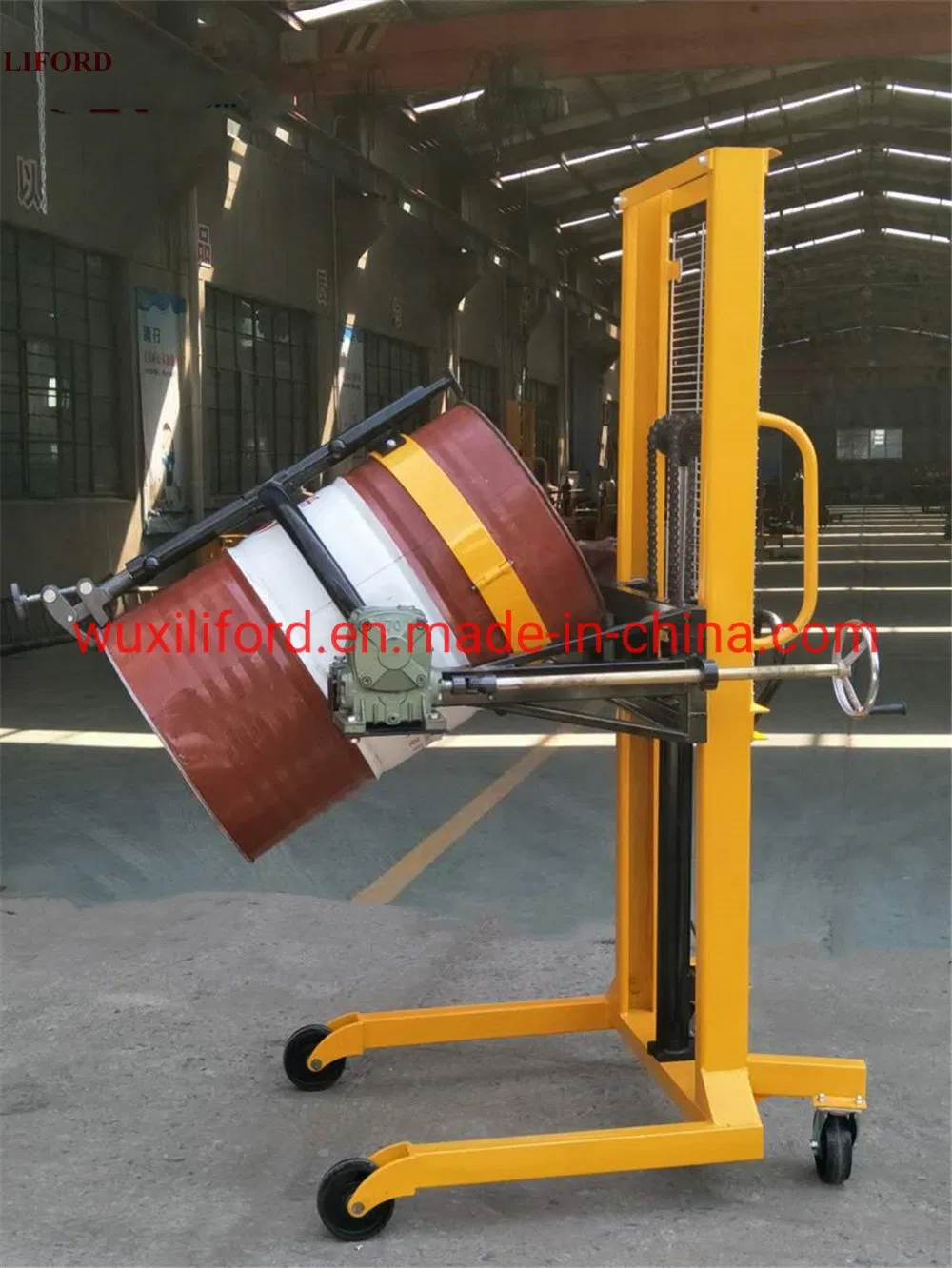

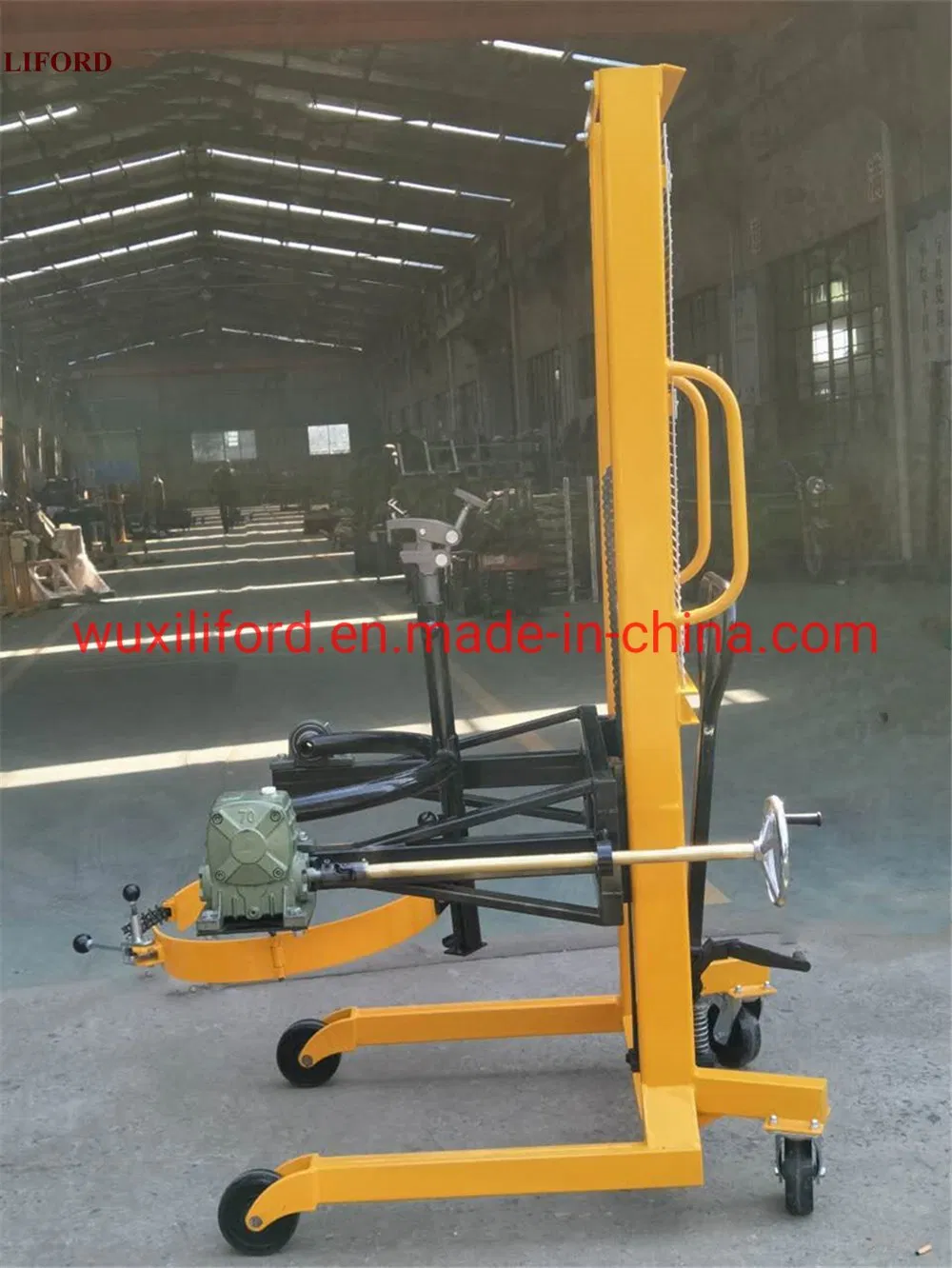

China Factory Price 450kg Drum Handler with Scale Hydraulic Drum Lifter Drum Rotator Da450-1
China Factory Price 450kg Drum Handler with Scale Hydraulic Drum Lifter Drum Rotator Da450-1
China Factory Price 450kg Drum Handler with Scale Hydraulic Drum Lifter Drum Rotator Da450-1
China Factory Price 450kg Drum Handler with Scale Hydraulic Drum Lifter Drum Rotator Da450-1
China Factory Price 450kg Drum Handler with Scale Hydraulic Drum Lifter Drum Rotator Da450-1
1 / 5
China Factory Price 450kg Drum Handler with Scale Hydraulic Drum Lifter Drum Rotator Da450-1
China Factory Price 450kg Drum Handler with Scale Hydraulic Drum Lifter Drum Rotator Da450-1
China Factory Price 450kg Drum Handler with Scale Hydraulic Drum Lifter Drum Rotator Da450-1
China Factory Price 450kg Drum Handler with Scale Hydraulic Drum Lifter Drum Rotator Da450-1
China Factory Price 450kg Drum Handler with Scale Hydraulic Drum Lifter Drum Rotator Da450-1

China Factory Price 450kg Drum Handler with Scale Hydraulic Drum Lifter Drum Rotator Da450-1

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Specification
Model NO.
DA450-1, DA450
Product Name
Scale-Equipped Hydraulic Drum Pourers
Capacity
450kg
Lifting Height
1500mm
Pouring Height
1580mm
Type
Hydraulic Drum Lifter
Certificate
ISO9001:2015, ISO14001:2015
Wheel Dimension
150*50mm
HS Code
84279000
Overall Size
1400*1000*2100mm
Hydraulic Drum Handler with Scale

450kg Drum Handlers with Scale DA450-1

Our scale-equipped drum handlers make it simple to weigh while you raise and pour heavy plastic and steel drums. These units allow you to dispense precise amounts as needed without a separate weighing station. You maintain full control over the pouring angle and height during the entire dispensing process.

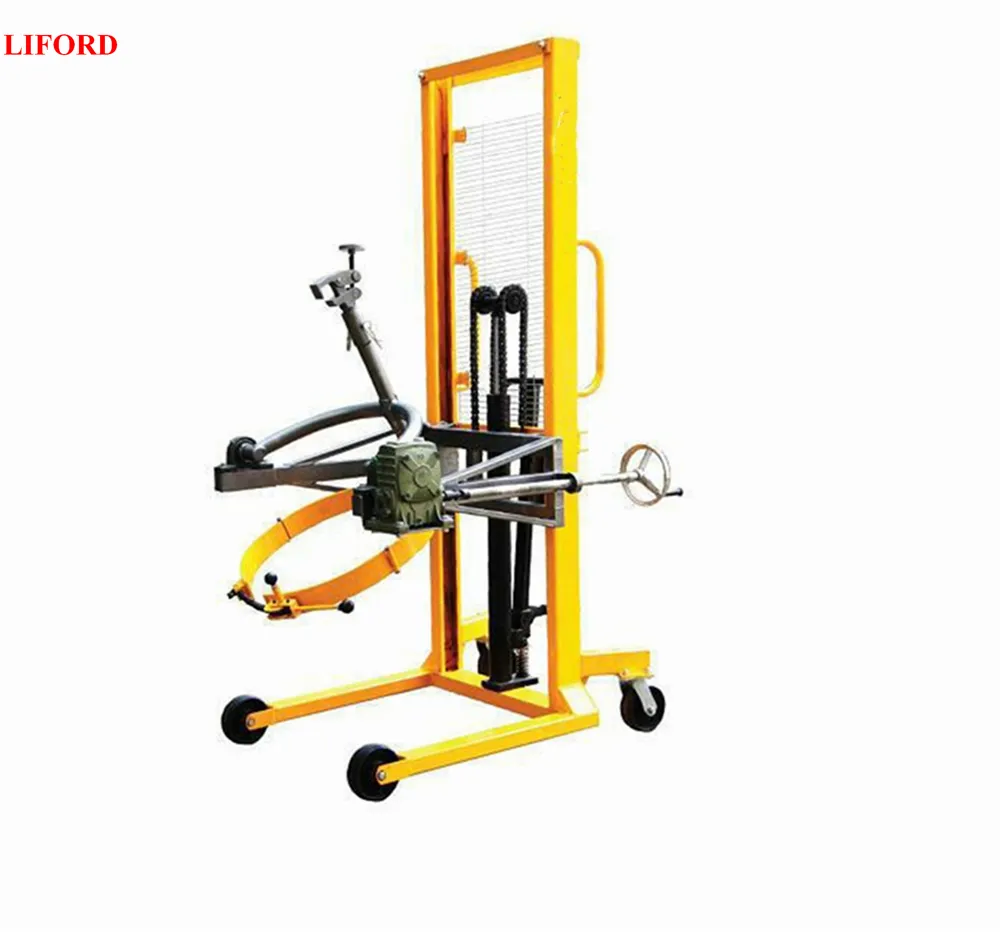

Drum Handler Detail 1

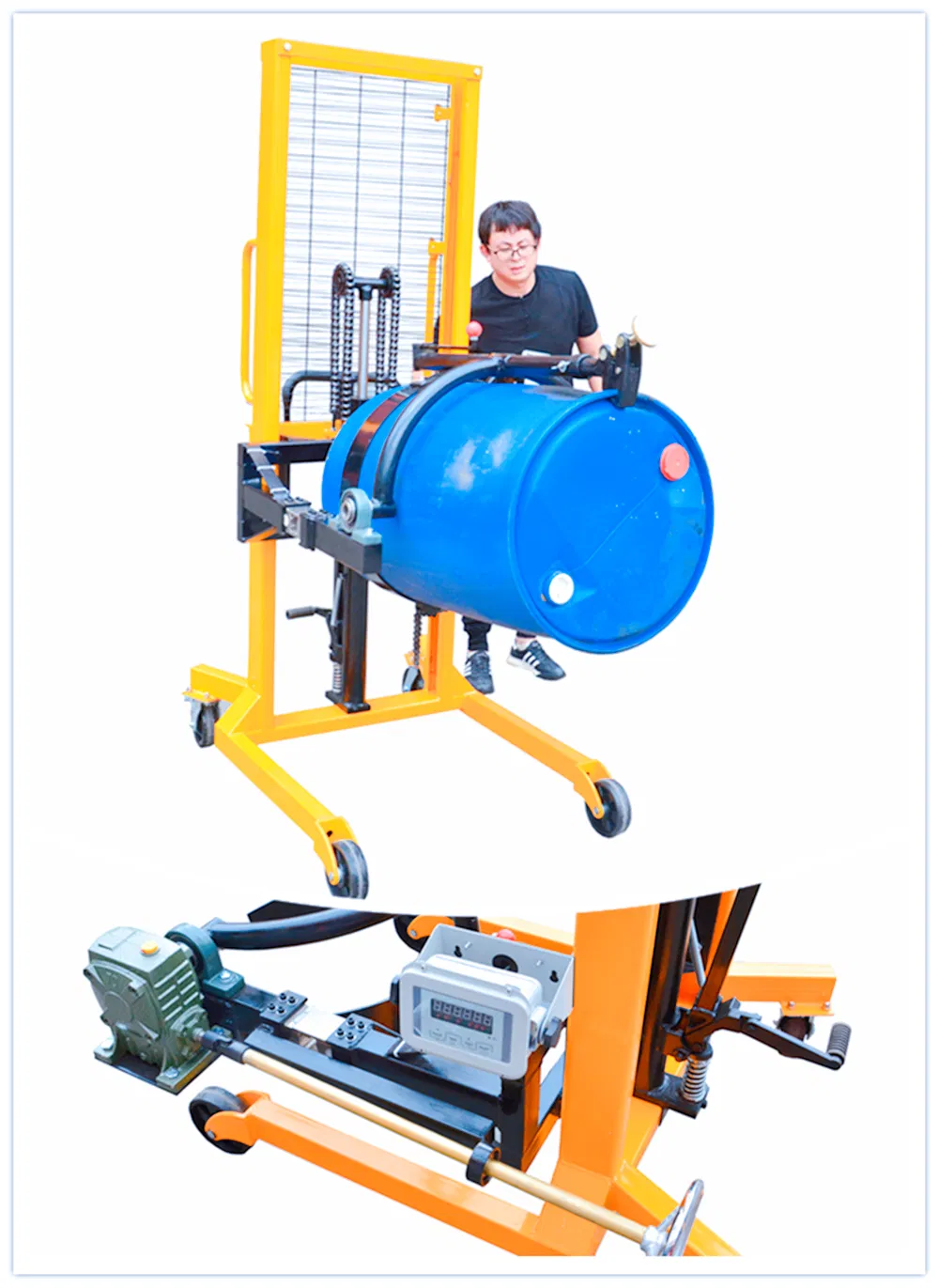

Drum Handler Detail 2

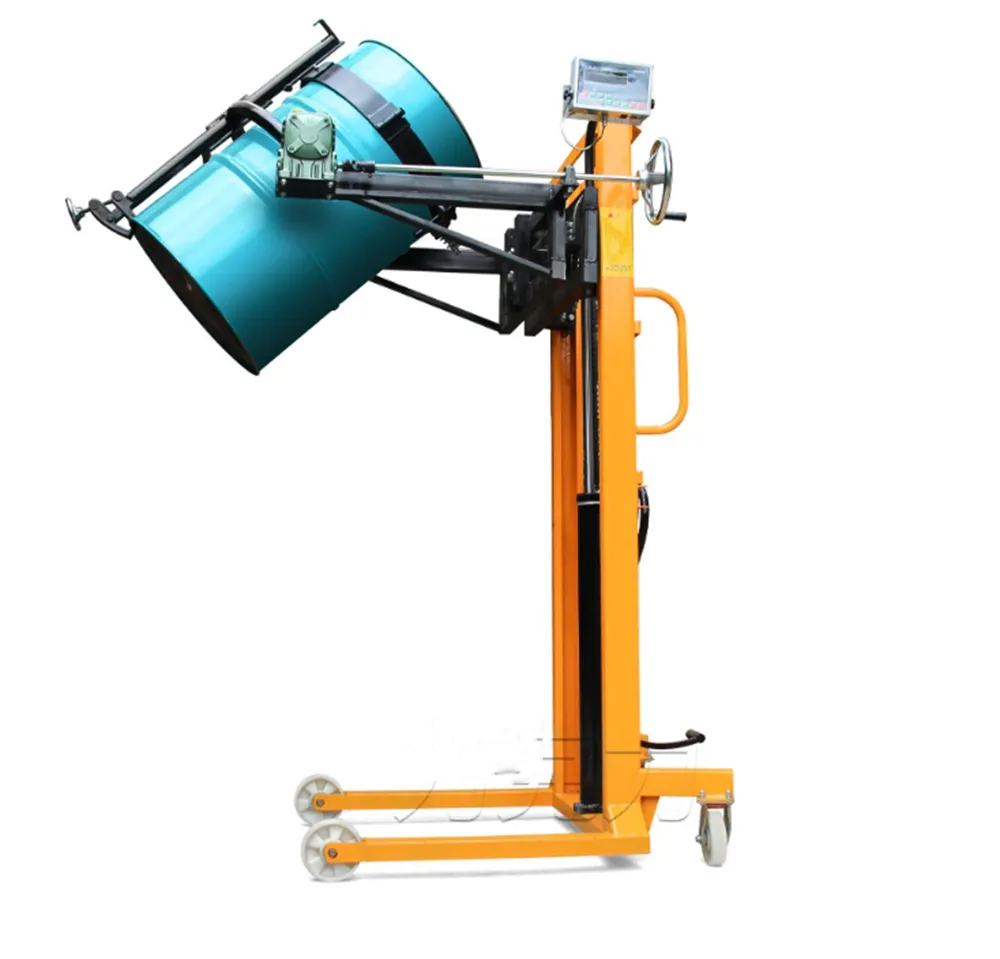

Drum Handler Detail 3
⭐ Key Features
  • High Capacity: Robust load capacity of 450kg for heavy-duty industrial use.

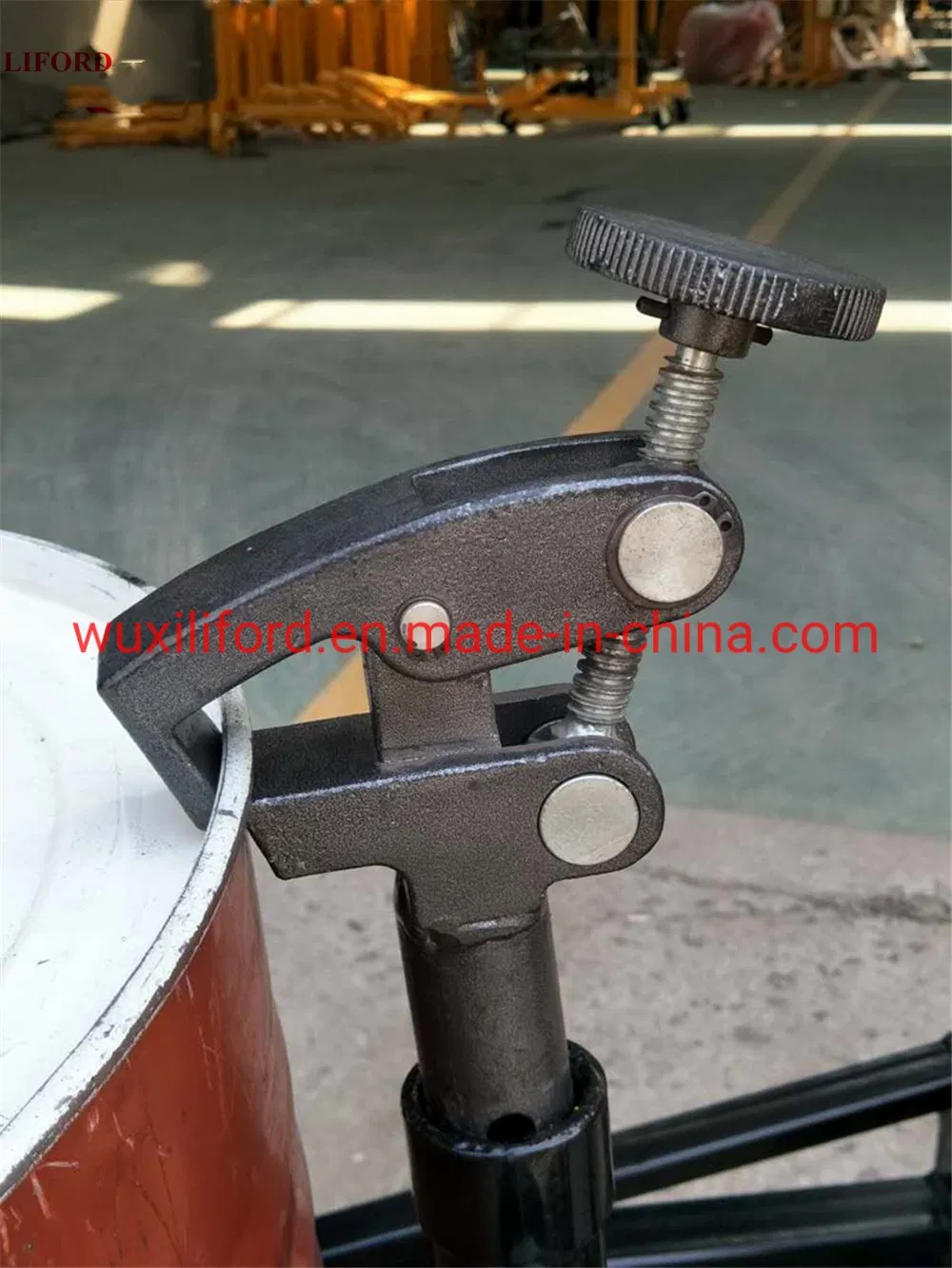

  • Dual Structure: Combined Eagle-grip and Anchorear structure for maximum safety.
  • Versatile Compatibility: Suitable for 55-gallon steel and plastic rimmed drums.
  • Precision Rotation: Manually rotate drums 180 degrees; can be held at any angle.
  • Integrated Scale: Controlled measuring capabilities with an accuracy range of ±3‰.
  • Stability: Solid steel C-frame construction provides superior stability during transit.
  • Mobility: Features two rigid and two swivel casters (Ø150*50mm) with floor lock screws.

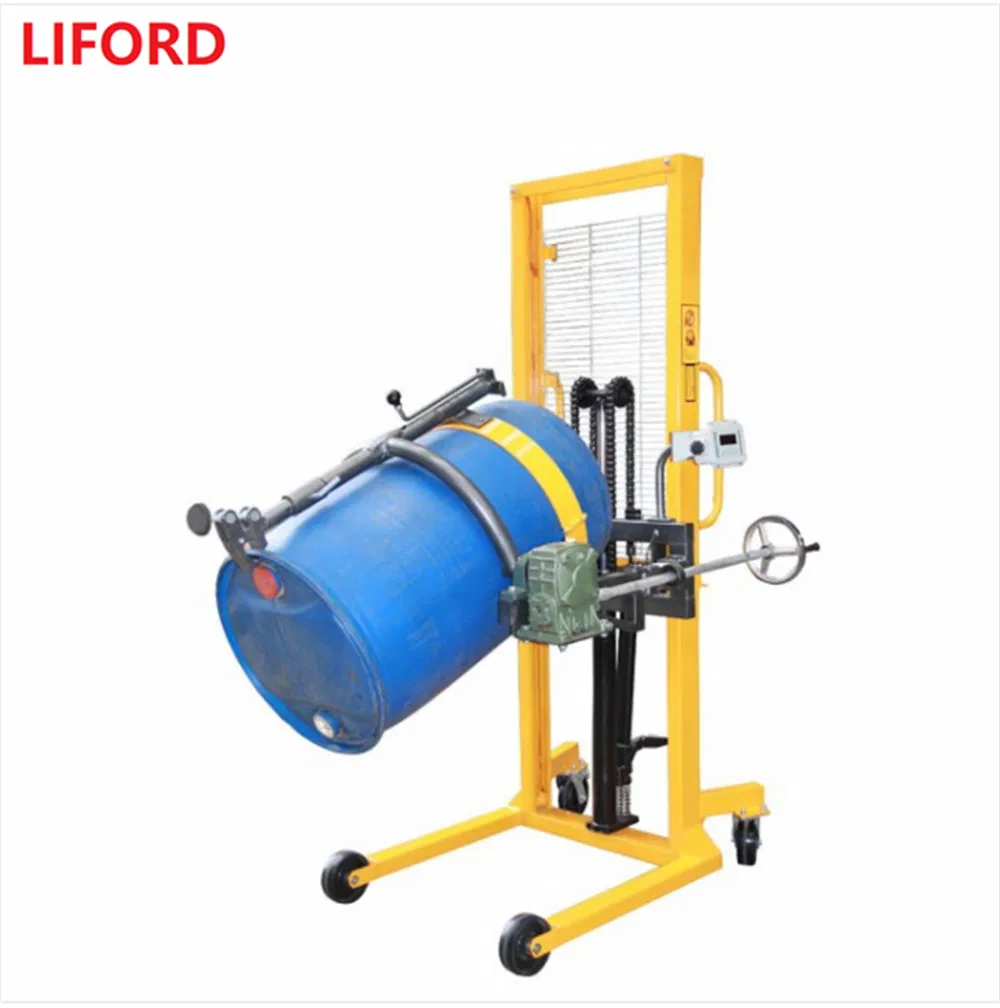

Drum Handler Usage

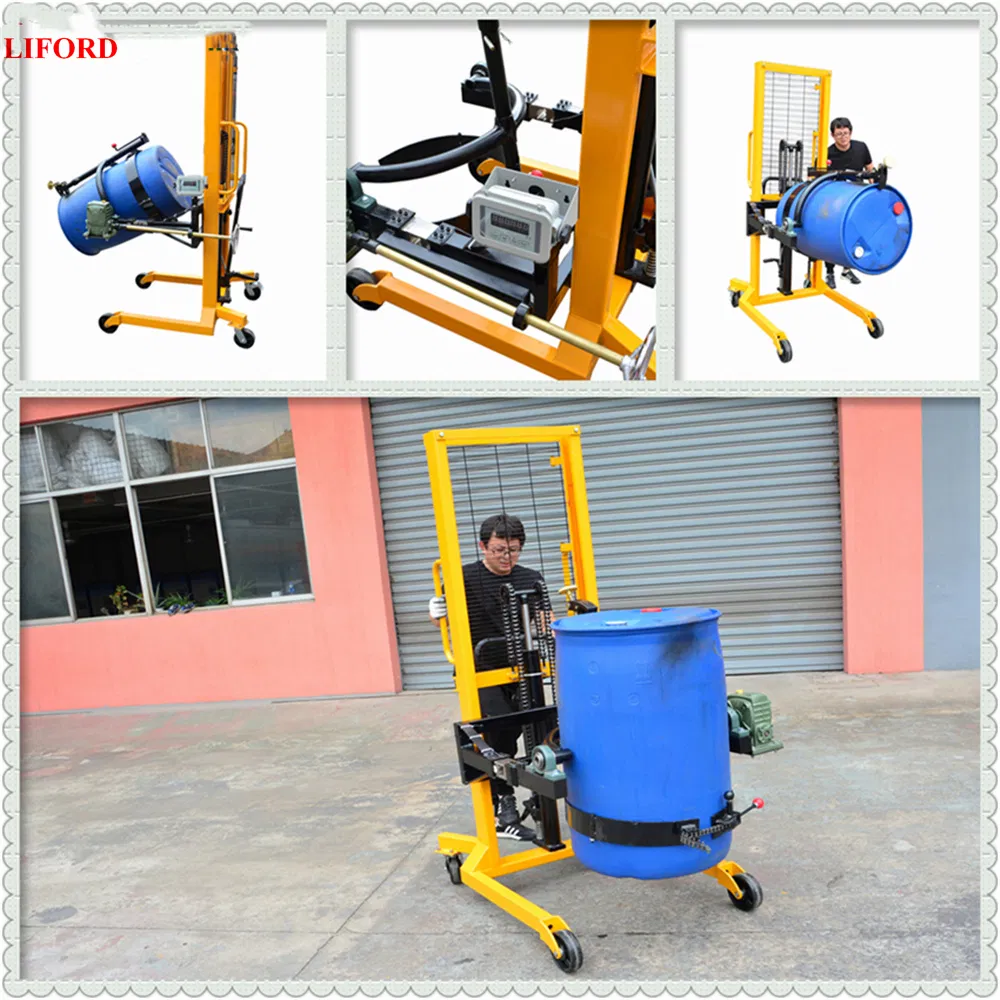

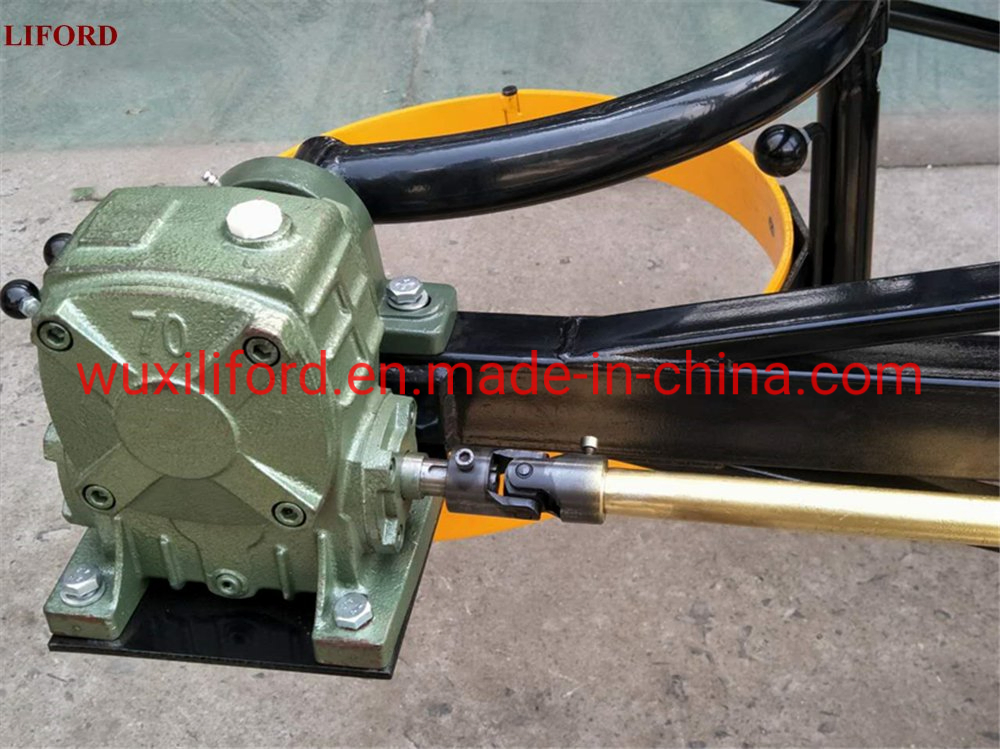

Drum Rotator Mechanism

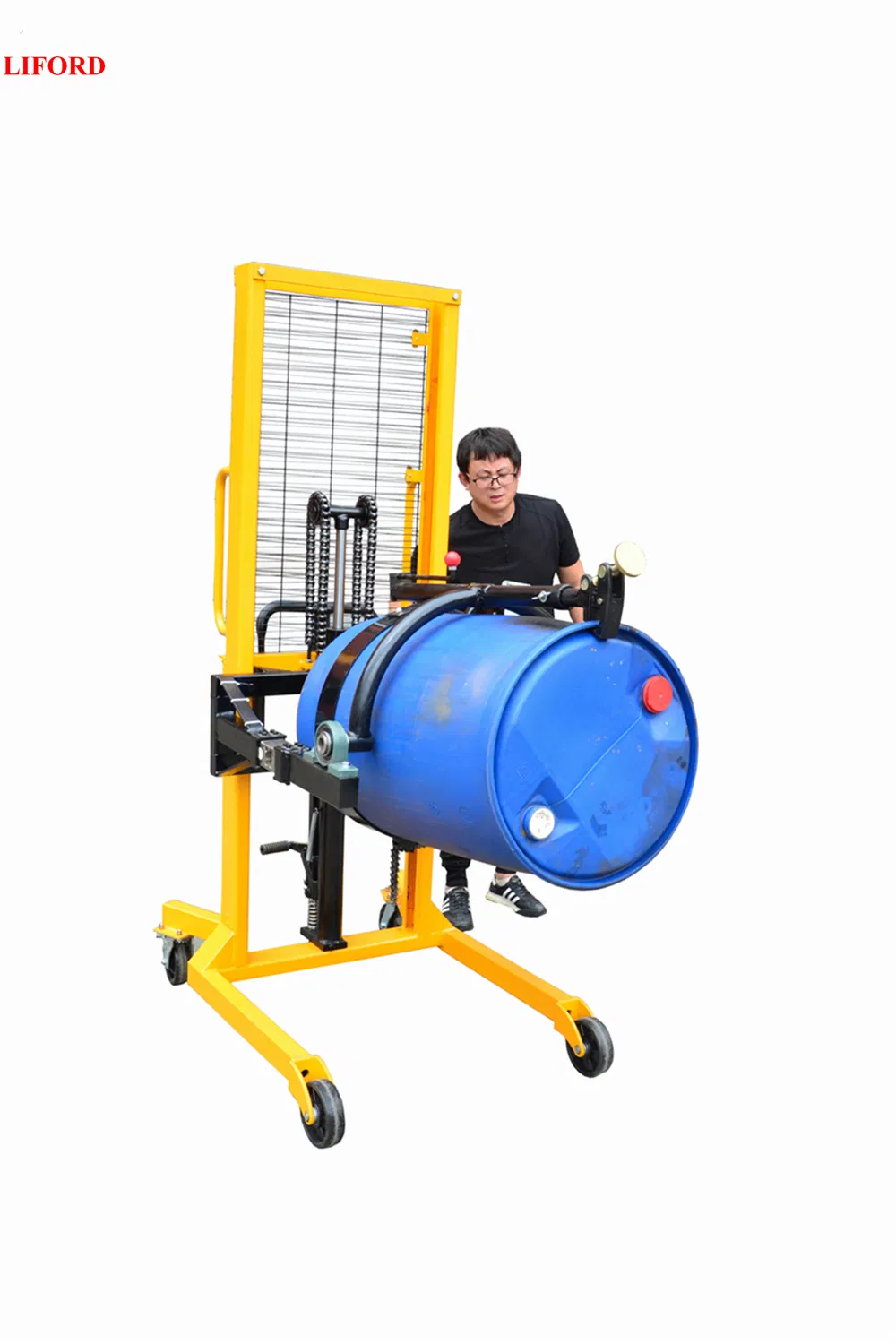

Hydraulic System
📋 Technical Data
Parameter Unit Value (DA450-1)
Load Capacitykg450
Net Weightkg191
Lifting Heightmm1500
Pouring Heightmm1580
Caster DimensionmmØ150*50
Inner/Outer width of front support legsmm630/810
Overall Sizemm1400*1000*2100
🚀 Industrial Applications

This drum stacker with scale is widely utilized to lift, transport, and tilt steel and plastic drums across various sectors:

Application 1

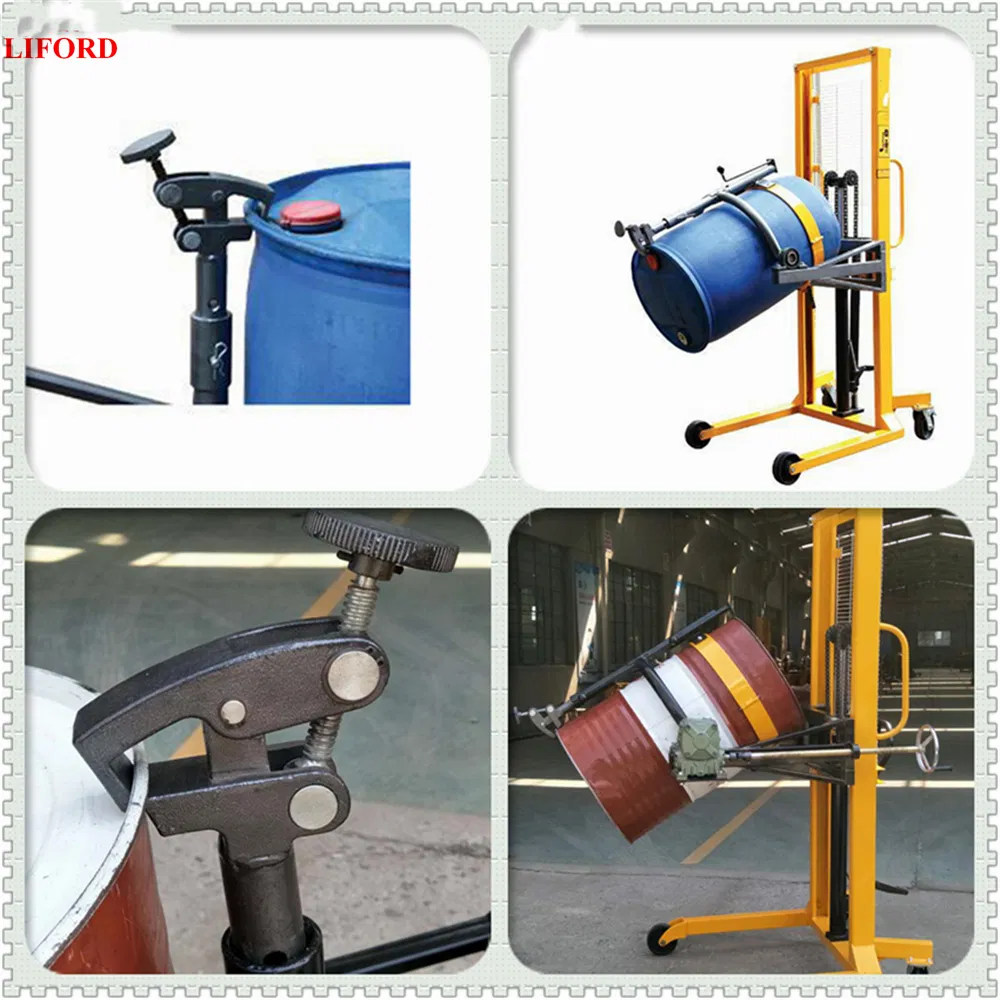

Application 2

Ideal for: Chemical processing, Food & Beverage, Dye and Paint workshops, Adhesive production, Cooking oil handling, and general liquid loading/unloading tasks.

🏆 Why Choose Our Solutions?
  • 10+ Years Experience: Professional expertise in material handling equipment.
  • Fast Delivery: Optimized production cycles to meet your project timelines.
  • OEM/ODM Available: Custom design services for non-standard parts.
  • Quality Assurance: 100% inspection before shipment.
  • Strong Packing: Reinforced pallets and cartons for sea/air transit.
Quality Control
Frequently Asked Questions (FAQ)
What types of drums can the DA450-1 handle?
It is compatible with 30-gallon and 55-gallon plastic, steel, and fiber drums with rims.
How accurate is the integrated weighing scale?
The scale provides high-precision measurement with an accuracy range of ±3‰, allowing for controlled dispensing.
What is the maximum lifting and pouring height?
The unit can lift drums up to 1500mm and has a maximum pouring height of 1580mm.
Can the drum be held at a specific angle for slow pouring?
Yes, the manual rotation mechanism allows you to rotate the drum 180 degrees and lock it at any angle for precise pouring.
Is the unit easy to move when fully loaded?
Yes, it is equipped with high-quality Ø150*50mm casters (two swivel and two rigid) and a floor lock for safe, easy movement and positioning.
What is the warranty period for this equipment?
The product comes with a one-year warranty period, and related spare parts are typically included in the tool box.
