Basic Specifications
Model NO.CQD20-D
TypeStacker
PowerAC Motor
Load Capacity1T - 5T
FuelElectric
Lift Height>5000mm
WheelPU
Battery48V400Ah
⚡

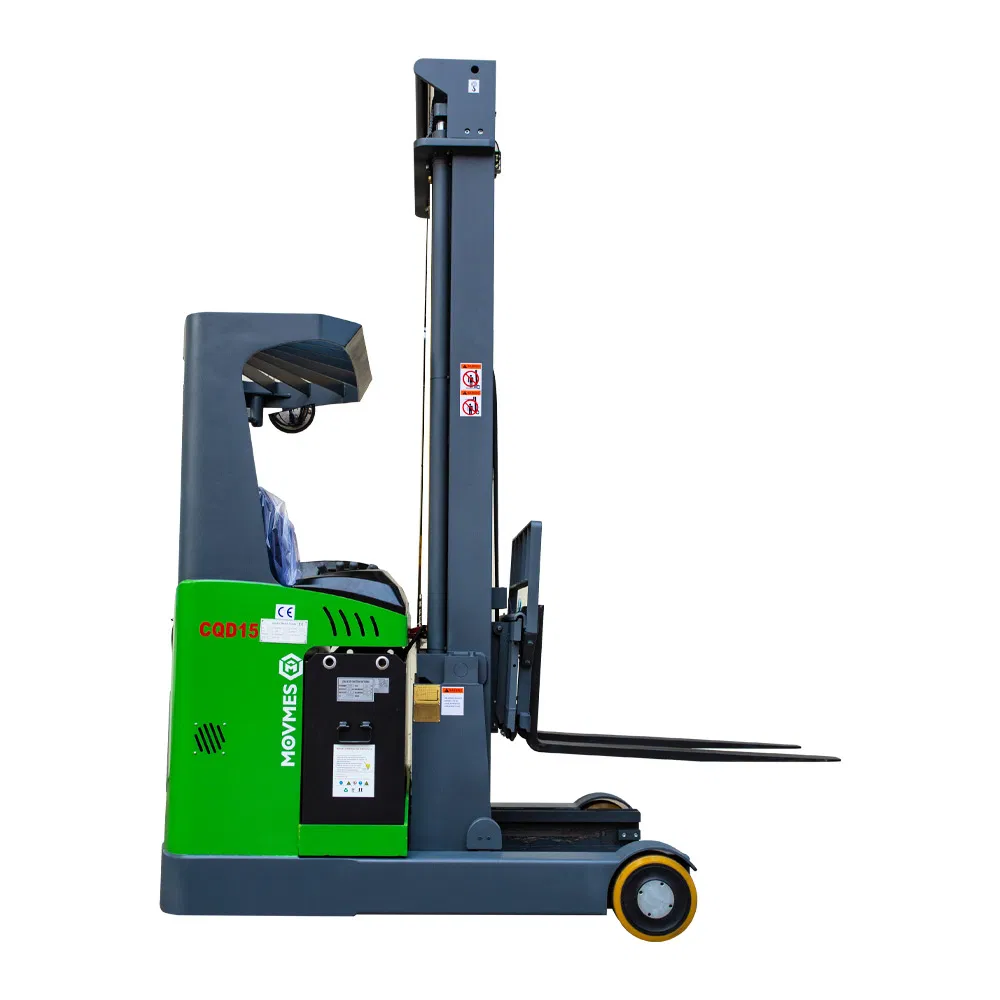

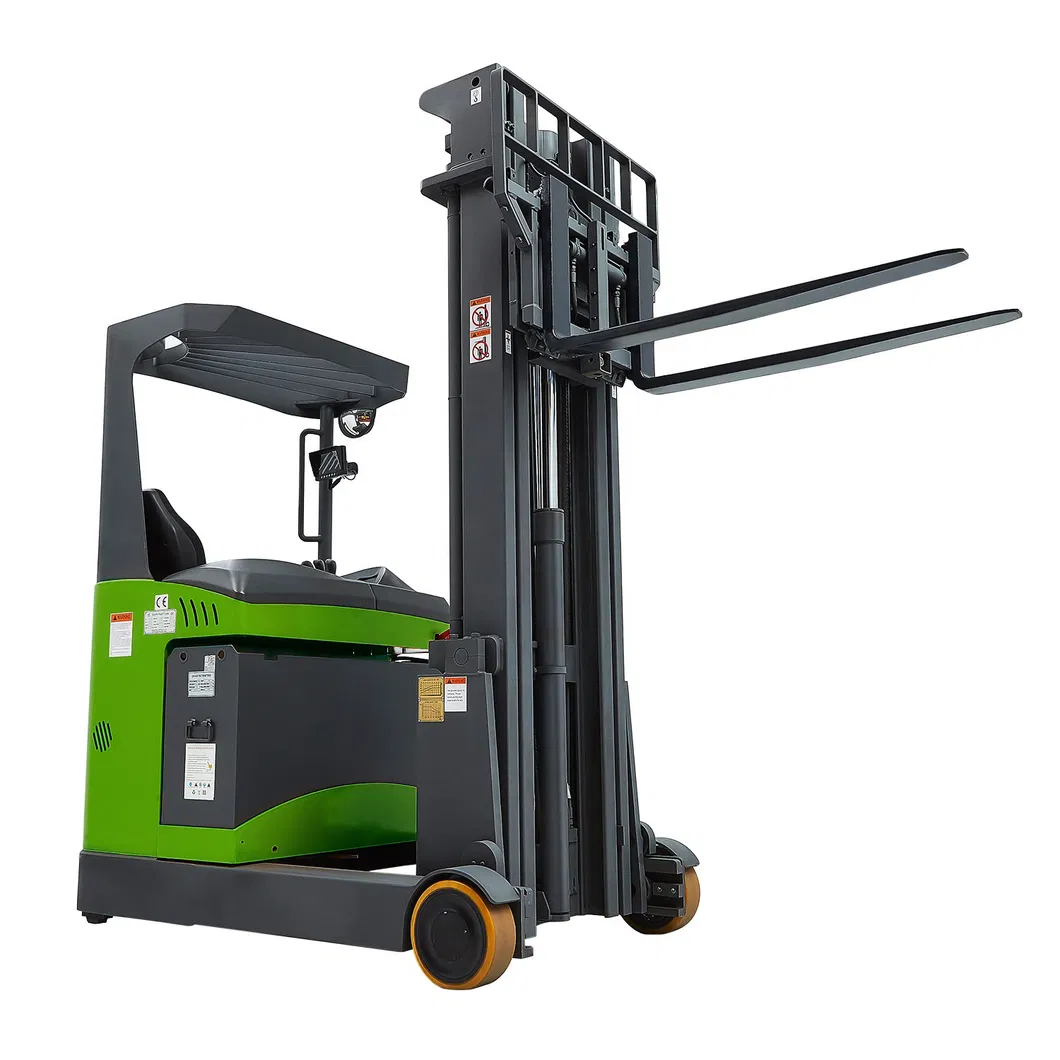

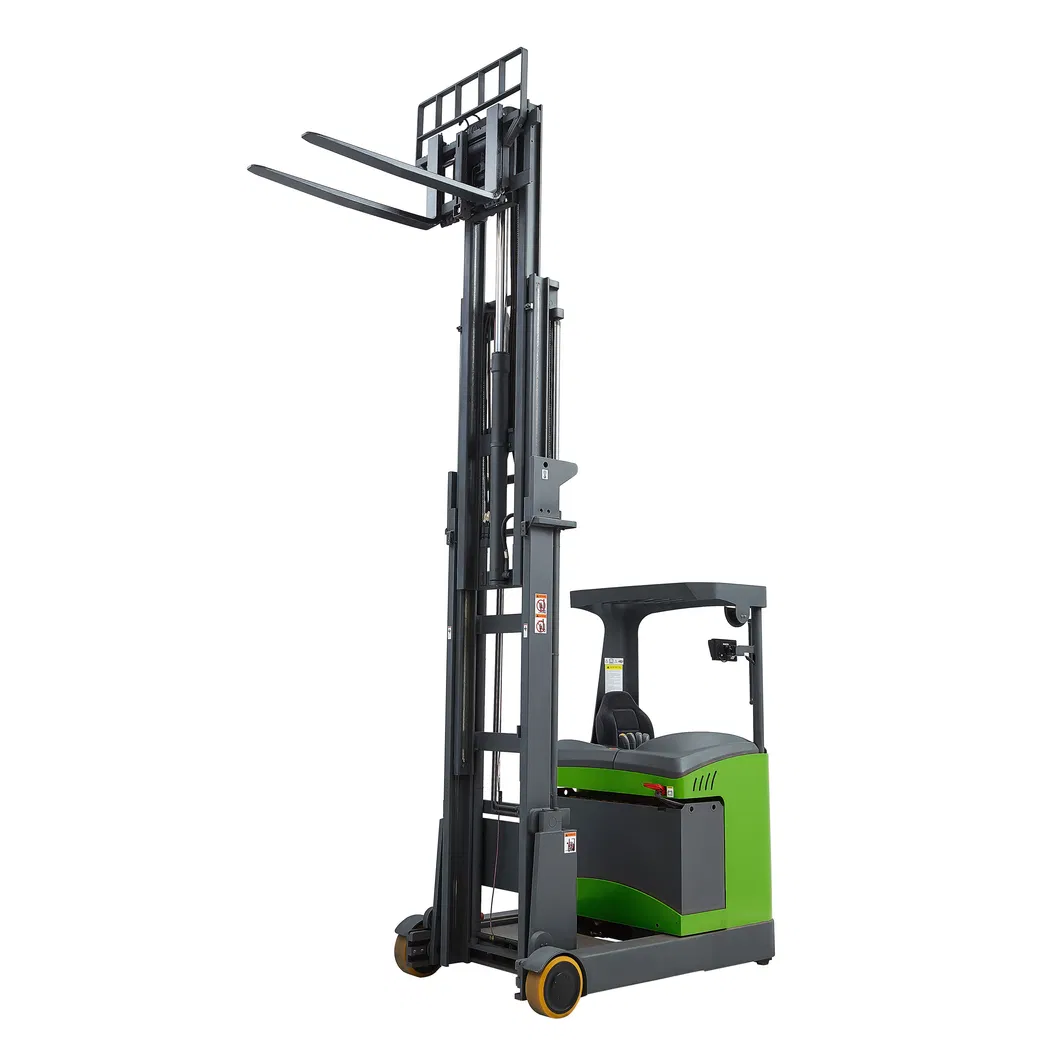

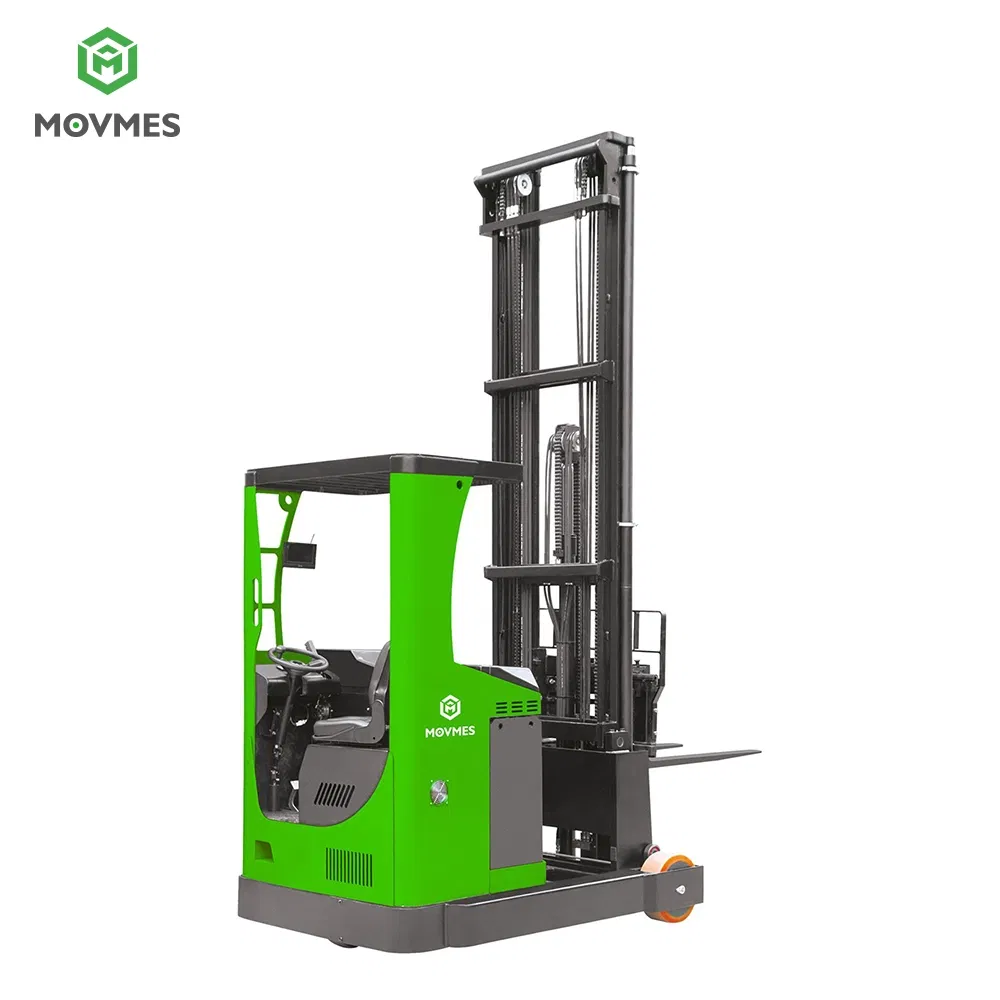

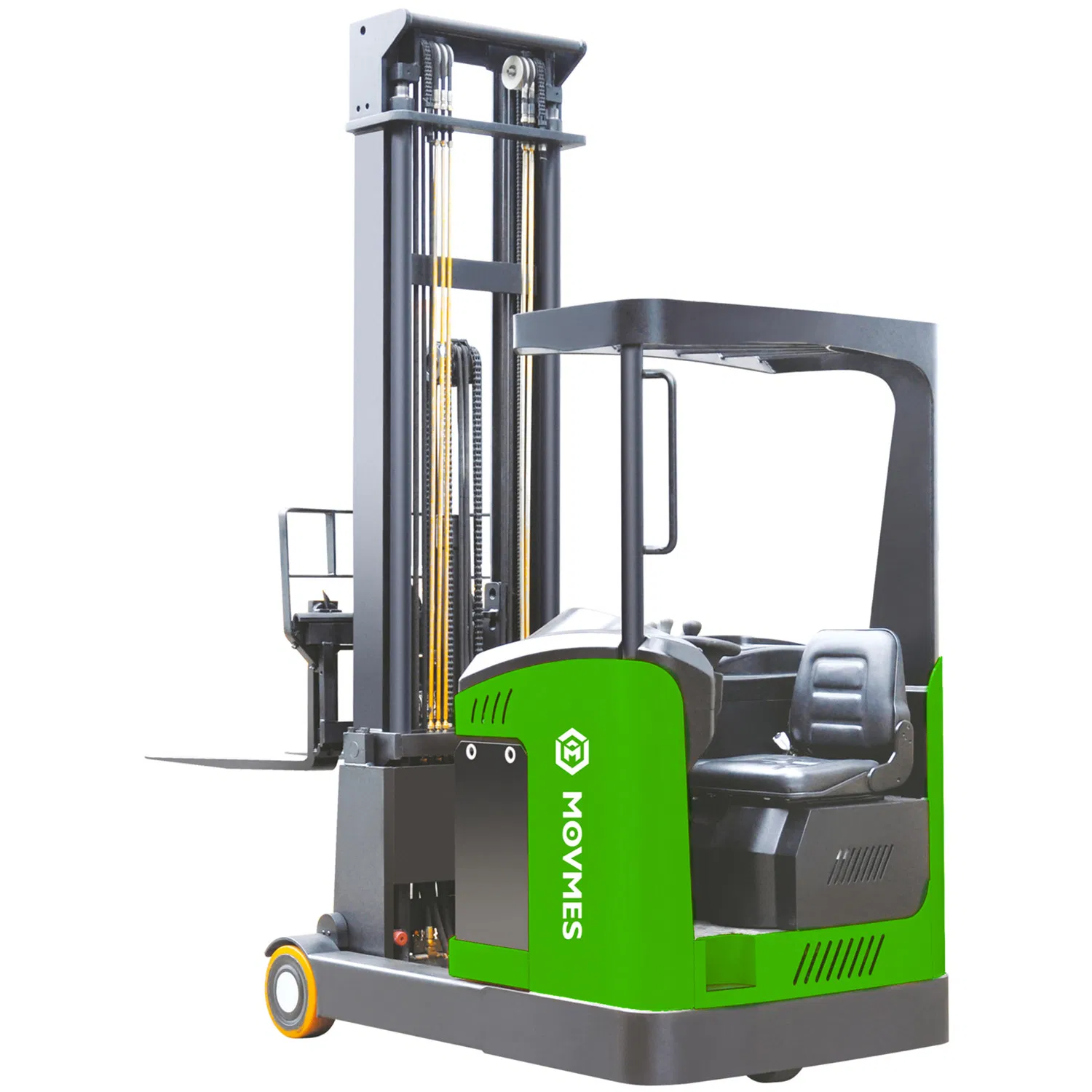

High-Performance Electric Reach Truck
Max lifting height 14000mm with 2000kg rated load capacity, designed for narrow aisle warehouse efficiency.
Main Configuration
- 48V AC Power System
- CURTIS Controller

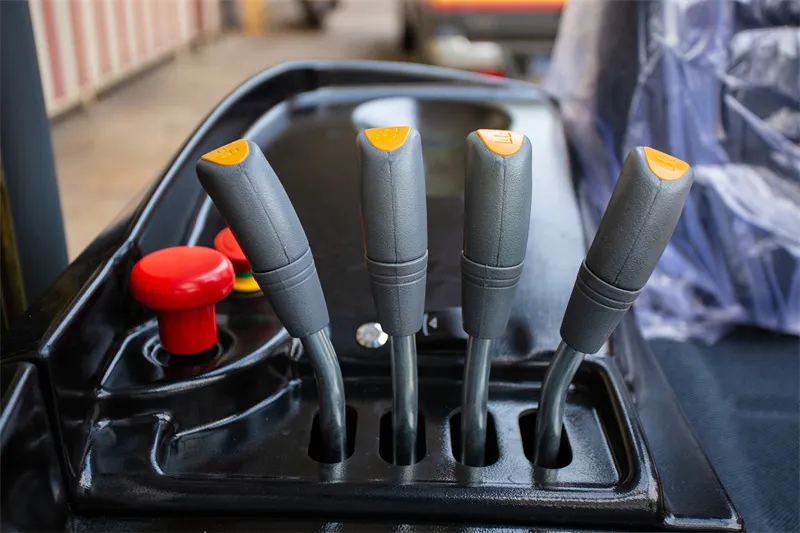

- 4 Levels Hydraulic Control

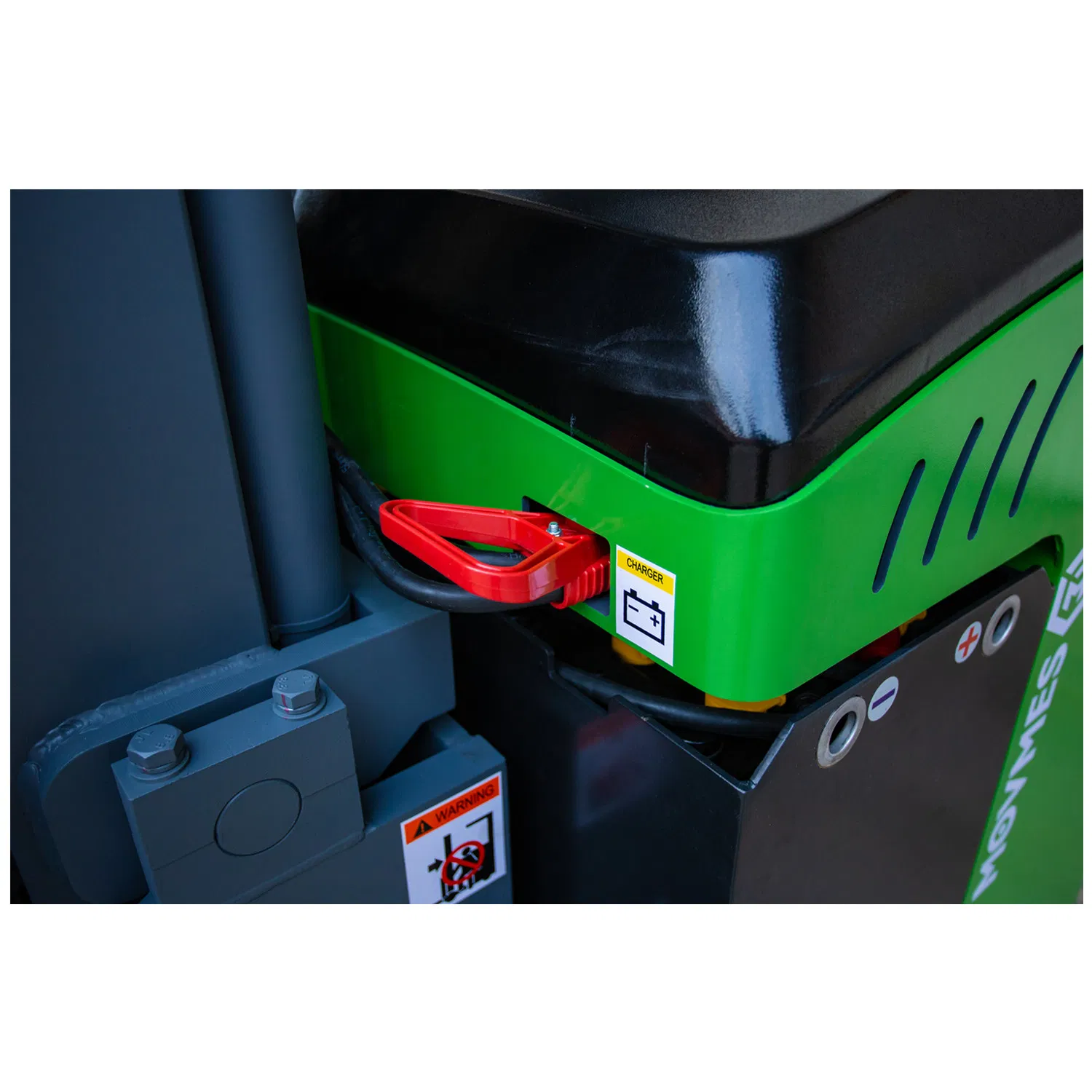

- 48V400AH Lead-Acid Battery
- 48V50A Charger
- Side Shift Function
- Electric Power Steering (EPS)
Technical Parameters
| Parameter Item |
Unit |
Specification (CQD15) |
| Capacity/rated load | kg | 1500 |
| Max. lift height | mm | 3000/5000/6200/7400/8000 |
| Load centre distance | mm | 600 |
| Turning radius | mm | 1780 |
| Travel speed (Laden/Unladen) | km/h | 8 / 8.3 |
| Lift speed (Laden/Unladen) | m/s | 0.45 / 0.36 |
| Battery voltage/capacity | V/Ah | 48 / 400 |
| Overall length | mm | 2370 |
| Overall width | mm | 1200 |
Related Equipment
Walkie electric stacker - 1.5 Ton
Electric Stacker - 2500-5600mm Height
Rider electric stacker - CURTIS Controller
Quality & Standards
📋
International Certifications: ISO9001:2008, ISO14001:2004, OHSAS18001:2007. Most products are TUV/GS/CE approved, meeting ISO3691-1, EN1175-1, and EN16307-1 standards.
Packing and Delivery

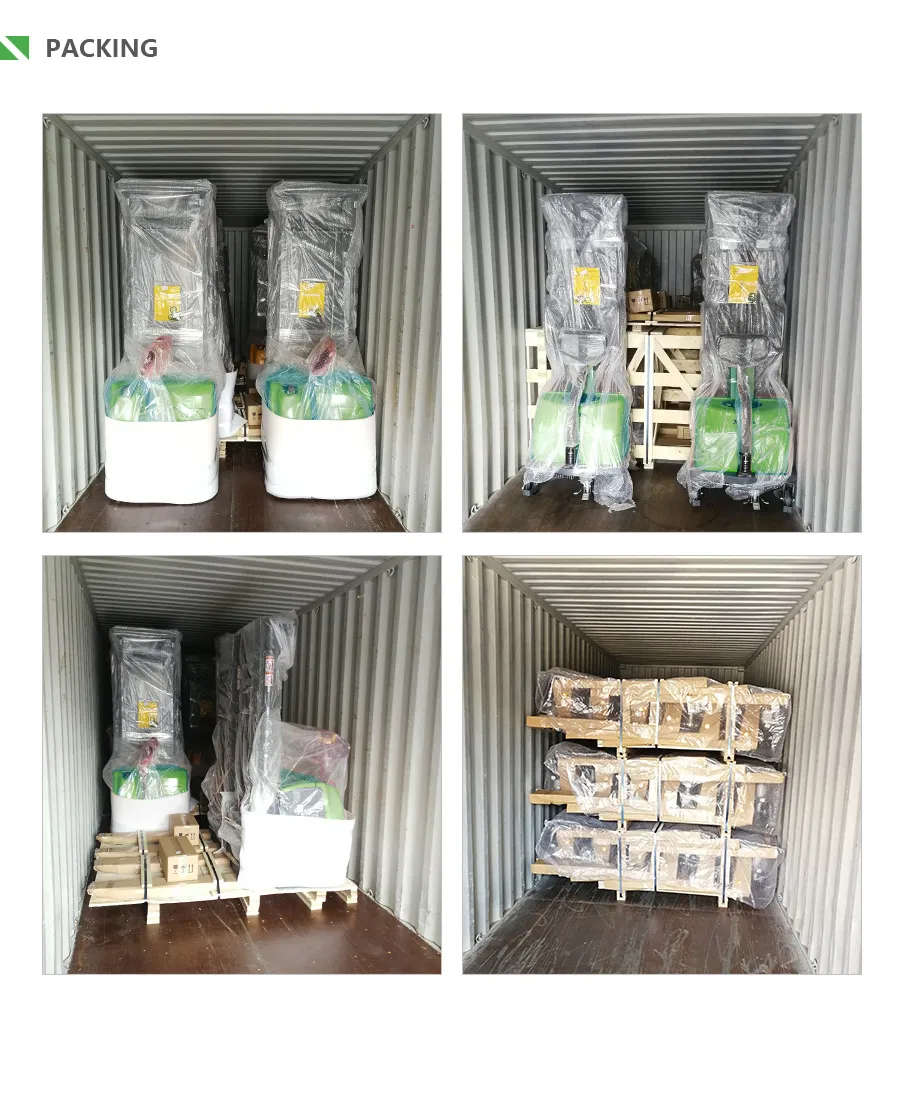

Products are carefully packaged according to delivery requirements. Standard production time is typically 30-45 days following the initial payment. Photos and videos are provided prior to shipment for quality assurance.
Frequently Asked Questions
What is the continuous working time for the electric truck?
The continuous working time is approximately 3-6 hours, depending on the battery volume and intensity of work. Full charging typically takes 3-6 hours.
What are the charger specifications?
We provide chargers compatible with 48V400Ah Lead-acid batteries. Power plugs can be customized to USA, UK, Australia, or European standards.
Are customized products (OEM/ODM) available?
Yes, we have been professionally developing and producing warehouse logistics equipment since 1985 and offer extensive OEM services for world-famous brands.
How long is the product warranty?
We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided free of charge.
What is the maximum lift height of this series?
The electric reach truck series can achieve a maximum lifting height of up to 14,000mm, suitable for high-rack warehouse storage.
What kind of controller system is used?
The trucks are equipped with industry-leading CURTIS controllers and AC motor systems to ensure stable and efficient performance.
