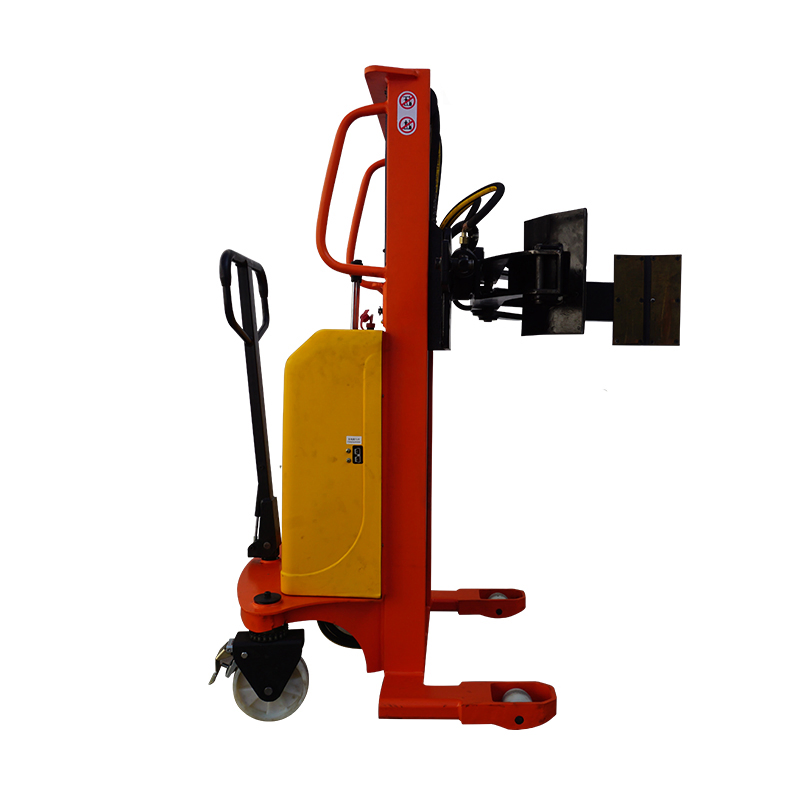

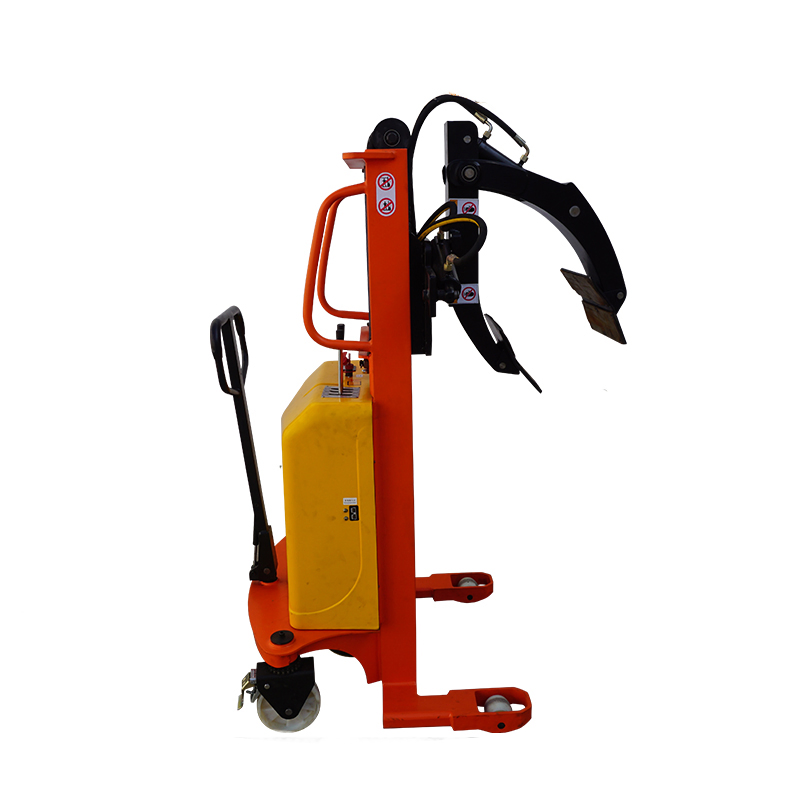

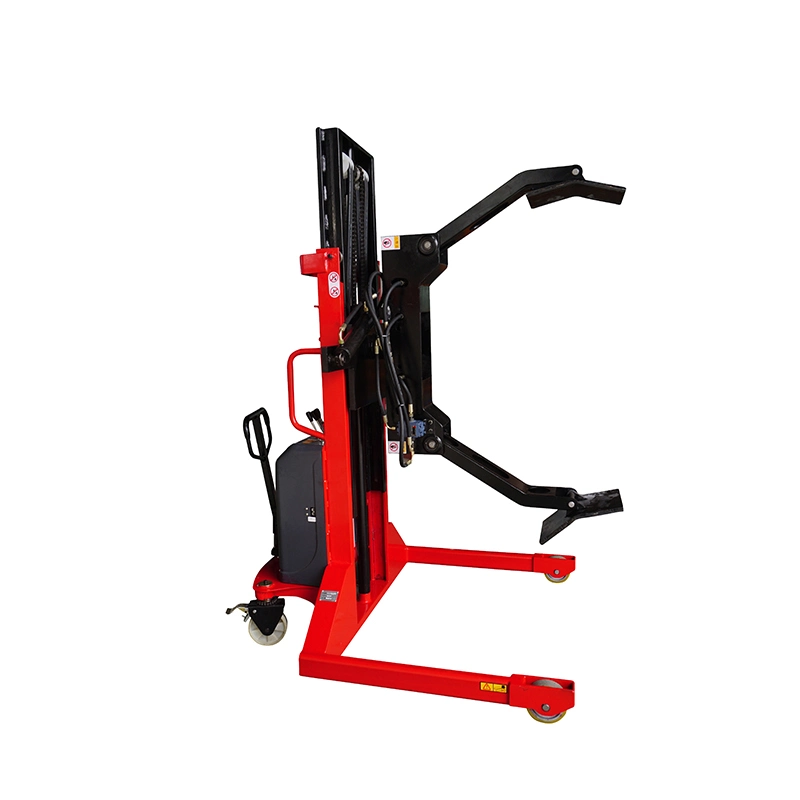

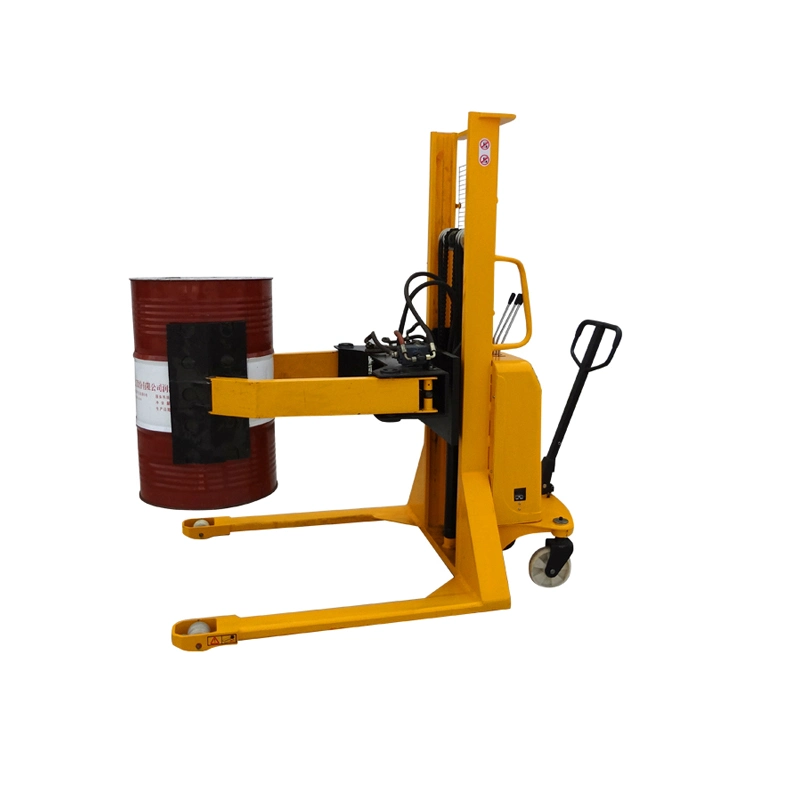

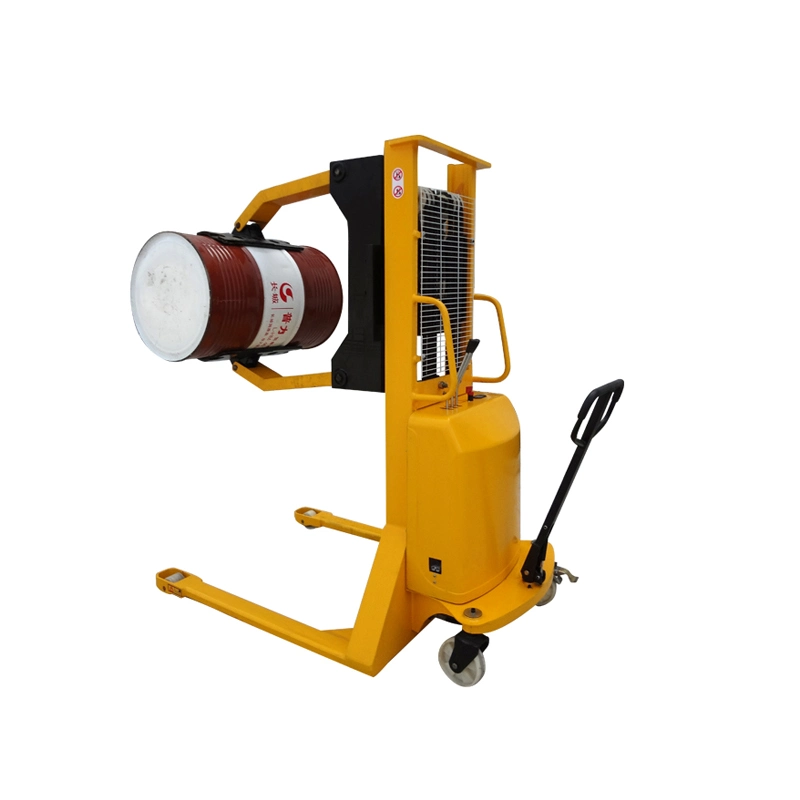

500kg Battery Operation Paper Roll Semi-Electric Forklift Stacker
500kg Battery Operation Paper Roll Semi-Electric Forklift Stacker
500kg Battery Operation Paper Roll Semi-Electric Forklift Stacker
500kg Battery Operation Paper Roll Semi-Electric Forklift Stacker
500kg Battery Operation Paper Roll Semi-Electric Forklift Stacker
1 / 5
500kg Battery Operation Paper Roll Semi-Electric Forklift Stacker
500kg Battery Operation Paper Roll Semi-Electric Forklift Stacker
500kg Battery Operation Paper Roll Semi-Electric Forklift Stacker
500kg Battery Operation Paper Roll Semi-Electric Forklift Stacker
500kg Battery Operation Paper Roll Semi-Electric Forklift Stacker

500kg Battery Operation Paper Roll Semi-Electric Forklift Stacker

Customization: Available
Cab Location: Adjustable
Type: Semi Electric Paper Roll Lifter
Send Inquiry

Product Description

Basic Specifications
Model NO.
CTS0525-500Z-P27
Power
AC Motor
Load Capacity
≤1T
Fuel
Electric
Load Center
350mm
Lift Height
2500mm
Condition
New
Transport
Nude Package
Origin
China
HS Code
8427209000
Capacity
3000 Pieces/Year
Technical Comparison
Model CTS0216-500Z CTS0525-500Z CTS0516-1000Z CTS0530-1000Z
Order Number5.010015.010025.010035.01004
Capacity(kg)2005005001000
Lift max.height(mm)1600250016003000
Minimum clamp height520520520520
Clamp width (mm)635-950635-9501135-14501135-1450
Clamp length (mm)82082012201220
Paper roll diameter¢200-500mm¢200-500mm¢600-1000mm¢600-1000mm
Load center (mm)350350700700
Weight (Kg)498550560640
Over size(mm) L*W*H1700*950*20001700*950*17801900*1500*20001900*1500*1780
Channel request(mm)1900Turn1900Turn2100Turn2100Turn
Battery (V/Ah)12/120
Lifting motor (Kw)1.6
Product Display

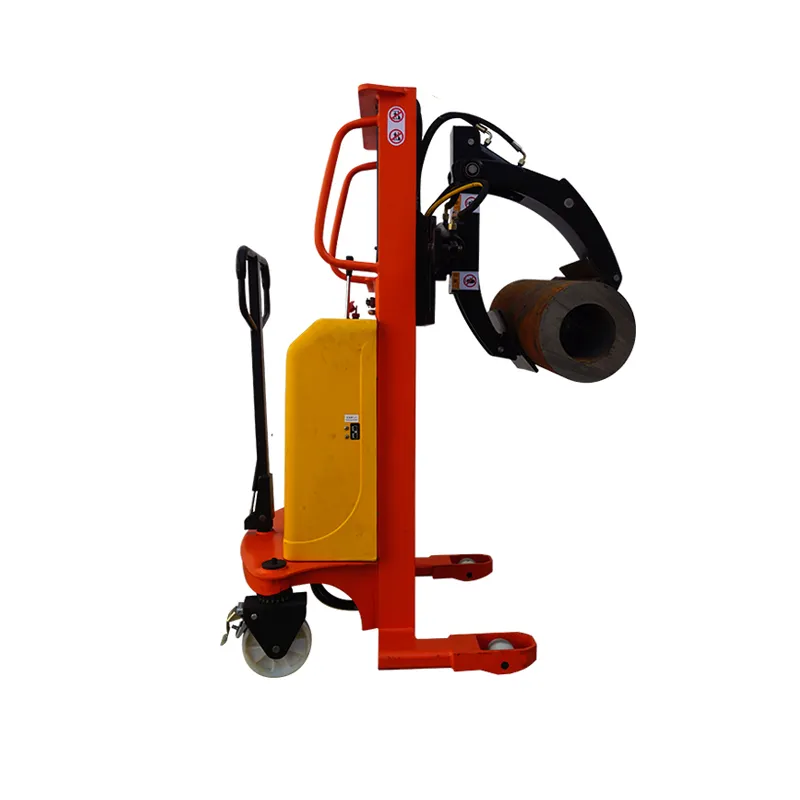

Paper Roll Stacker

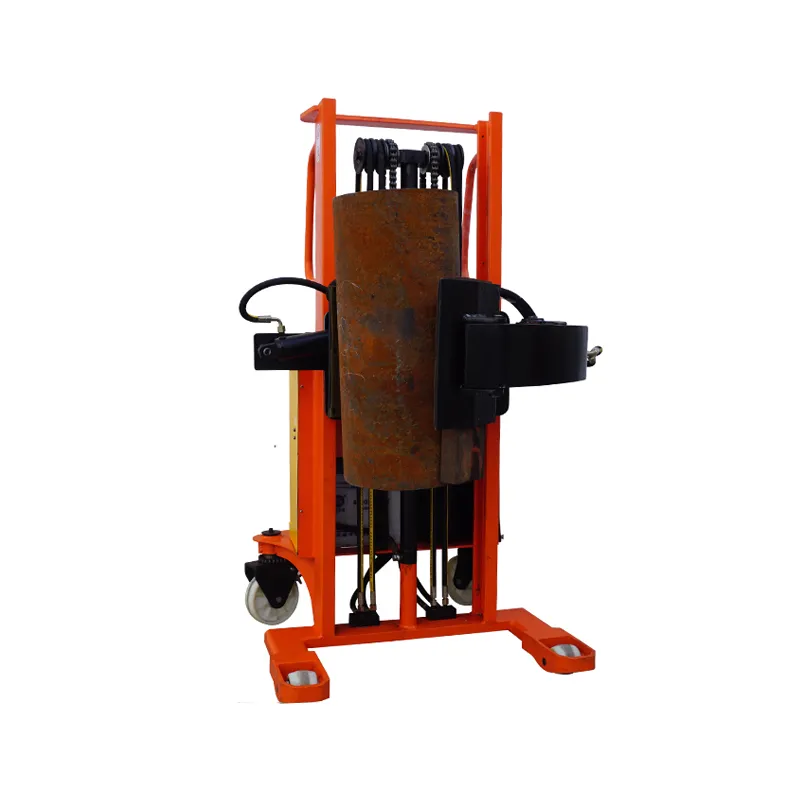

Semi-Electric Forklift

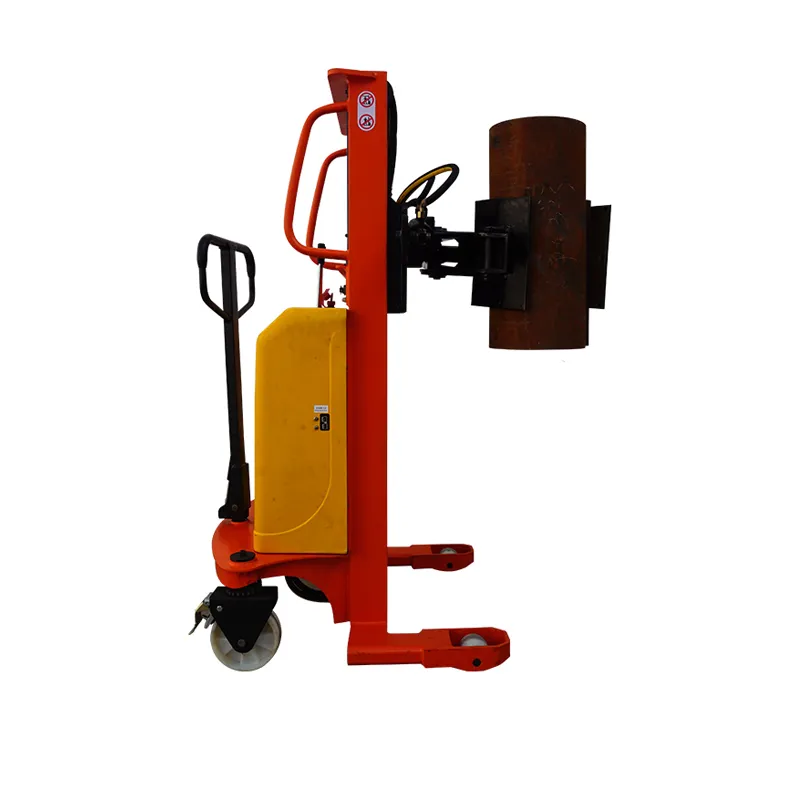

Battery Operation Stacker

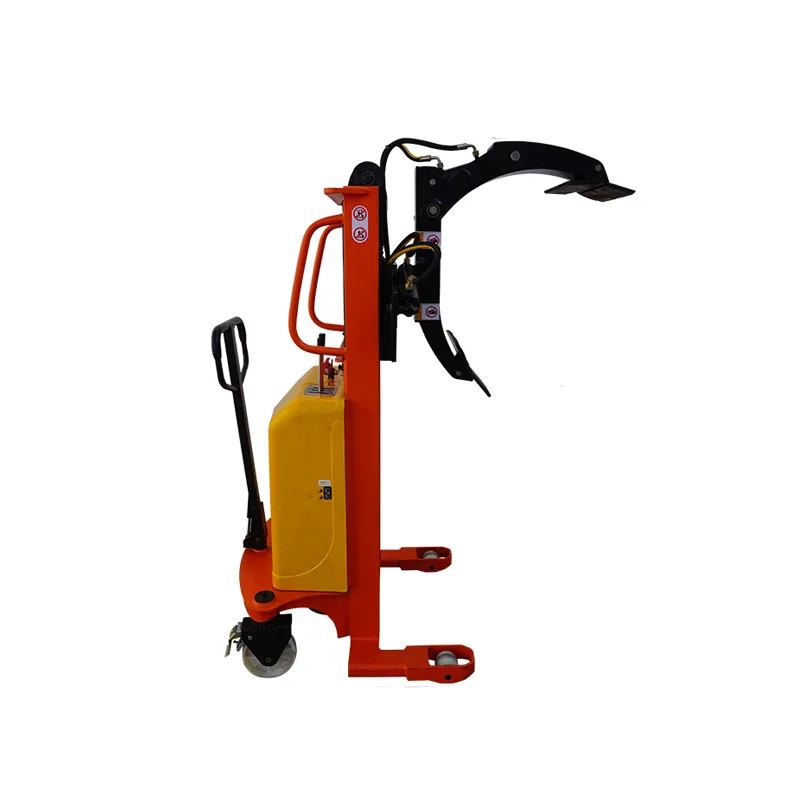

Lifting Equipment
Material Handling
Industrial Stacker
Key Features
1Use formed C steel mast for high bending strength.
2Wearing-resistant nylon wheel with brake to ensure no sliding.
3Wide view mast with security fence to protect the operator.
4Ideal for paper fabrication, packaging, printing, and textiles.
5Strong lifting motor with compact size and low noise.
6Superior chain bearing performance for long-term use.
Frequently Asked Questions
What is the main application of this semi-electric stacker?
This stacker is widely used in industries such as paper fabrication, packaging, printing, and textiles for handling paper rolls and similar materials.
What are the safety features included?
It is equipped with a wide-view mast security fence to protect the operator's hands and wearing-resistant nylon wheels with brakes to prevent accidental sliding.
What type of battery and charger does it use?
The system operates on a 12V/120Ah battery and comes with a 12V/15A charger.
Can it handle different diameters of paper rolls?
Yes, depending on the model chosen, it can handle paper roll diameters ranging from ¢200-500mm up to ¢600-1000mm.
What is the lifting capacity and height?
The lifting capacity ranges from 200kg to 1000kg, with maximum lifting heights available between 1600mm and 3000mm depending on the specific model.
How much space is needed for the machine to turn?
The channel request for turning is between 1900mm and 2100mm, making it suitable for standard warehouse aisles.
