Basic Info.
Fork Size
910/1150mm Length
Application
Indoor, Outdoor Warehouse, Supermarket, etc
Certification
CE, ISO9001, ISO14001

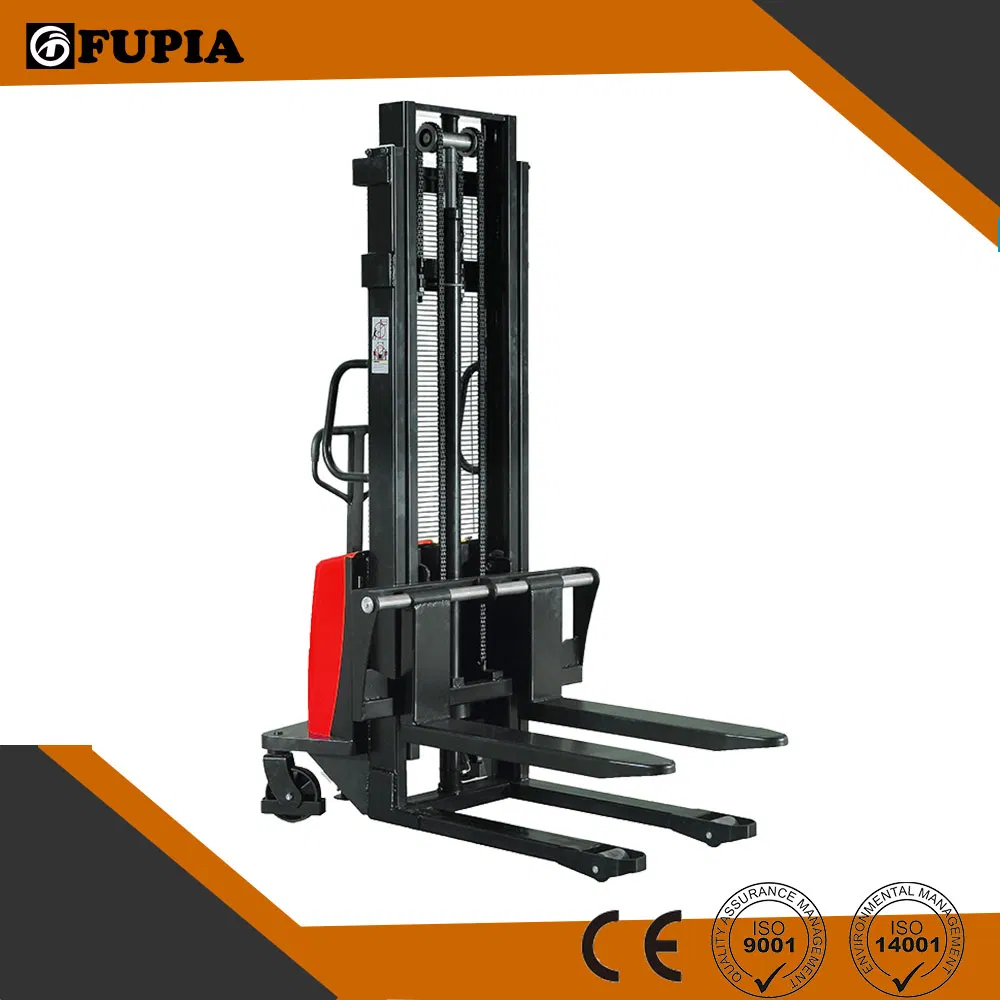

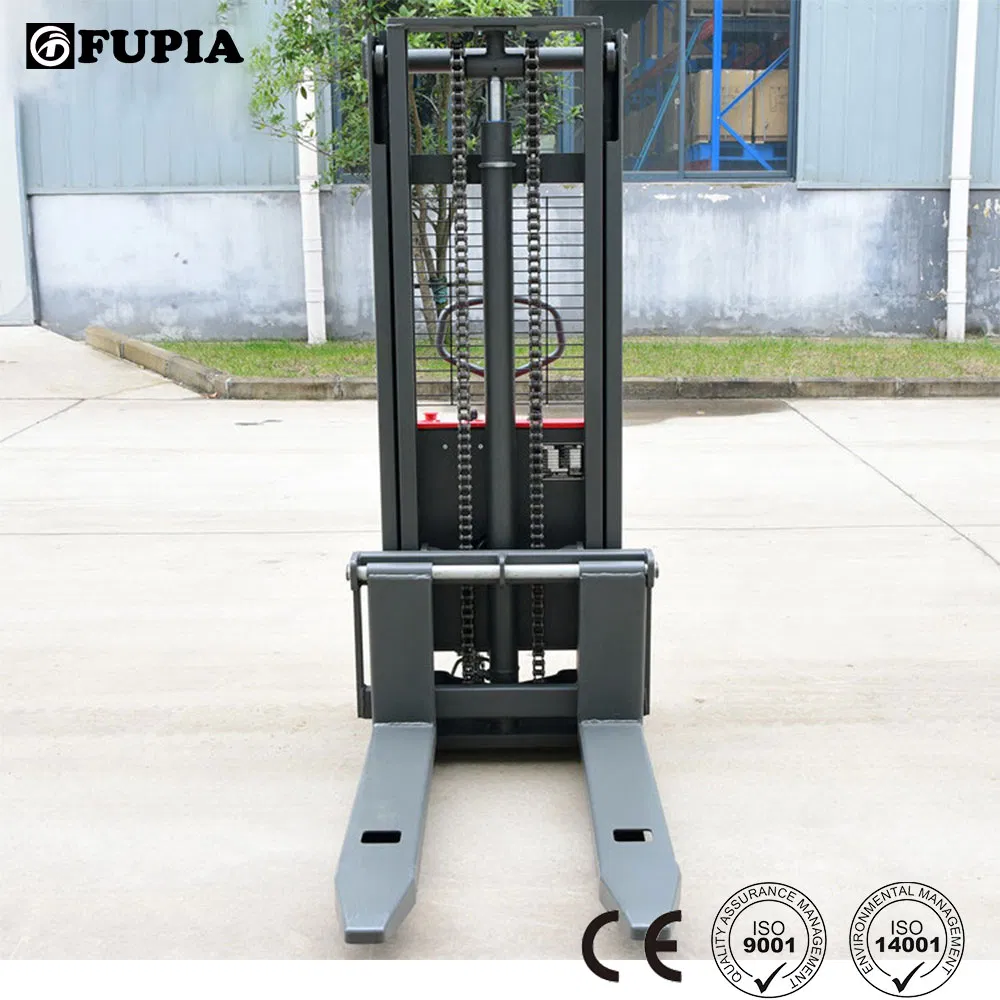

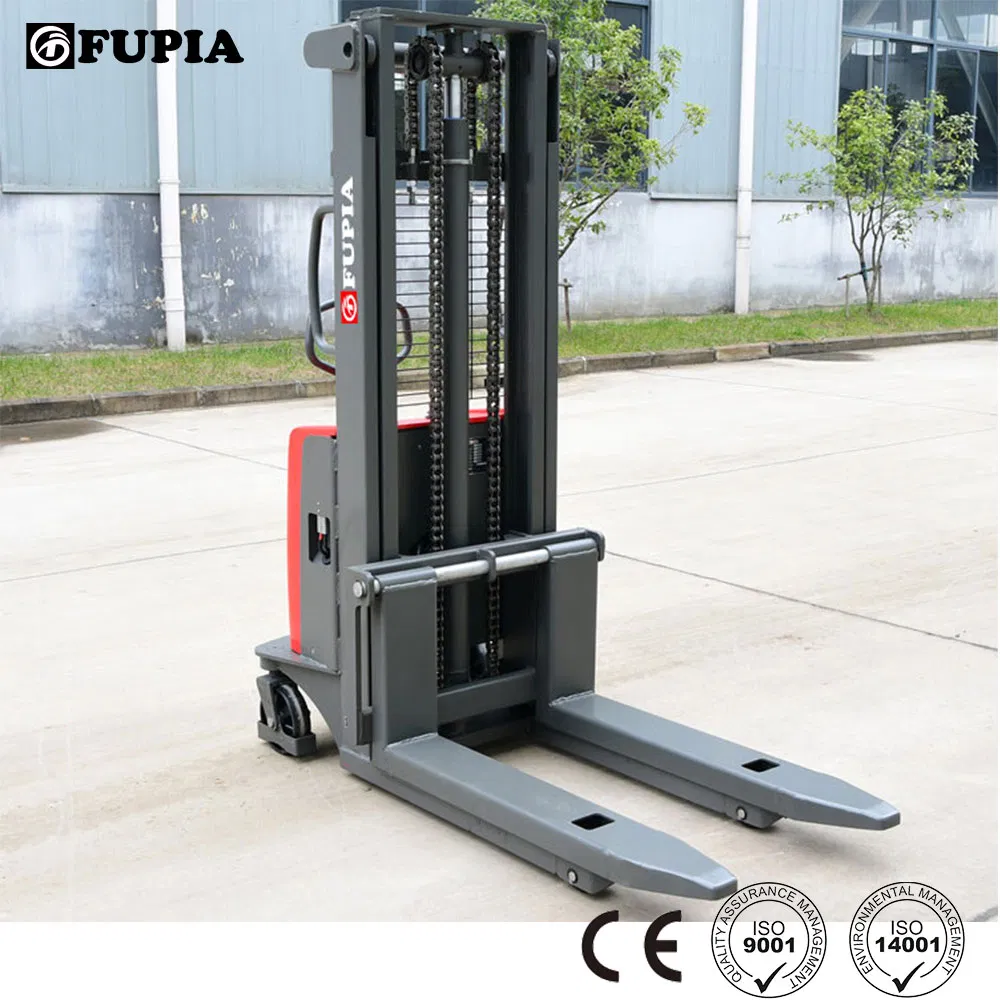

Product Description
Semi-electric stackers are designed for warehouse material handling in industrial and manufacturing environments. These models combine manual traction and electric elevation, providing an ideal solution for moving medium-light loads efficiently.
- Masts designed to maximize view of the forks for safe maneuvering.
- Durable mast rollers and wire mesh safety guard.
- Explosion-proof valve prevents sudden drop of forks.
- Rugged steel construction with heavy-duty floor lock.
- Wide straddle legs ensure high stability and durability.
- Over-discharge protection device to prolong battery life.
- Oil-reflow valve for enhanced operational safety.

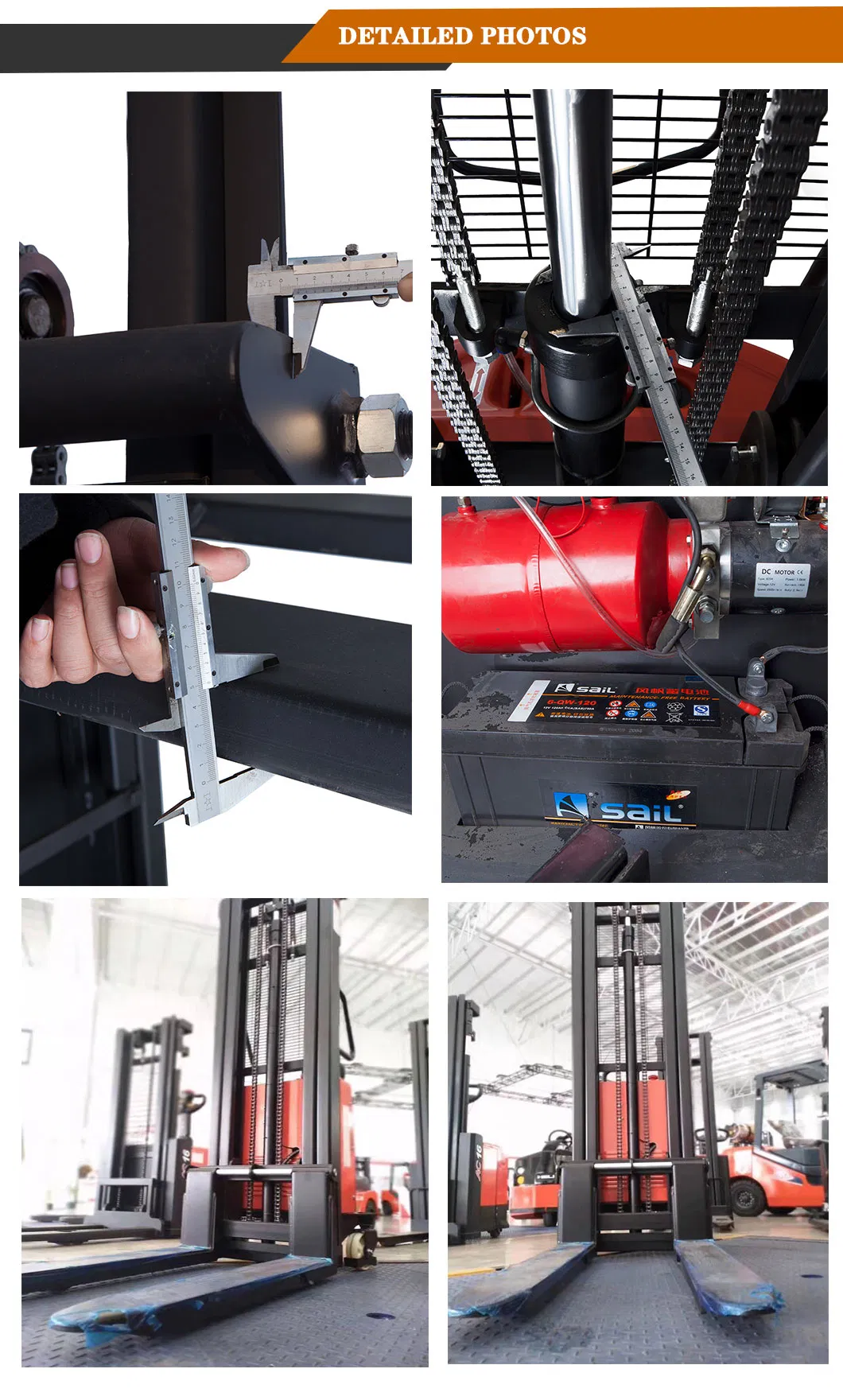

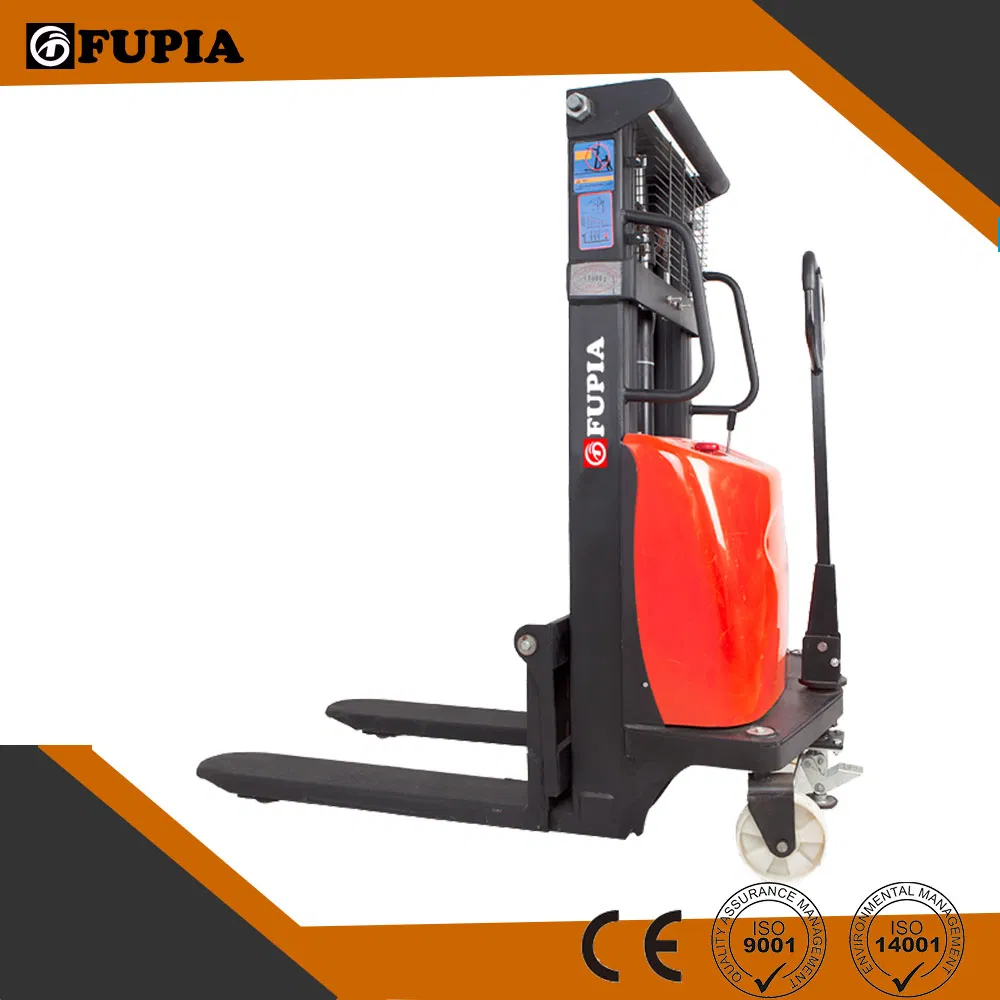

Detailed Photos
Product Parameters
| No. |
Item |
Unit |
SES10 |
SES15 |
SES20 |
| 3 | Power Type | - | Electronic |
| 4 | Rated Load Capacity | Q(kg) | 1000 | 1500 | 2000 |
| 5 | Load Centre | C(mm) | 480 |
| 6 | Lift Height | H(mm) | 1600/2000/2500/3000 |
| 7 | Fork Length | mm | 910(1150) |
| 8 | Fork Adj. Width | mm | 320-680 |
| 9 | Overall Length | mm | 1585 |
| 10 | Overall Width | mm | 1045 |
| 11 | Turning Radius | mm | 1480 |
| 12 | Lifting Speed | mm/sec | 120/100 |
| 15 | Battery | V/AH | 12/120 |
Certifications & Packaging

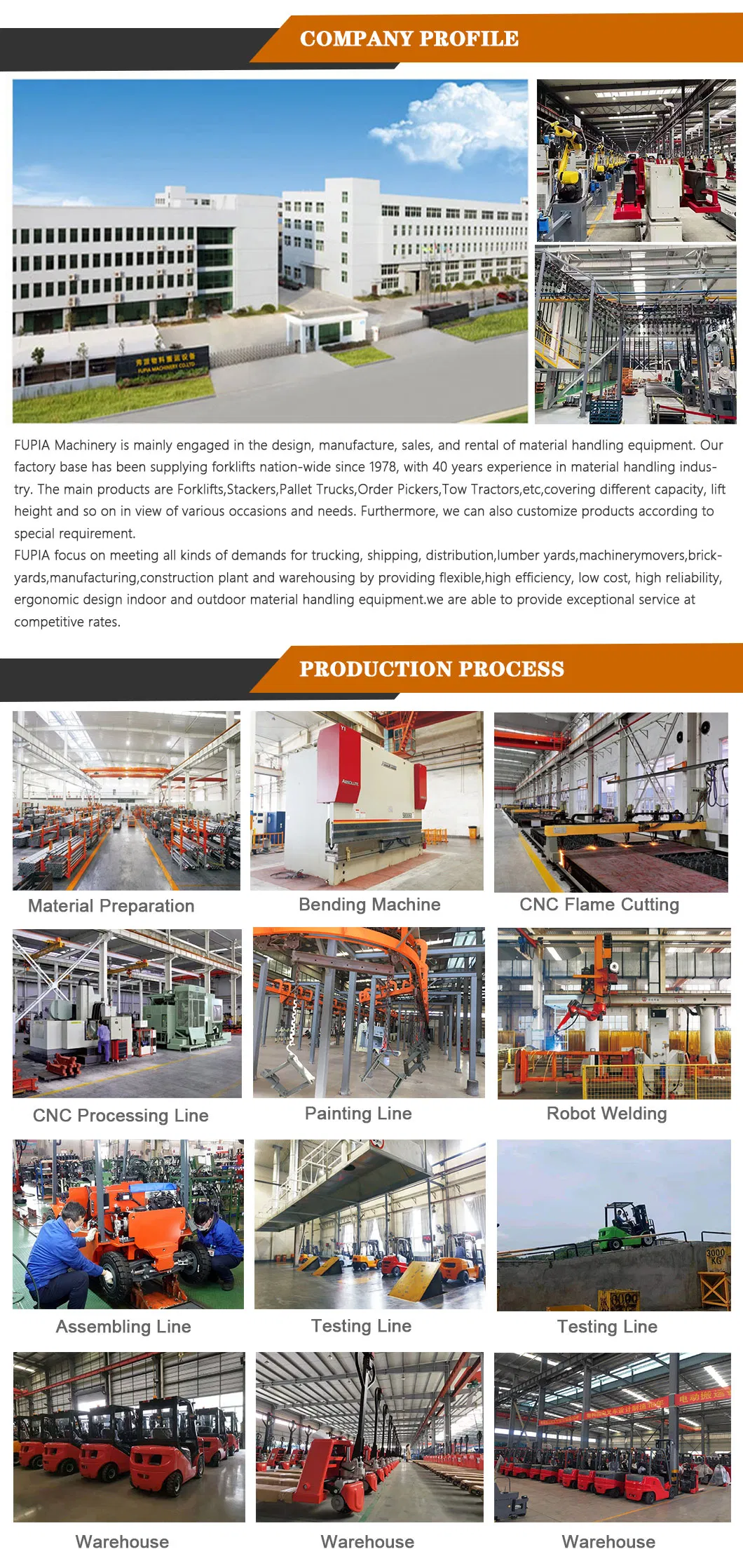

Production & Service

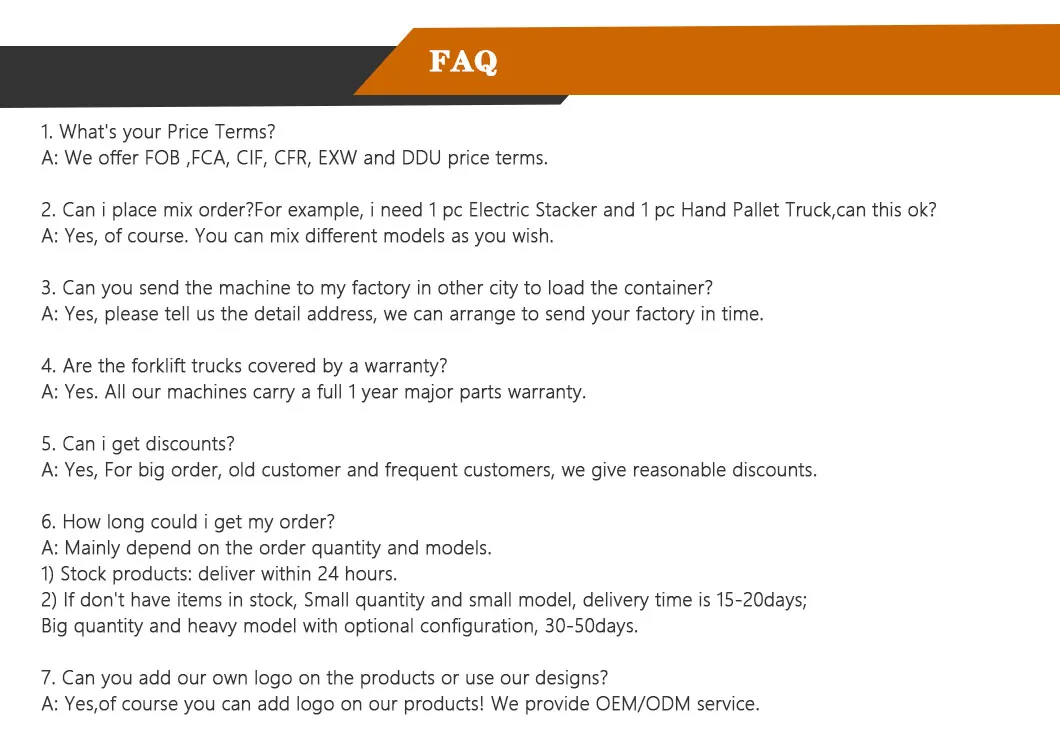

FAQ
Q1: What is the main difference between a semi-electric and a full electric stacker?
A semi-electric stacker features electric lifting for the forks but requires manual pushing and pulling for horizontal movement. A full electric stacker uses motors for both lifting and traveling.
Q2: Can the fork width be adjusted for different pallet sizes?
Yes, the fork adjustable width ranges from 320mm to 680mm, making it versatile for various pallet types.
Q3: What safety features are included for the operator?
It includes an explosion-proof valve to prevent sudden drops, a wire mesh safety guard on the mast, and a heavy-duty floor lock for stability during lifting.
Q4: How long does the battery typically last on a single charge?
The 12V/120AH battery is designed for a standard work shift. It features an over-discharge protection device to help maintain long-term battery health.
Q5: Is this stacker suitable for outdoor use?
While it can be used outdoors on flat, hard surfaces, it is primarily designed for indoor warehouse, supermarket, and industrial environments.
Q6: What maintenance is required for the hydraulic system?
Regular checks of the oil-reflow valve and hydraulic fluid levels are recommended to ensure smooth and safe lifting operations.
