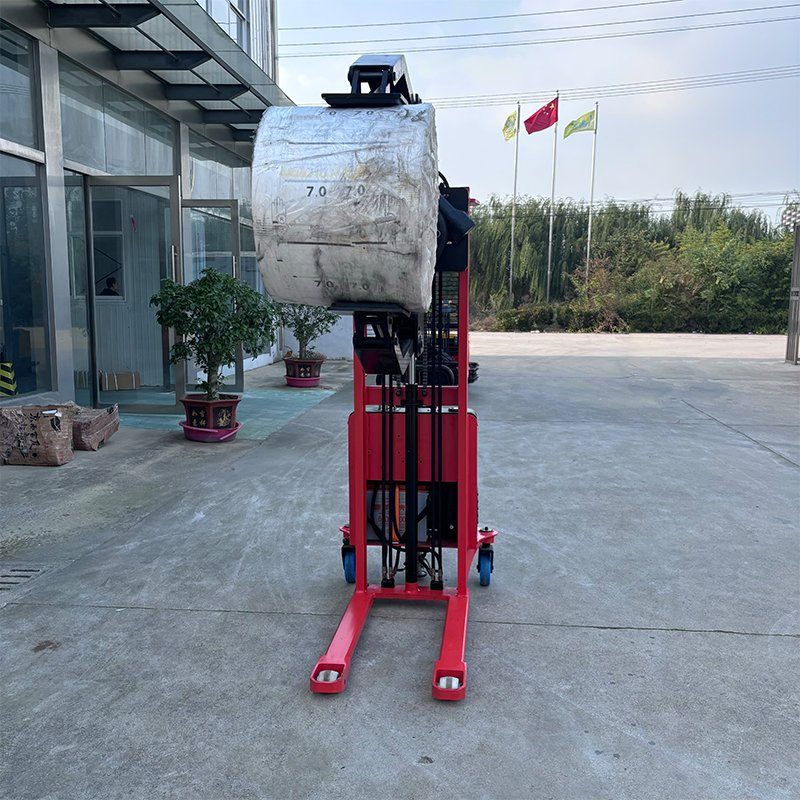

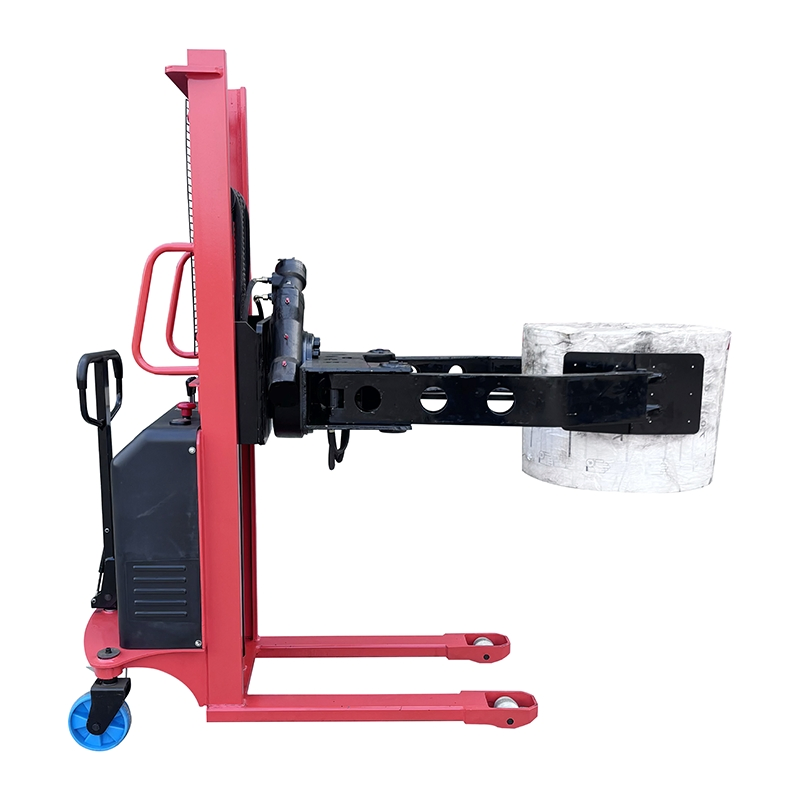

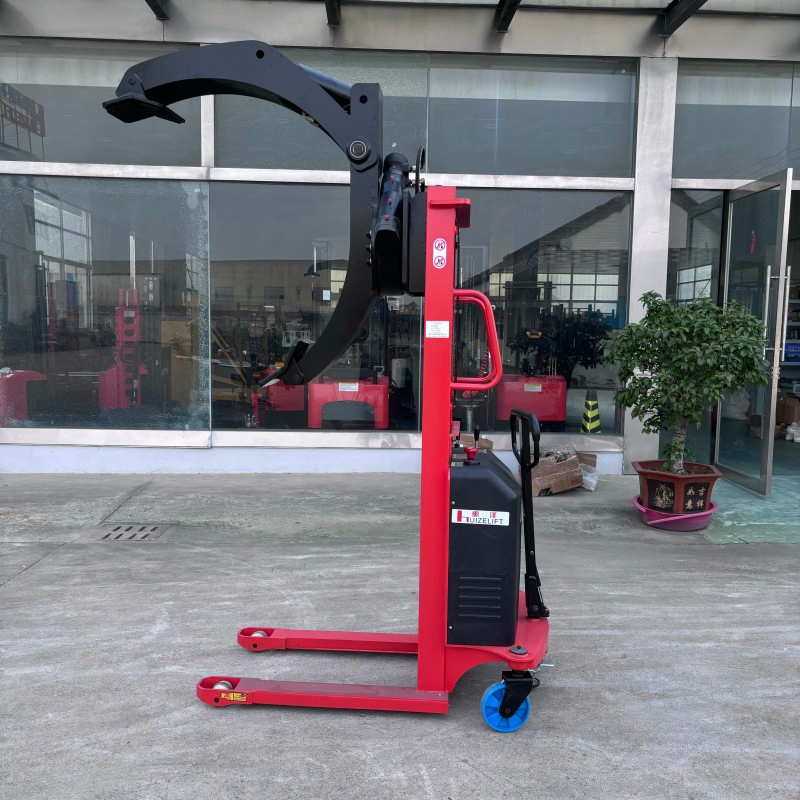

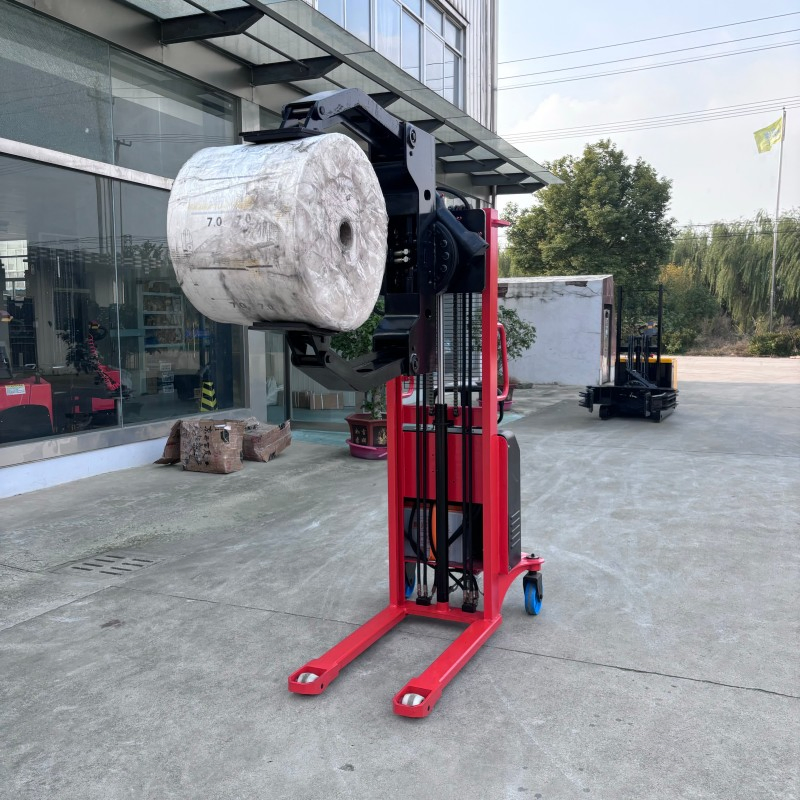

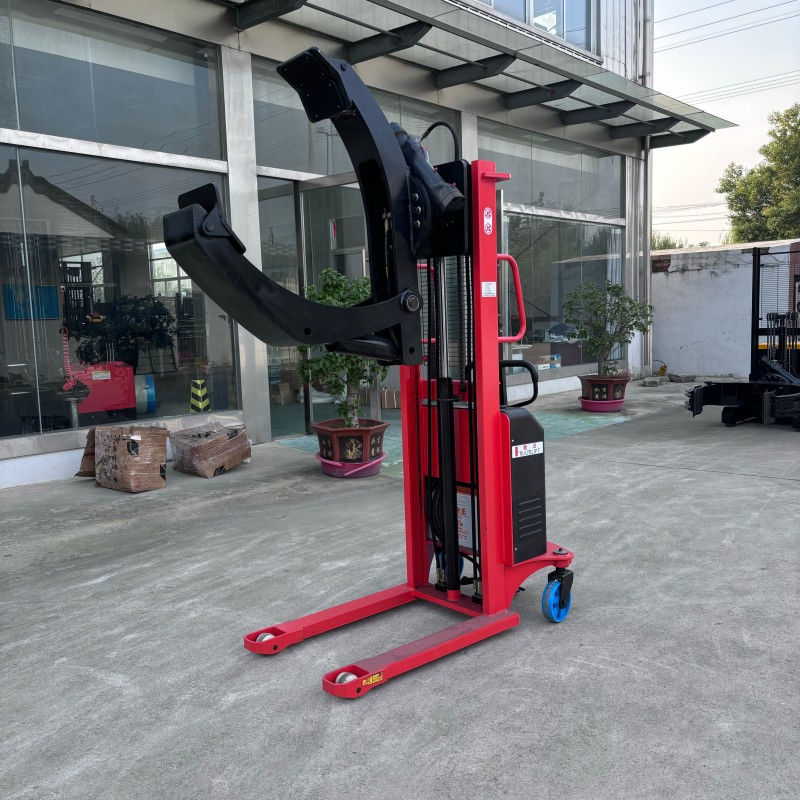

Rotates 360 Degrees Semi Electric Drum Stacker Roll Lifter with Roll Clamp
Rotates 360 Degrees Semi Electric Drum Stacker Roll Lifter with Roll Clamp
Rotates 360 Degrees Semi Electric Drum Stacker Roll Lifter with Roll Clamp
Rotates 360 Degrees Semi Electric Drum Stacker Roll Lifter with Roll Clamp
Rotates 360 Degrees Semi Electric Drum Stacker Roll Lifter with Roll Clamp
1 / 5
Rotates 360 Degrees Semi Electric Drum Stacker Roll Lifter with Roll Clamp
Rotates 360 Degrees Semi Electric Drum Stacker Roll Lifter with Roll Clamp
Rotates 360 Degrees Semi Electric Drum Stacker Roll Lifter with Roll Clamp
Rotates 360 Degrees Semi Electric Drum Stacker Roll Lifter with Roll Clamp
Rotates 360 Degrees Semi Electric Drum Stacker Roll Lifter with Roll Clamp

Rotates 360 Degrees Semi Electric Drum Stacker Roll Lifter with Roll Clamp

After-sales Service: Free Parts Lifetime
Warranty: 1 Years
Type: Stacker
Send Inquiry

Product Description

Basic Specifications
Model NO.
CTS0525-500Z-B-2
Power
DC Motor
Load Capacity
200kg-500kg
Fuel
Semi Electric
Lift Height
1.6m-3m
Load Center
500mm
Service Brake
Foot Brake
Certificate
CE, ISO, TUV, GS
Paper Roll Dia.
200-500mm
HS Code
8427900000
Packaging & Delivery
Package Size
1700.00cm * 950.00cm * 1780.00cm
Gross Weight
550.000kg
Transport Package
Wooden Pallet
Product Description

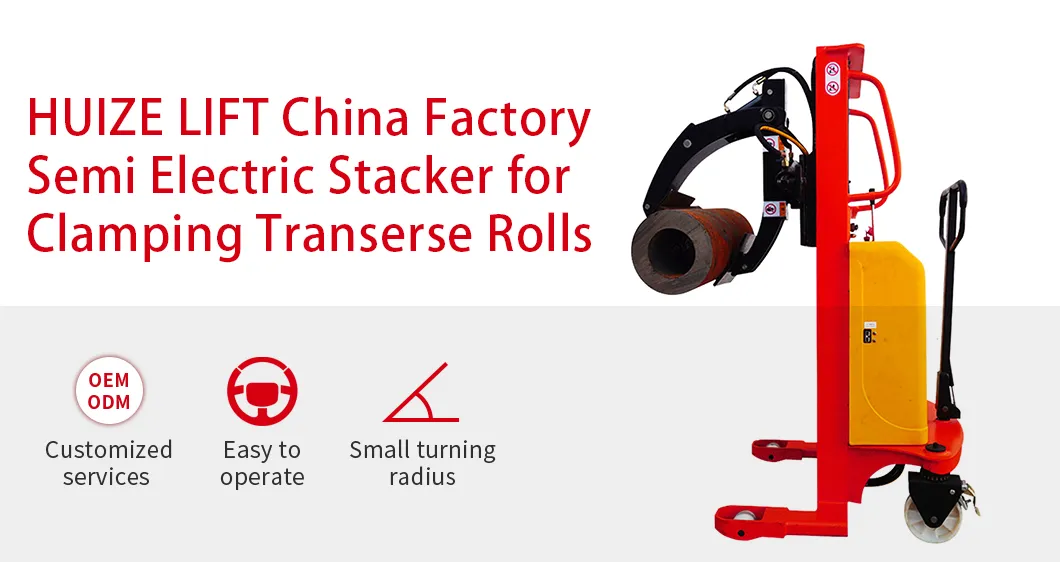

Semi Electric Drum Stacker Roll Lifter with Clamp Stacker Operation Technical Details
Model CTS0216-500Z-B CTS0525-500Z-B CTS0516-1000Z-B CTS0530-1000Z-B
Capacity (kg)200500500500
Lift max height (mm)1600250016003000
Clamp width (mm)635-950635-9501135-14501135-1450
Paper Roll Diameter200-500mm200-500mm600-1000mm600-1000mm
Weight (Kg)498550560640
Battery (V/Ah)12/120
Lifting motor (Kw)1.6
More Stacker Series

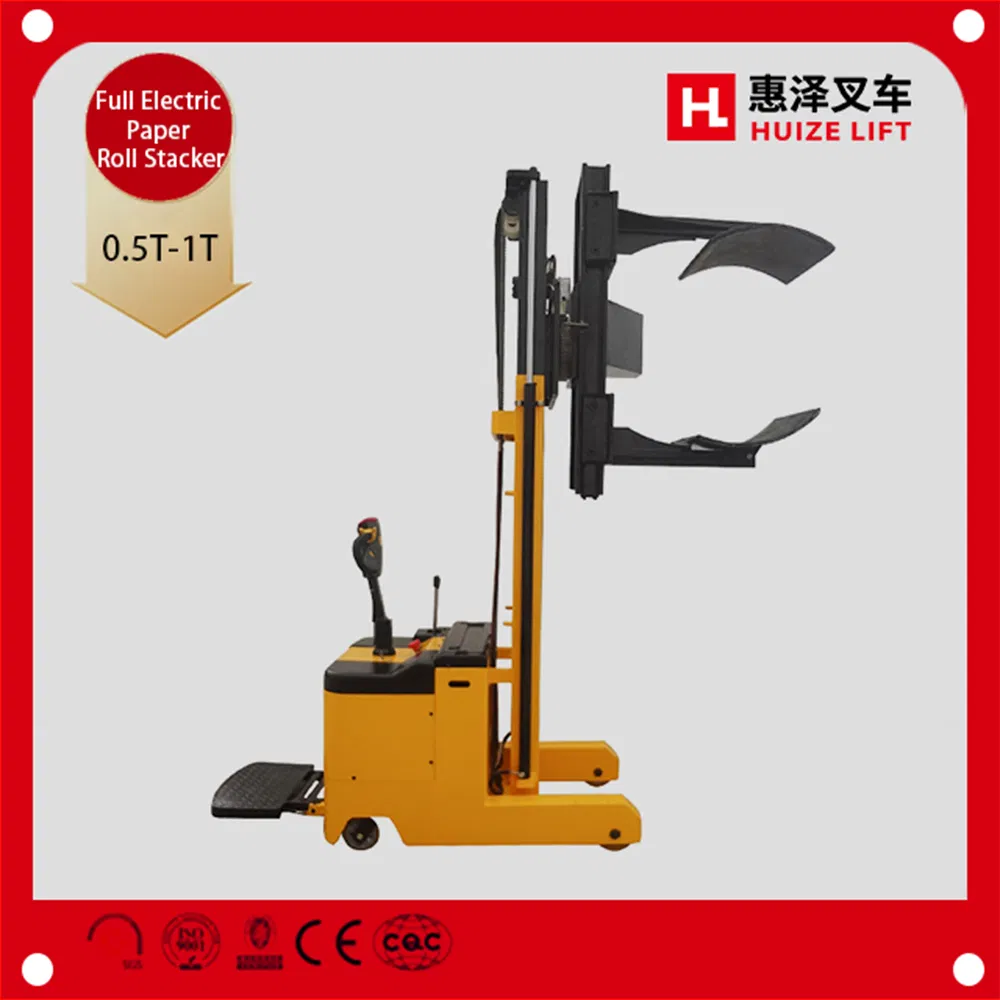

Stacker 1

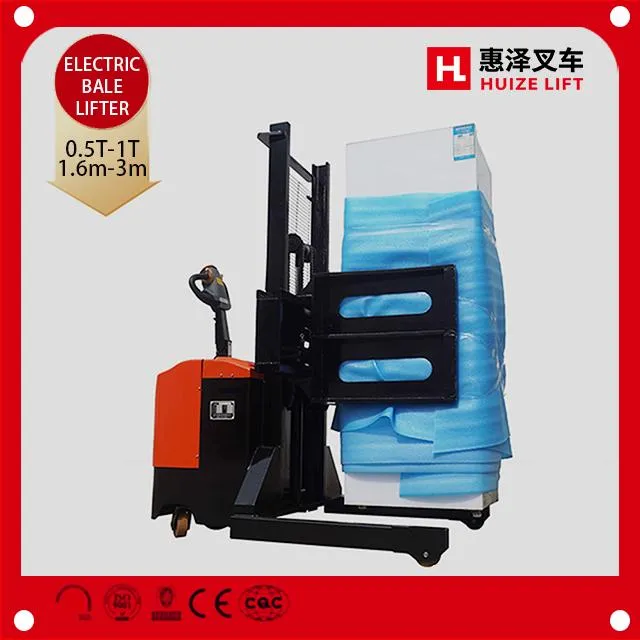

Stacker 2

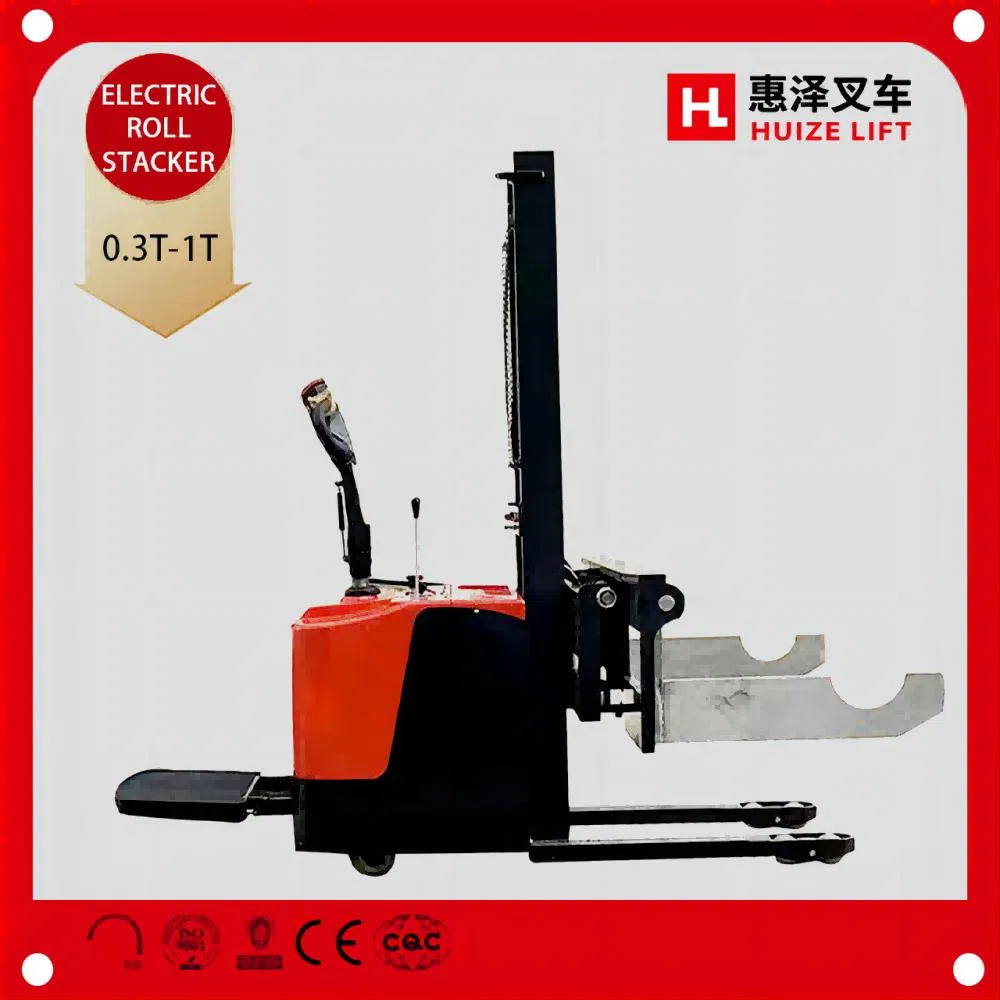

Stacker 3

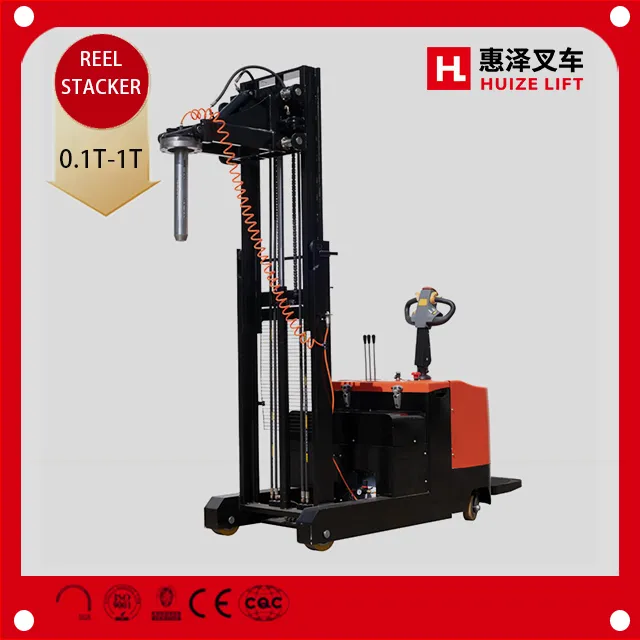

Stacker 4

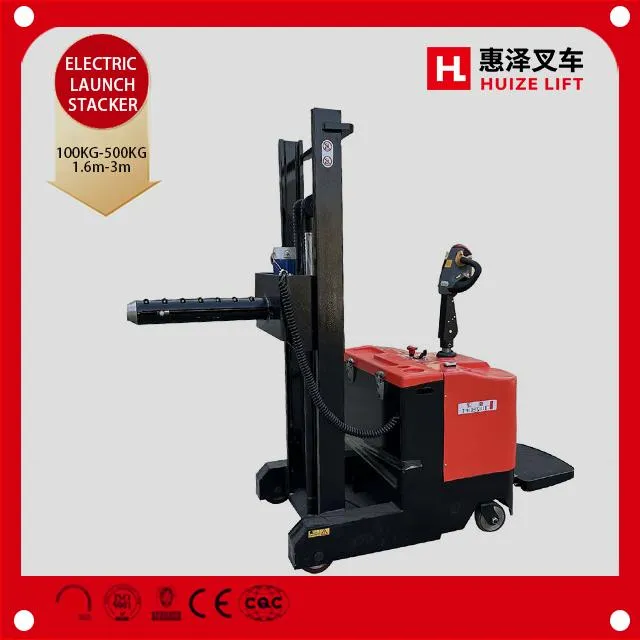

Stacker 5

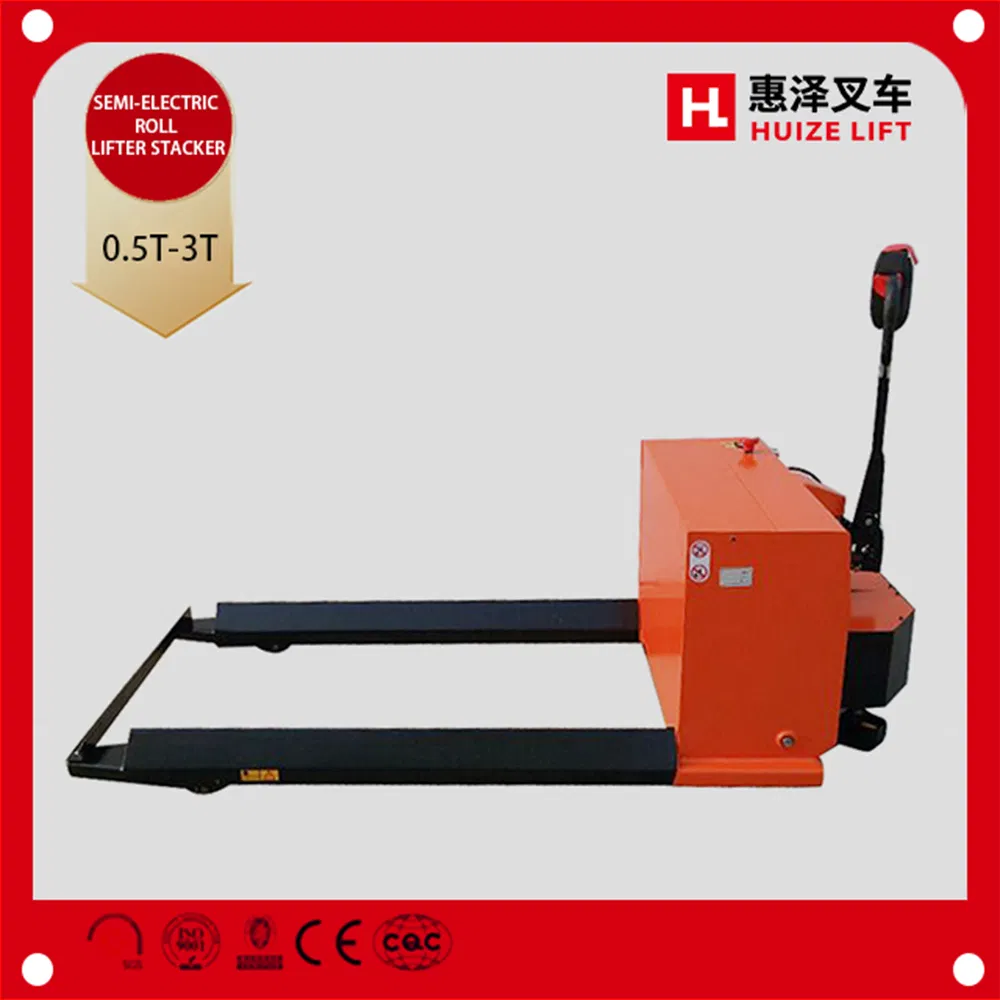

Stacker 6

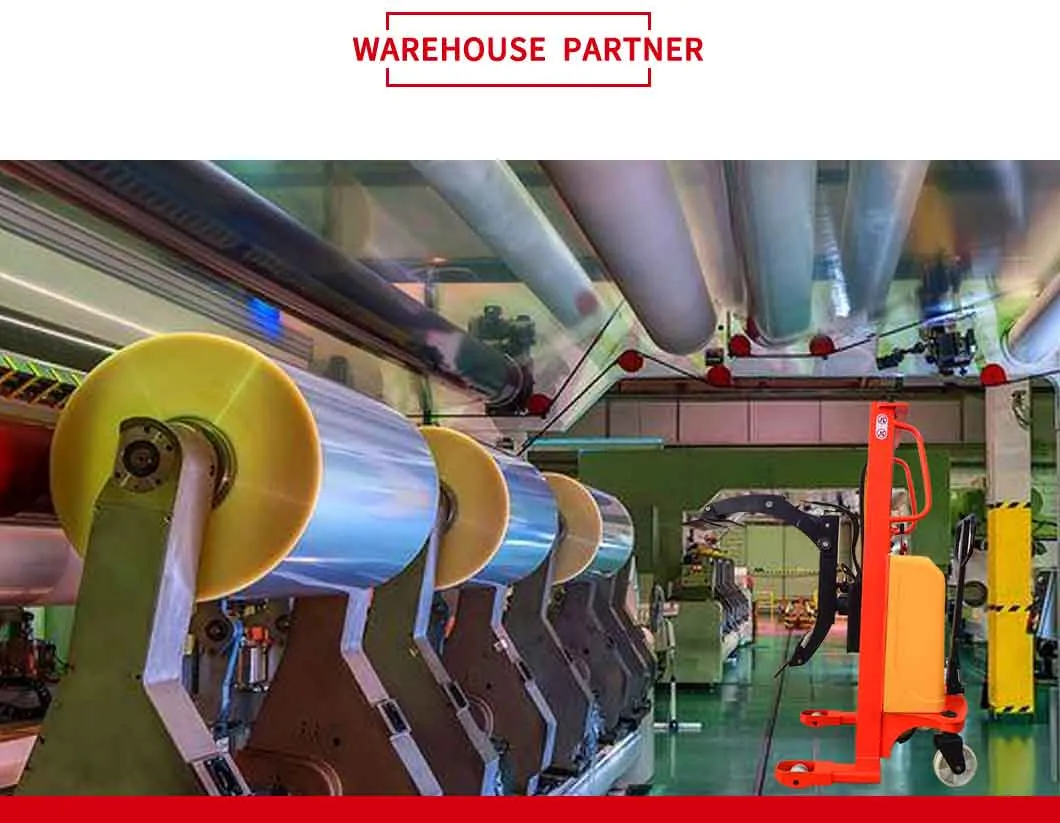

Paper Roll Stackers are essential for material handling, designed to lift, transport, and secure irregularly shaped loads. These semi-electric units feature high-strength C-beam steel gantries and 360-degree rotating clamps, making them ideal for papermaking, packaging, printing, and textile industries.

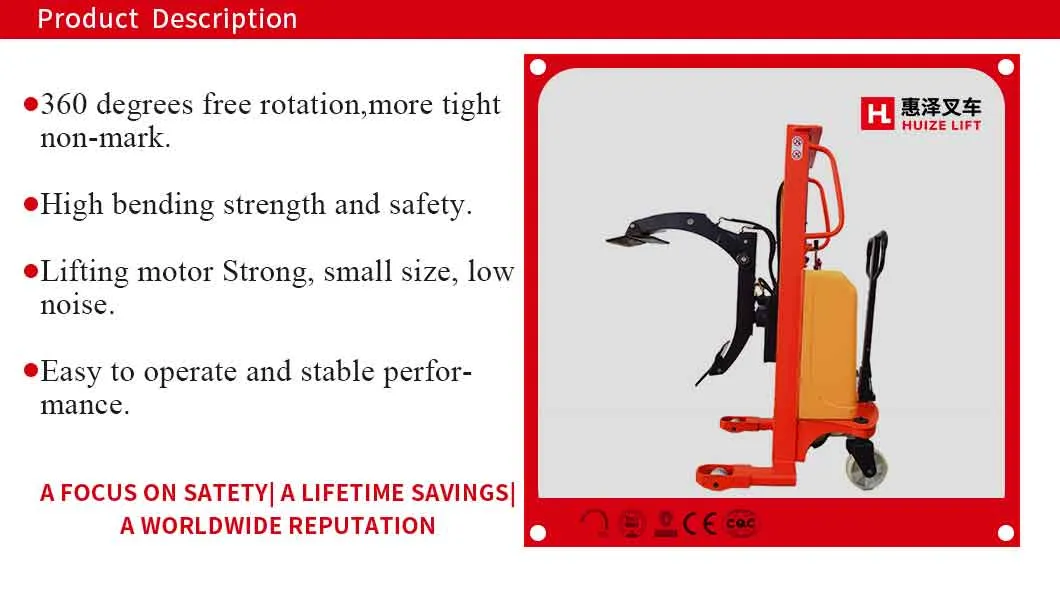

Key Advantages
✔Unique clamp arm design for gradual tightening and secure grip.
✔360° rotation capability for precise positioning.
✔Wear-resistant nylon wheels with integrated safety brakes.
✔Wide-view mast equipped with security fencing for operator safety.
✔Powerful, low-noise lifting motor (1.6Kw).
✔Excellent chain bearing performance for heavy-duty use.
Frequently Asked Questions
What is the maximum rotation angle of the clamp?
The clamp is designed to rotate a full 360 degrees and can be stopped at any angle for precise material handling.
Which industries are these stackers best suited for?
They are widely used in papermaking, packaging, printing, and textile industries for handling rolls and cylinders.
What is the power source for the lifting mechanism?
The stacker uses a 12V/120Ah battery to power a 1.6Kw DC lifting motor, providing efficient semi-electric operation.
How does the safety brake system work?
The unit is equipped with wear-resistant nylon wheels and a foot-operated service brake to ensure the machine remains stationary during loading.
Can it handle different paper roll diameters?
Yes, depending on the model, it can handle roll diameters ranging from 200mm up to 1000mm.
Is the mast designed for visibility?
Yes, it features a wide-view mast design that allows the operator to see the load clearly while maintaining safety with a protective fence.
