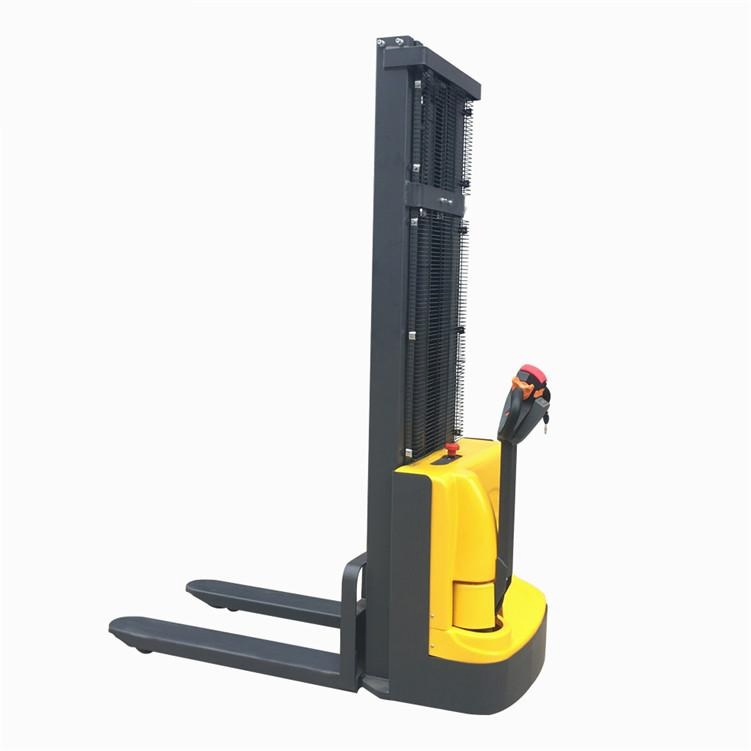

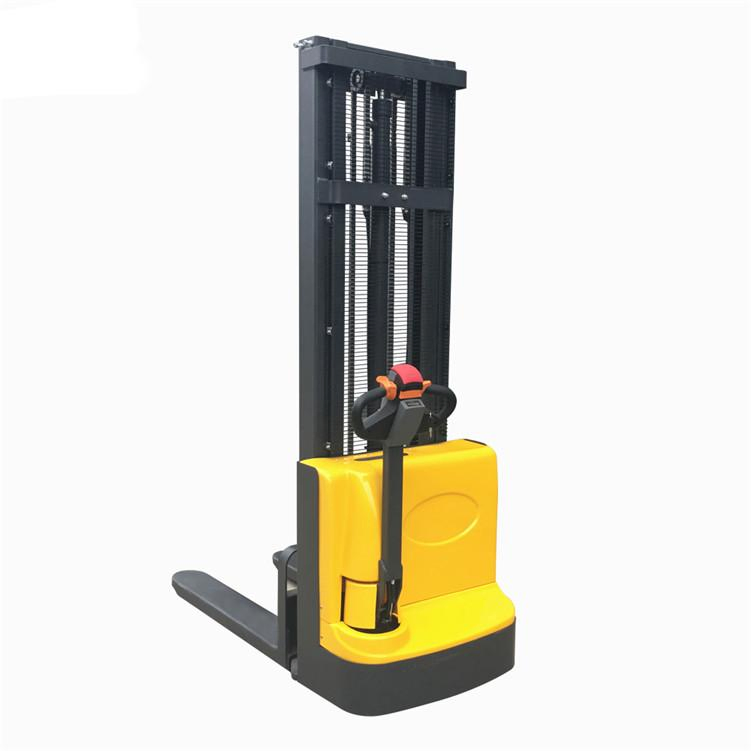

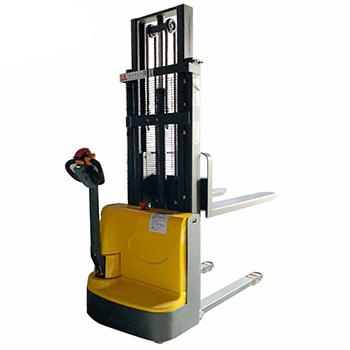

1ton Semi Electric Stacker

Customization: Available
After-sales Service: 1 Year Old
Warranty: 1 Year Old

Product Description

i

Basic Information

Model NO.
1T/1.5T/2T/2.5T/3T
Type
Electric Forklift
Power
DC Motor
Load Capacity
1T - 5T
Fuel
Electric
Lift Height
1600mm-4000mm
Service Brake
Electromagnetic Braking
Certificate
CE & ISO & TUV & GS
Condition
New
Origin
China

Product Description

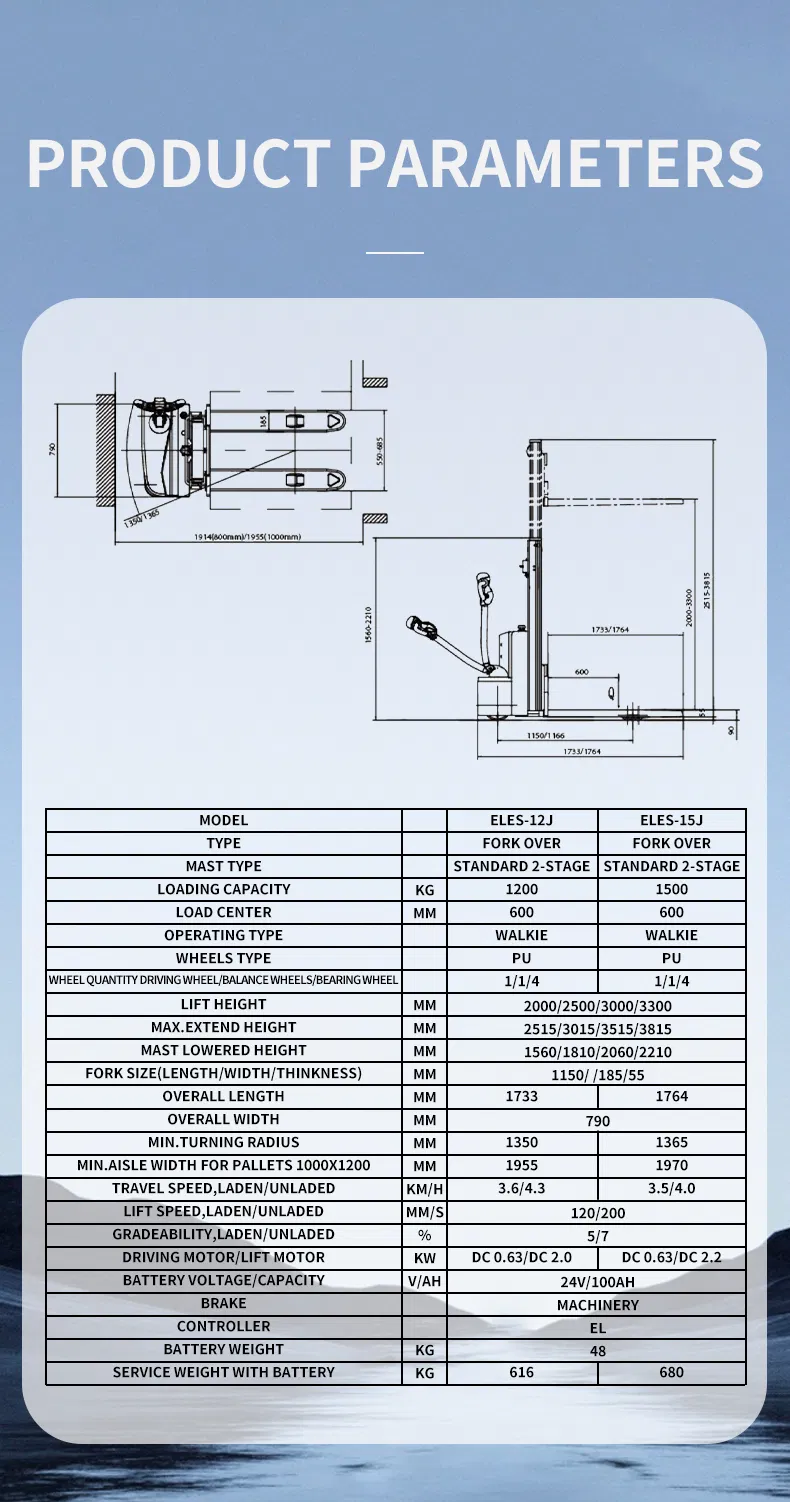

Parameter Unit Specification
Name-Full electric walkie stacker
Power type-Battery
Rated load capacitykg1500
Load centremm500
Operate type-Walkie
Total lengthmm1791
Total widthmm822
Lifting heightmm1600/2000/2500/3000/3500
Max driving speed (full load)km/h4
Driving motorkwDC0.75
Lifting motorkwDC2.2
Battery capacityV/AH48V/32AH
Service Brake-Electric magnetic

The Electric Pallet Stacker is an essential piece of equipment for warehouses and factories where inventory storage is critical. With its ease of use and efficiency, this innovation in material handling has revolutionized the industry.

This type of equipment is versatile and can handle various kinds of pallets, making tasks less tedious and saving time. Its advanced design allows it to move heavy products with ease due to its excellent power output, ideal for lifting goods to heights of up to 5 meters while ensuring no damage to the goods.

The Electric Pallet Stacker has the capacity to lift and transport loads that weigh up to 1.5 tonnes. It features adjustable forks that can move sideways or up and down, providing the capability to handle all kinds of loads with ease. It is very easy to operate, requiring minimal maintenance, which ensures long-term service for your business.

With this innovation, warehouses and factories have become much more efficient, cutting down on production times significantly. This allows for better production schedules and reduces the chances of delays in fulfilling product orders.

📷

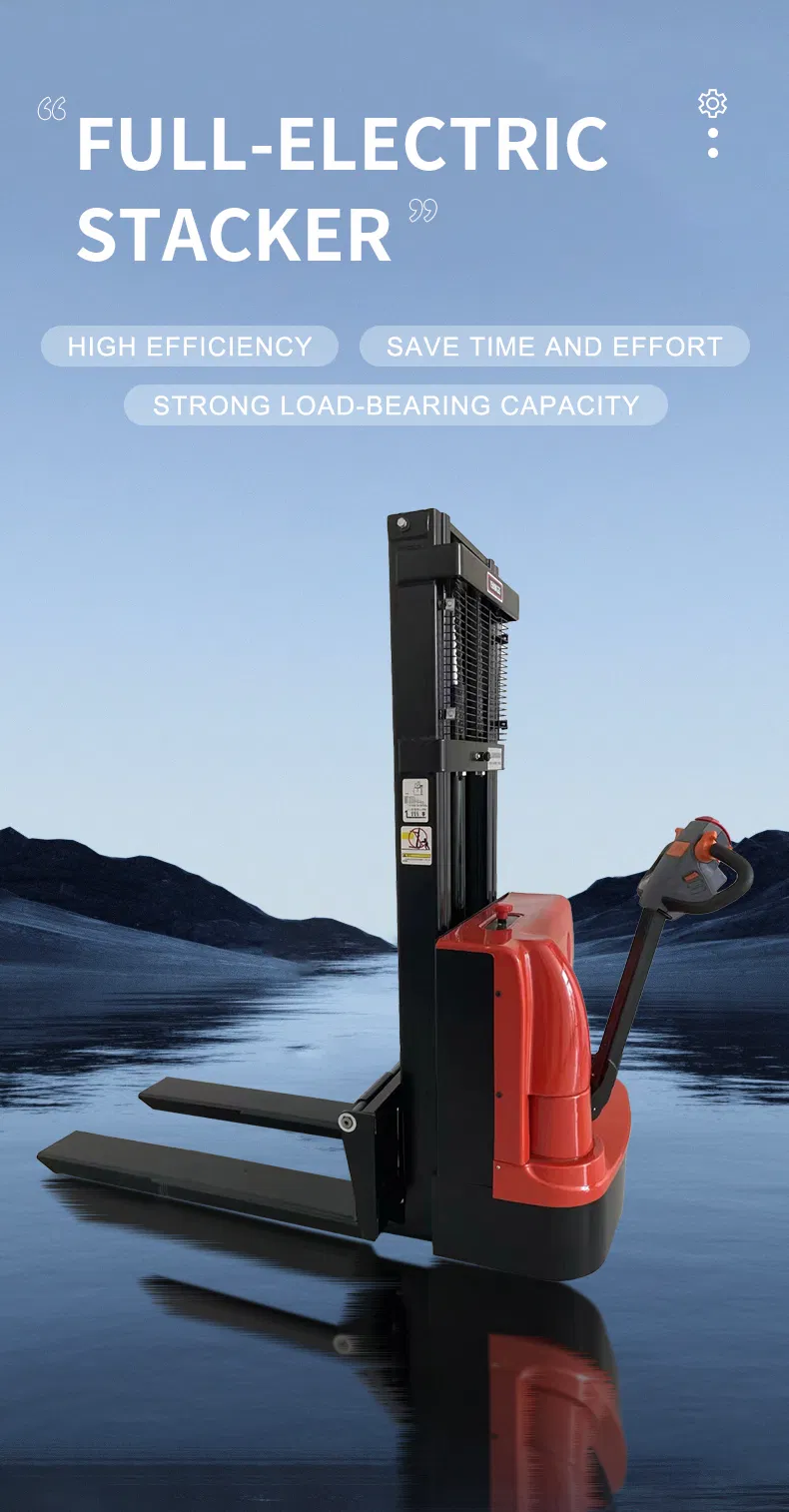

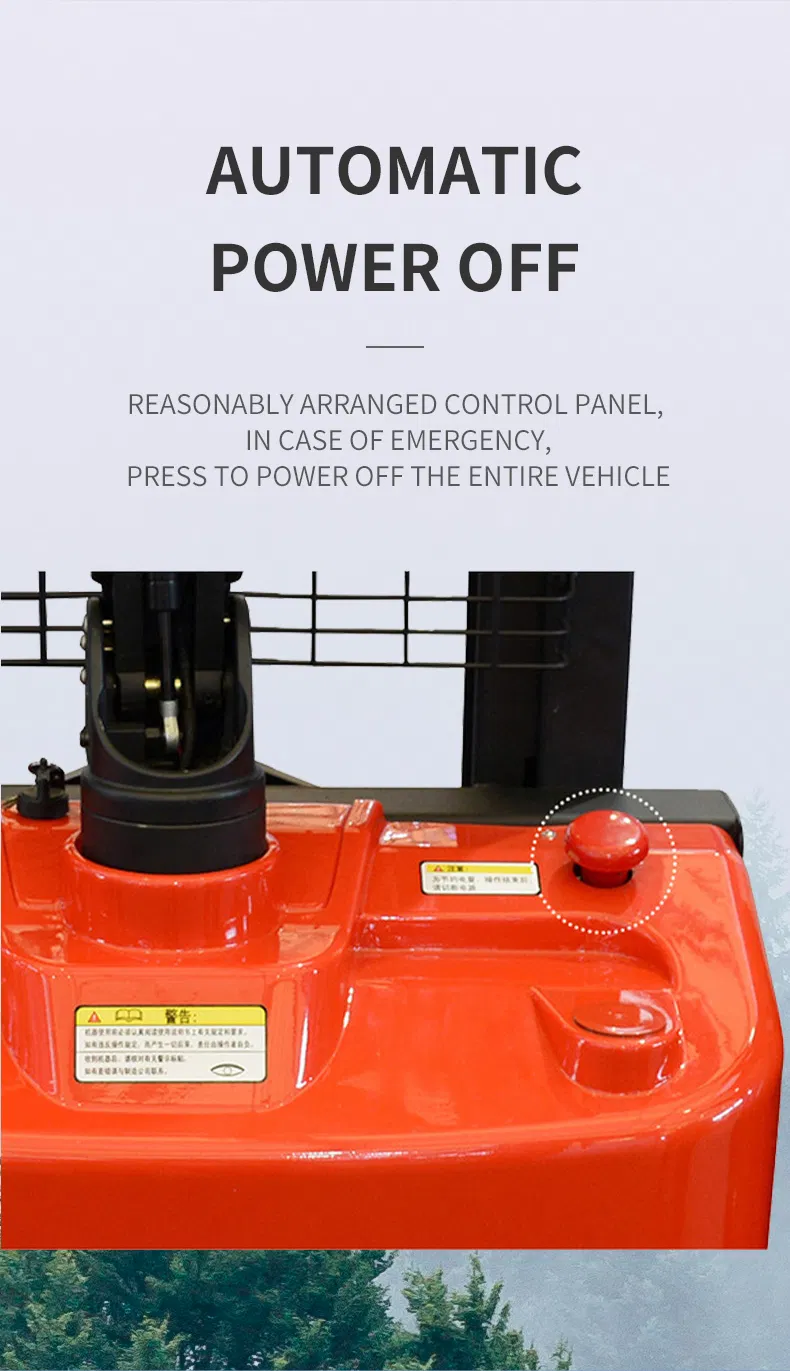

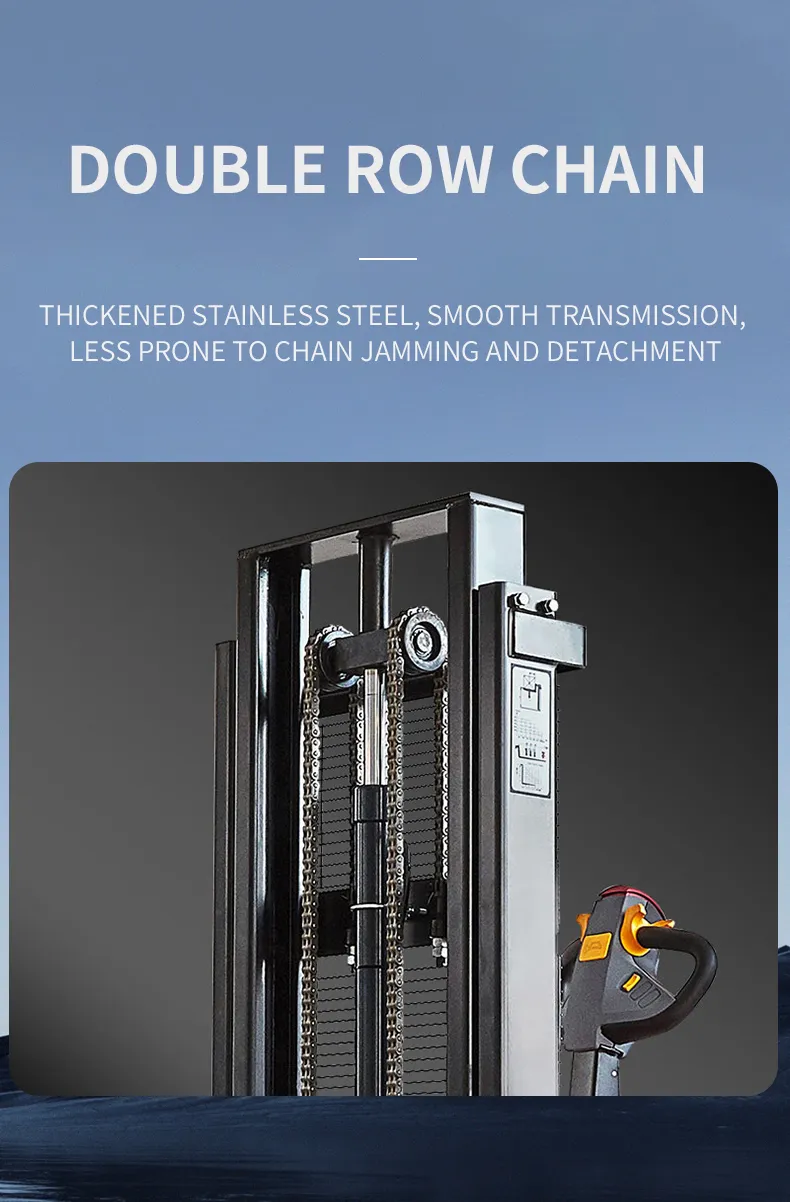

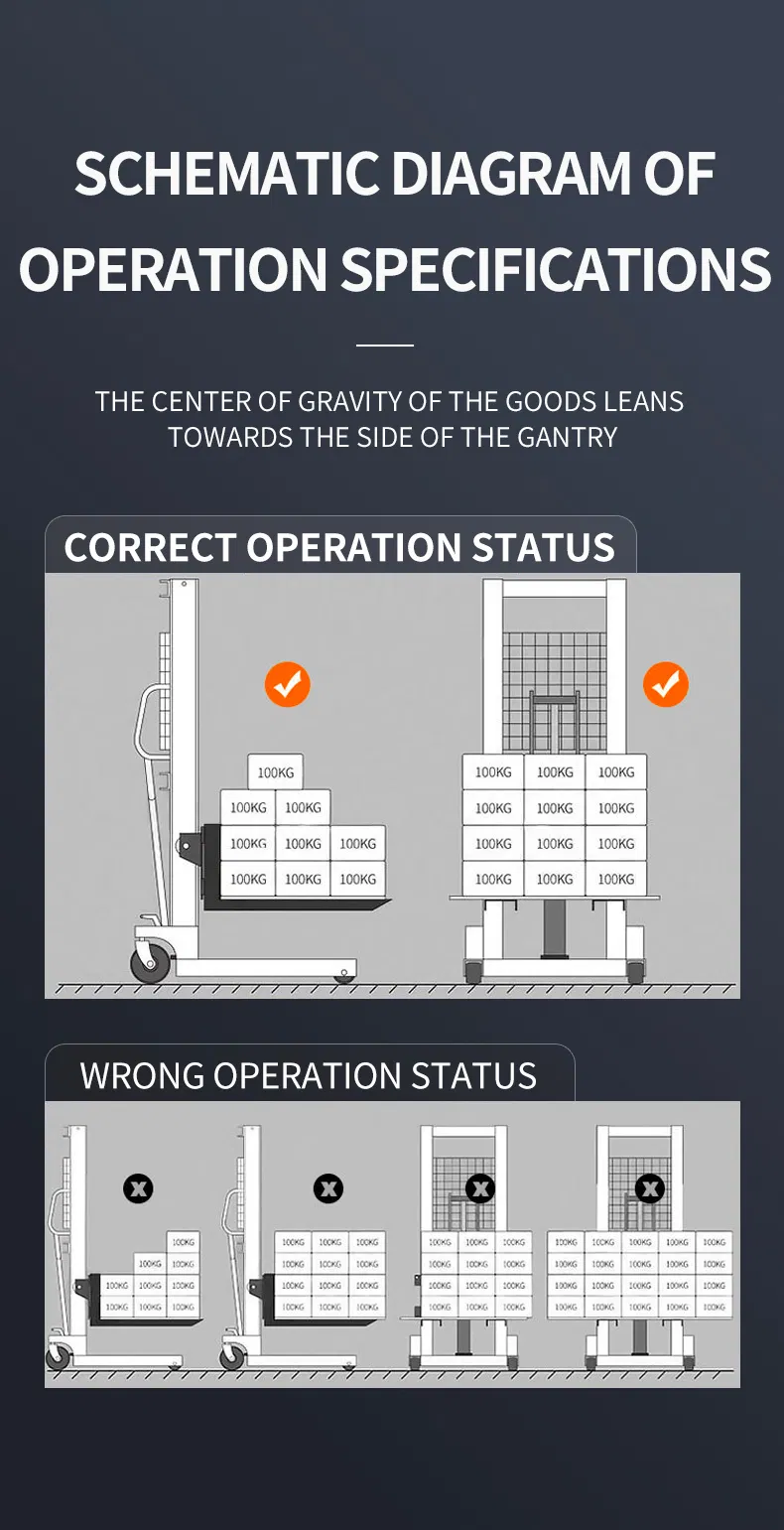

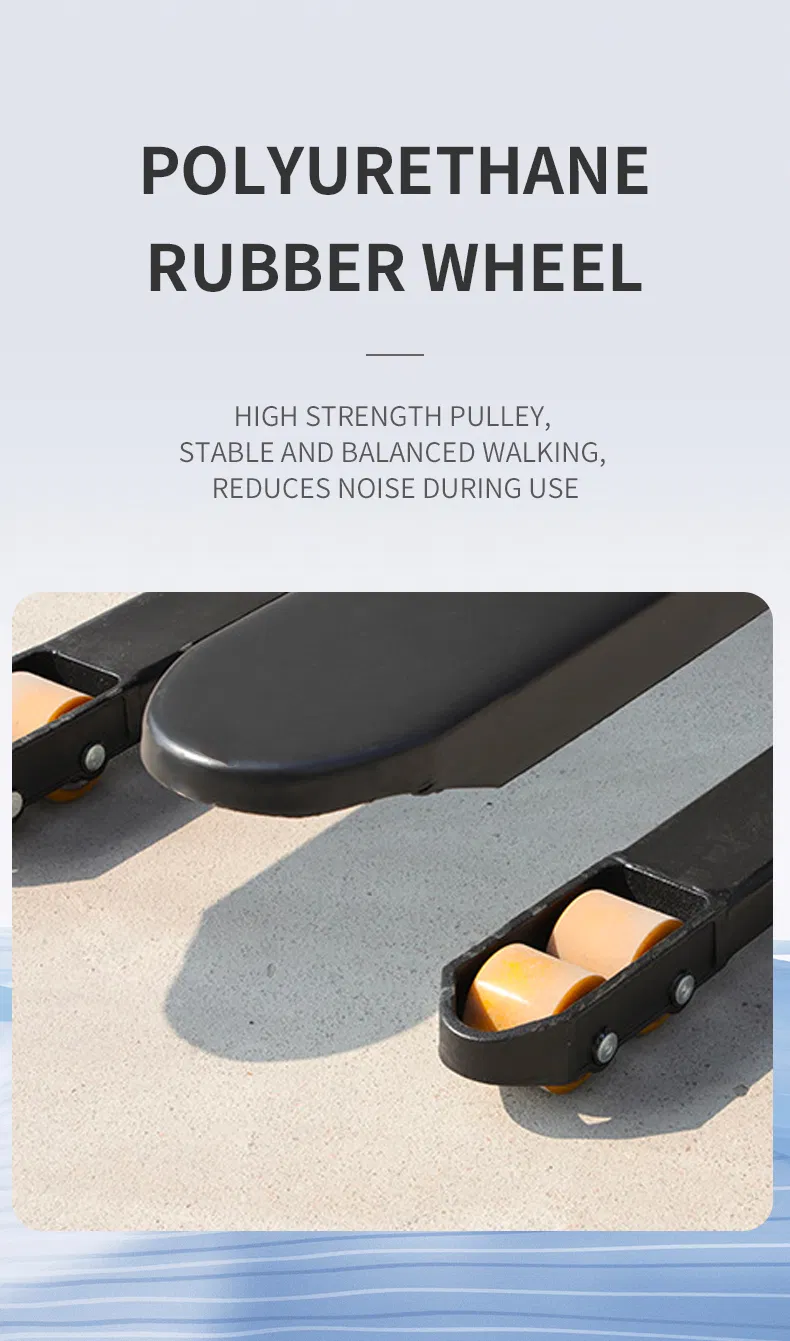

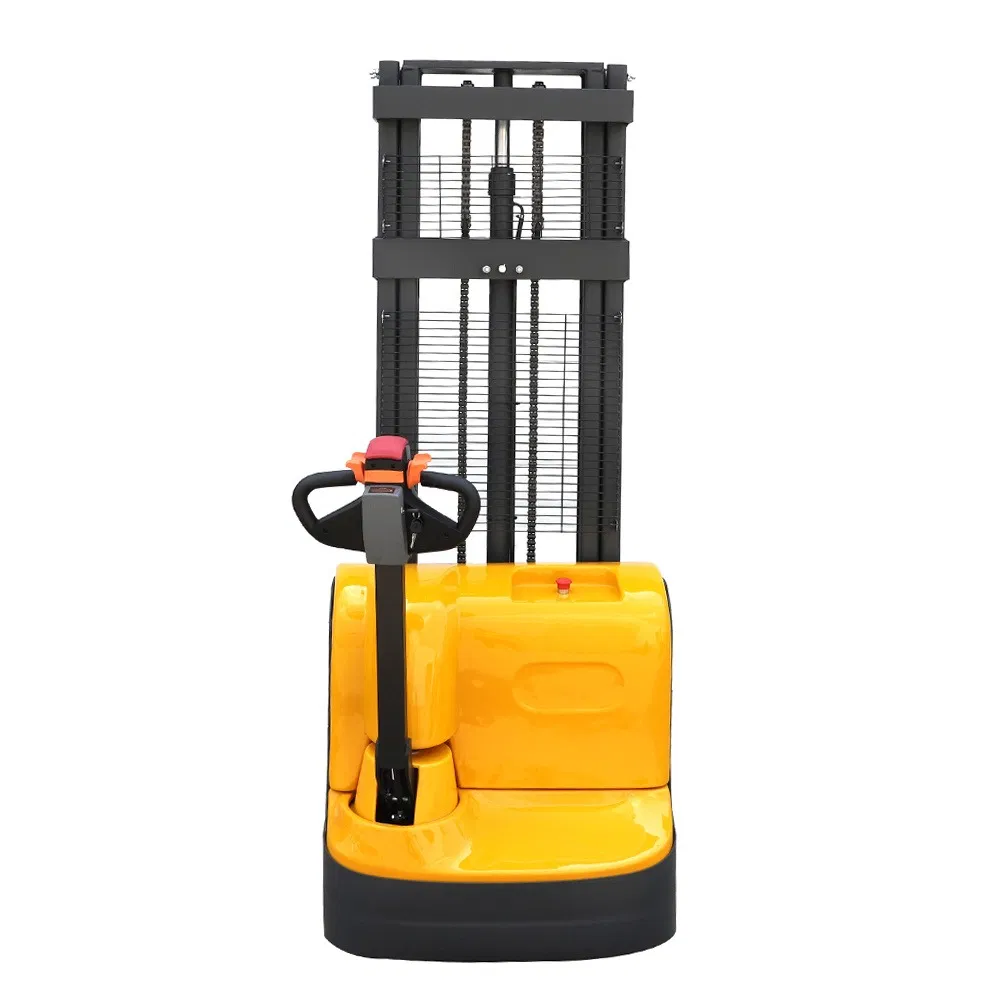

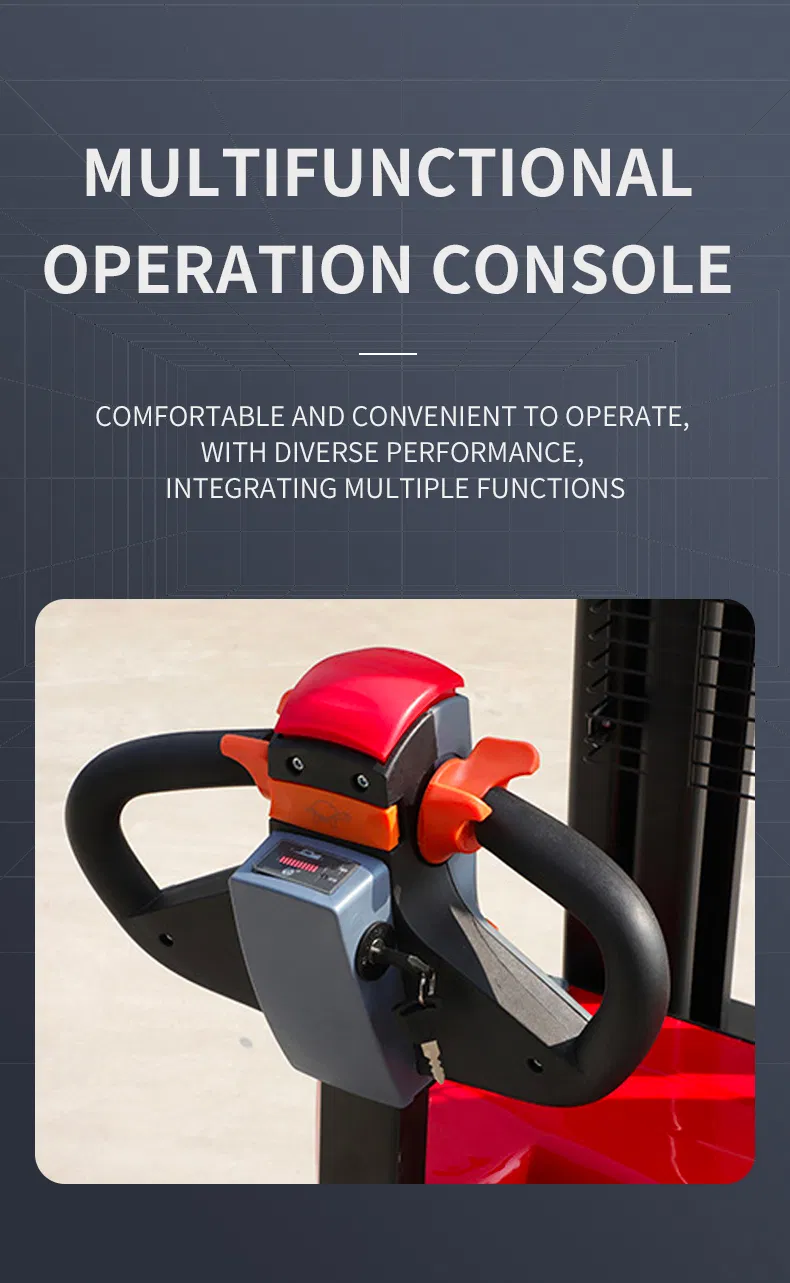

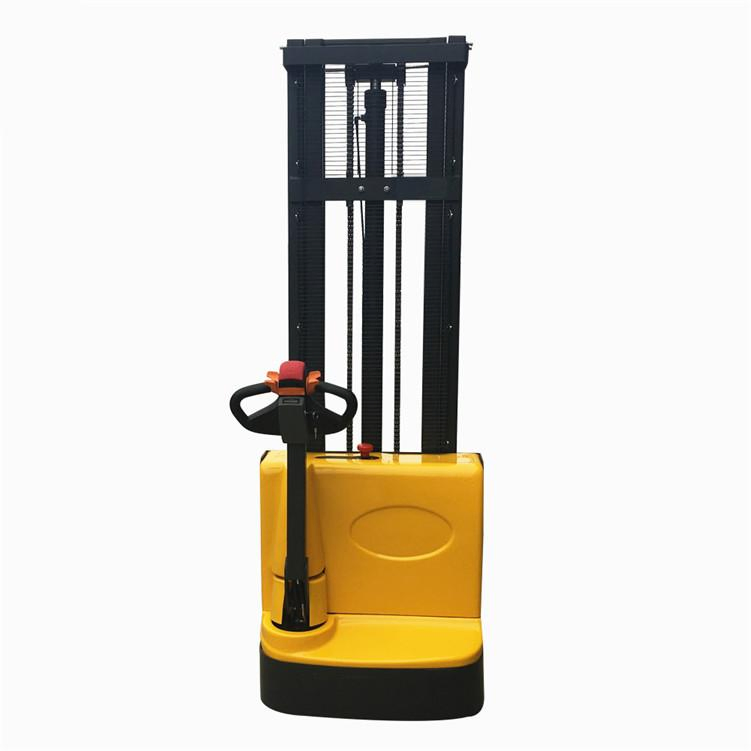

Detailed Photos

?

Frequently Asked Questions

What is the maximum load capacity of this electric stacker?
The standard rated load capacity is 1500kg (1.5 Tons), with models available ranging from 1T to 3T to suit different industrial needs.
What are the available lifting heights?
This equipment offers multiple lifting height options, typically ranging from 1600mm up to 4000mm, allowing for efficient high-shelf stacking.
What type of braking system is used for safety?
The stacker is equipped with an electromagnetic braking system, ensuring reliable and stable stopping power even when carrying full loads.
Is the equipment suitable for narrow aisles?
Yes, the walkie-type design and compact dimensions (total width of 822mm) make it ideal for navigating through tight warehouse aisles and confined spaces.
How is the quality of the product controlled?
Quality is our priority. The production process involves strict raw material selection, skilled craftsmanship, and a dedicated quality control department that checks each process to meet CE, ISO, and TUV standards.
Can the forks be adjusted for different pallet sizes?
Yes, the pallet stacker features adjustable forks that can move to accommodate various pallet widths and bulky goods.
