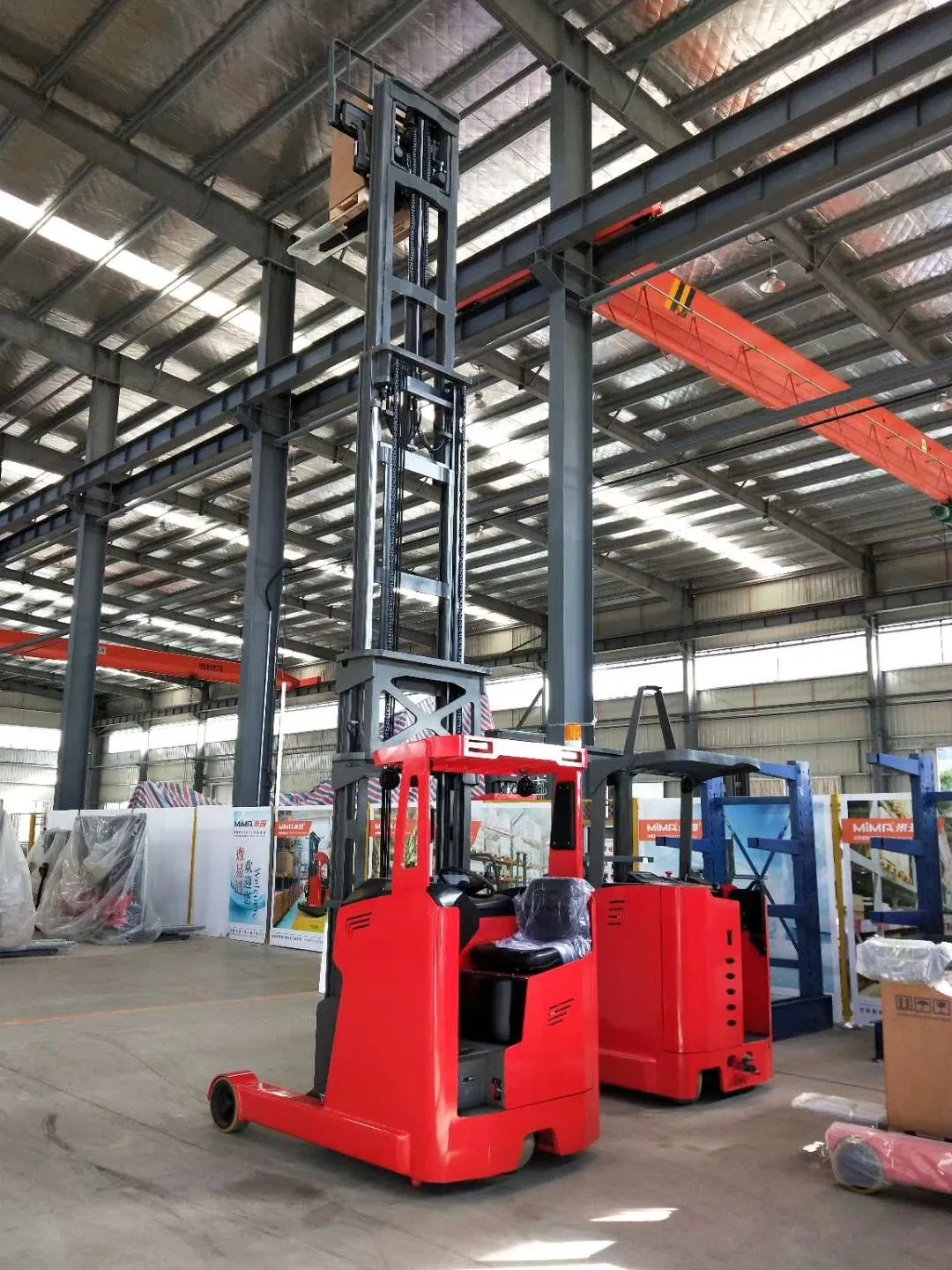

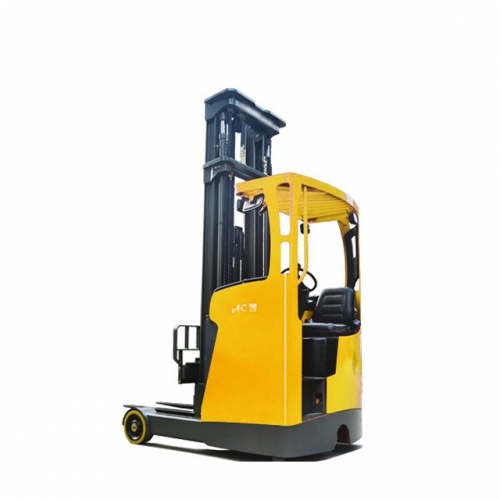

1ton 1000kg Electric Battery Reach Truck Forklift Tripple Mast Lithium Option

1 / 5

1ton 1000kg Electric Battery Reach Truck Forklift Tripple Mast Lithium Option

Customization:	Available
After-sales Service:	Mail Parts
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

TS10-45

Cab Location

No Cabin

Type

Powered Pallet Truck

Power

AC Motor

Load Capacity

1t-2t

Fuel

Electric

Load center

>500mm

Lift height

3000~9000mm

Condition

New

Certificate

Ce/ISO

Transport Package

Wooden Pallet /Steel Pallet

Origin

China

HS Code

84271090

Production Capacity

5000 Unit / Year

Product Advantages

🏗️ High Stability

The large and strong chassis ensures sufficient stability of the forklift, with lifting height range from 3 to 6.2 meter.

🇩🇪 German Engineering

Steel of mast is imported from Germany offers superior stability and safety.

🧘 Ergonomic Design

Large and comfortable compartment with adjustable seat reflects a concept of ergonomic design. The stand type cab gives big operation space, offers the best visibility.

⚙️ Enhanced Structure

Rear axle is equipped with two separate floating devices, enhances stability in terms of structure, reduces the self-weight, and prolongs the use time of the driving wheel.

Technical Specifications

Parameters	Unit	TS10-30	TS15-30	TS20-30
Power	Battery	Battery	Battery	Battery
Operation	-	Seated	Seated	Seated
Load Capacity	Q(kg)	1000	1500	2000
Lift height (biggest)	h3(mm)	3000	3000	3000
Load Center	c(mm)	500	500	500
Wheelbase	Y(mm)	1480	1480	1500
Service Weight	kg	2200	2400	3300
Tyre	-	PU Wheel	PU Wheel	PU Wheel
Height of mast lowered	h1(mm)	2086	2086	2086
Overall length	l2(mm)	1850	1850	2440
Overall width	b1(mm)	1100	1100	1260
Turning radius	Wa(mm)	1740	1740	1820
Drive motor	kW	2.2	2.2	4
Lift motor	kW	5	8.2	8.2
Battery voltage	V/Ah	48V/400AH	48V/400AH	48V/500AH

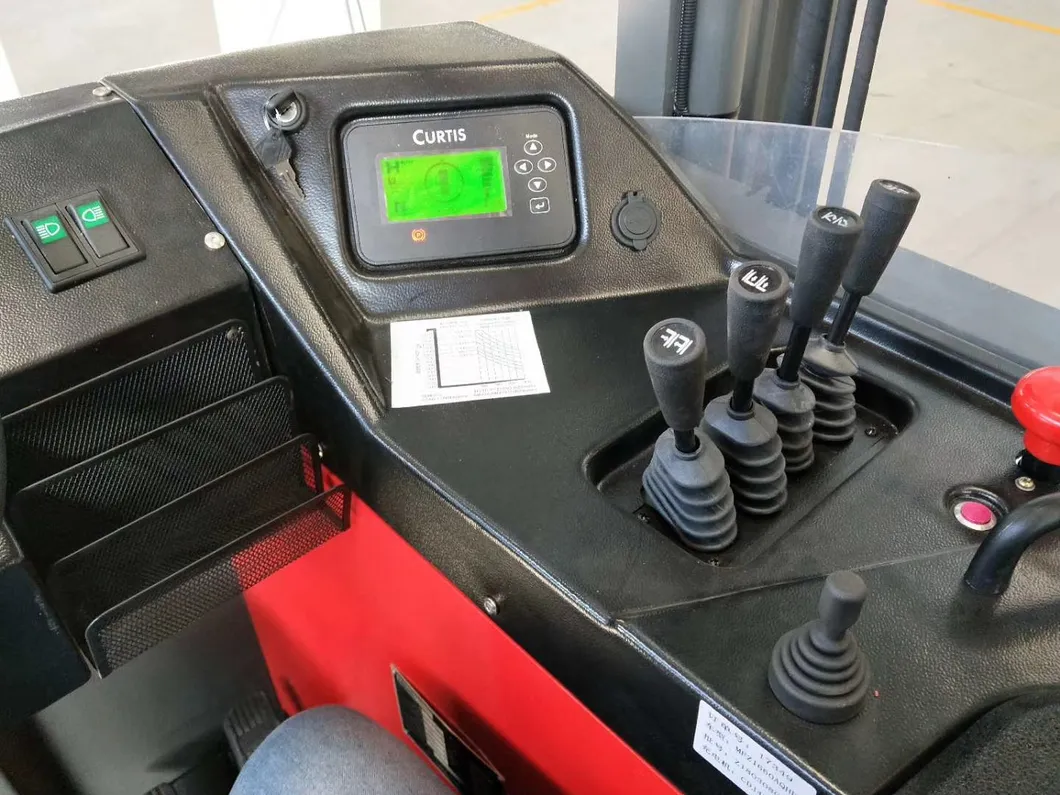

Speed control system	-	ZAPI / Curtis / SME

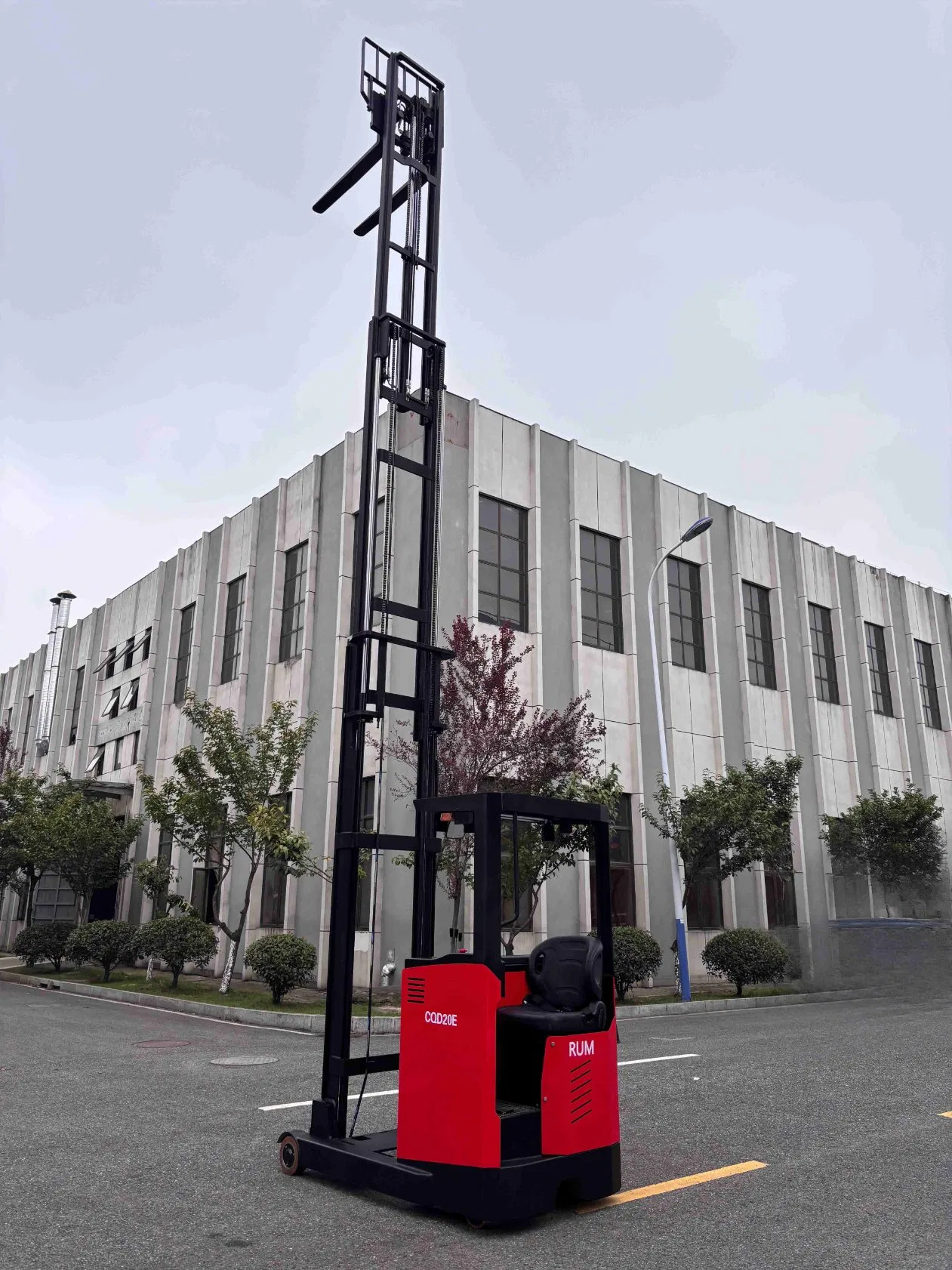

Product Display

Frequently Asked Questions

How long is the warranty for the product?

We provide 24 months or 2500 hours for the whole machine from on board time.

What is the typical delivery time?

Usually production time is 15-20 days after receiving the advanced payment. Standard products may be available for immediate delivery from stock.

How long does the battery last and how long to charge?

Continuous working time is around 4-6 hours depending on volume and operation. A full charge takes about 5 hours. The intelligent charger stops automatically when the battery is full.

What is the expected lifespan of the battery?

Our batteries are built to DIN standards (German technology) and can operate for approximately 6 years without issues.

Are customized OEM or ODM products available?

Yes, we can provide customized products per your request. Both OEM and ODM are acceptable for non-standard requirements.

What are the charger specifications and color options?

Chargers support 110V to 415V (1 or 3 phase) with various international plug standards. Available product colors include orange-red, red, white, green, blue, and more via RAL codes.
