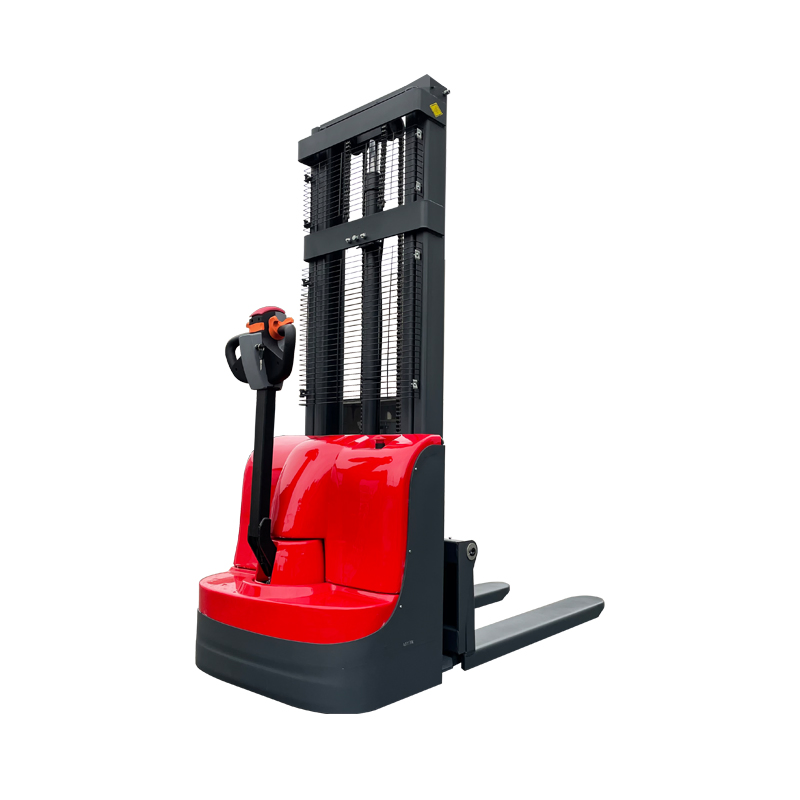

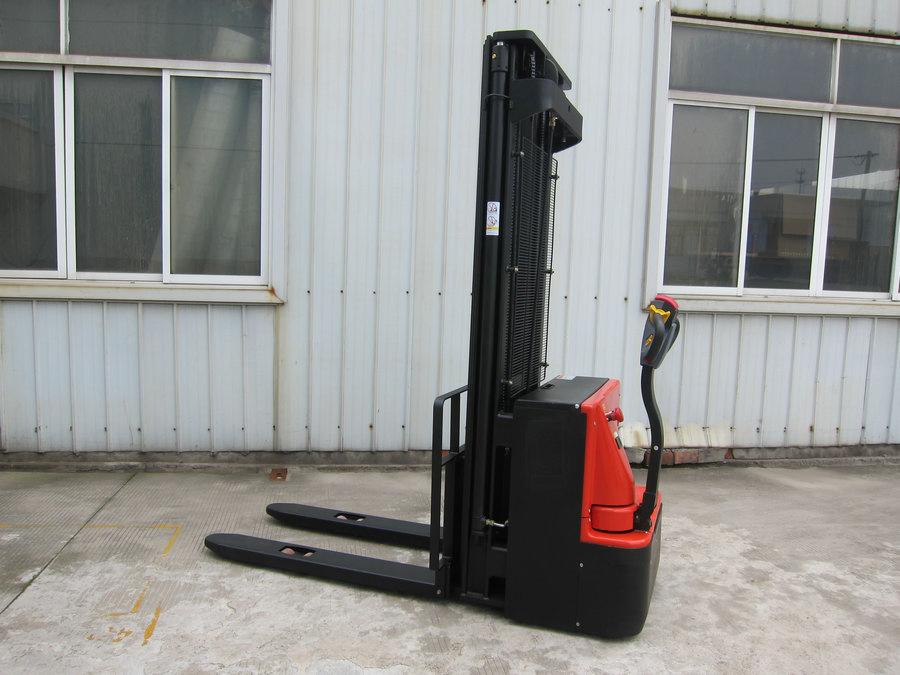

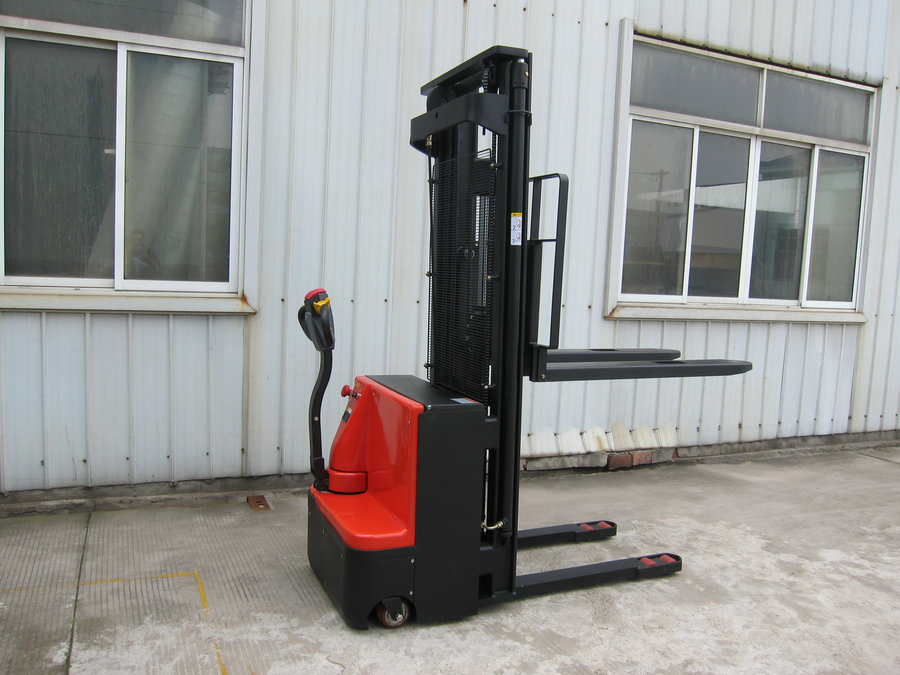

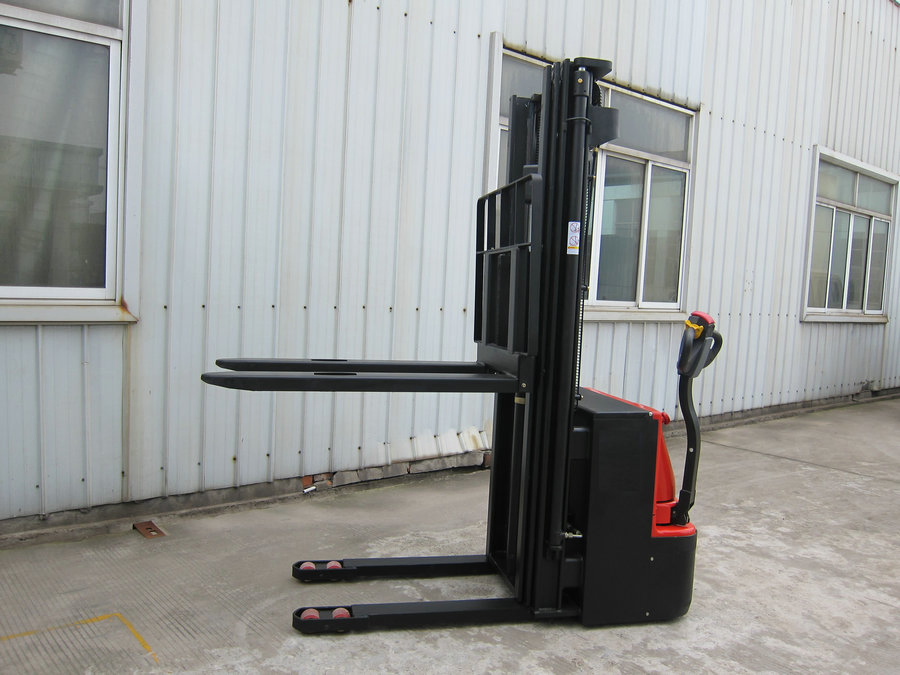

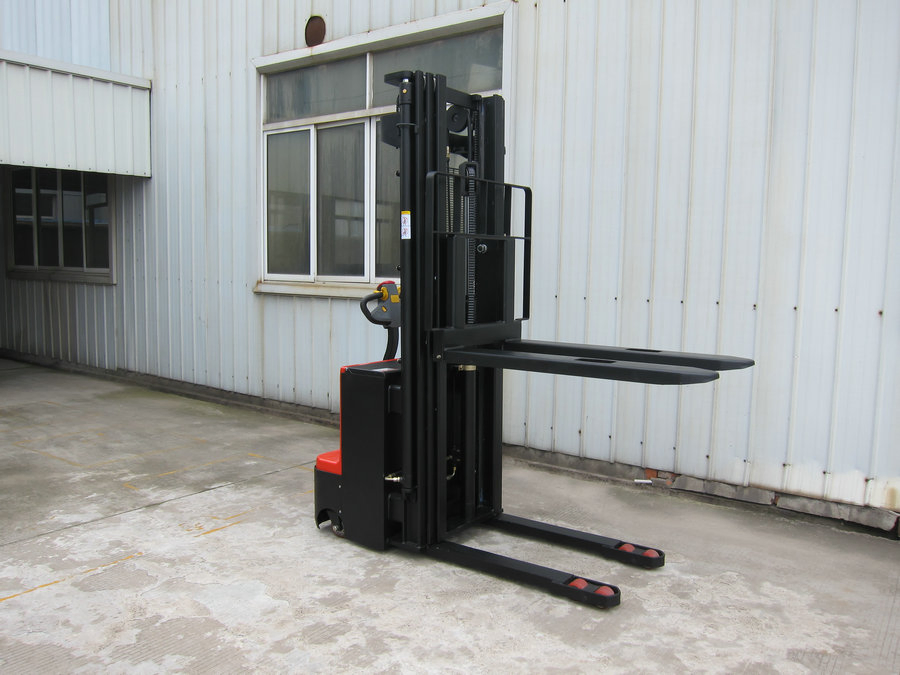

1.5 Ton Es15 Pedestrian Electric Stacker
1.5 Ton Es15 Pedestrian Electric Stacker
1.5 Ton Es15 Pedestrian Electric Stacker
1.5 Ton Es15 Pedestrian Electric Stacker
1.5 Ton Es15 Pedestrian Electric Stacker
1 / 5
1.5 Ton Es15 Pedestrian Electric Stacker
1.5 Ton Es15 Pedestrian Electric Stacker
1.5 Ton Es15 Pedestrian Electric Stacker
1.5 Ton Es15 Pedestrian Electric Stacker
1.5 Ton Es15 Pedestrian Electric Stacker

1.5 Ton Es15 Pedestrian Electric Stacker

Customization: Available
After-sales Service: Free Spare Parts
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specification
Model NO.
TB115S-30
Cab Location
Adjustable
Type
Stacker
Power
DC Motor
Load Capacity
1T - 5T
Fuel
Electric
Load center
500mm
Lift height
1.6 M to 6 M
Condition
New
Certificate
Ce/ISO
Origin
China
HS Code
84271090
Safety and Productivity
AC motor with high transmission efficiency, without replacing carbon brushes, featuring excellent ramp starting performance.
Low center of gravity ensures superior stability and smooth running operations.
Small minimum turning radius and excellent steering operating performance for tight spaces.
Advanced AC variable speed technology makes the motor more reliable and maintenance-free.
Integrated control of both walking speed and lifting speed for precise handling.
Equipped with a shock device to greatly reduce operational noise.
Sideway moving battery designed for easy replacement and maintenance.
Integrated electrical system with clean wiring for easy assembly and maintenance.
Environmentally friendly maintenance-free lead-acid battery.
Programmable control technology with built-in fault diagnostic functions and emergency brake.
Technical Parameters
Model Parameter Unit TB110S Series TB115S Series
Load capacitykg10002000
Lifting heightm1.6m / 2m / 2.5m1.6m / 2.5m
Max lifting heightmm2075/3033/35332075/3033
Wheel basemm1146.51146.5
Tyre quantity (front/rear)mm4/24/2
Grade ability laden/unladen%5/75/7
Min. right angle stacking aisle widthmm21552155
Overall lengthmm17851785
Overall widthmm800800
Turning radiusmm13801380
Driving motorkW0.750.75
Lifting motorkW2.22.2
Battery capacityV/Ah24/8024/80
Service brake-Electro magneticElectro magnetic

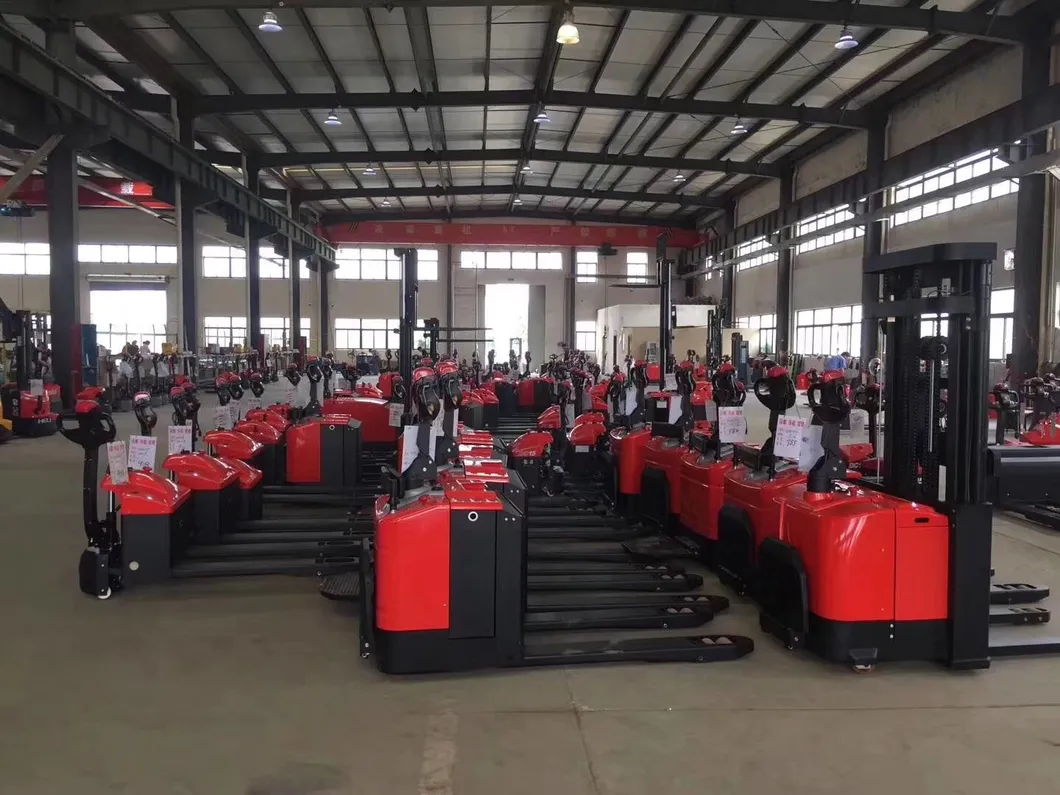

Electric Stacker View 1

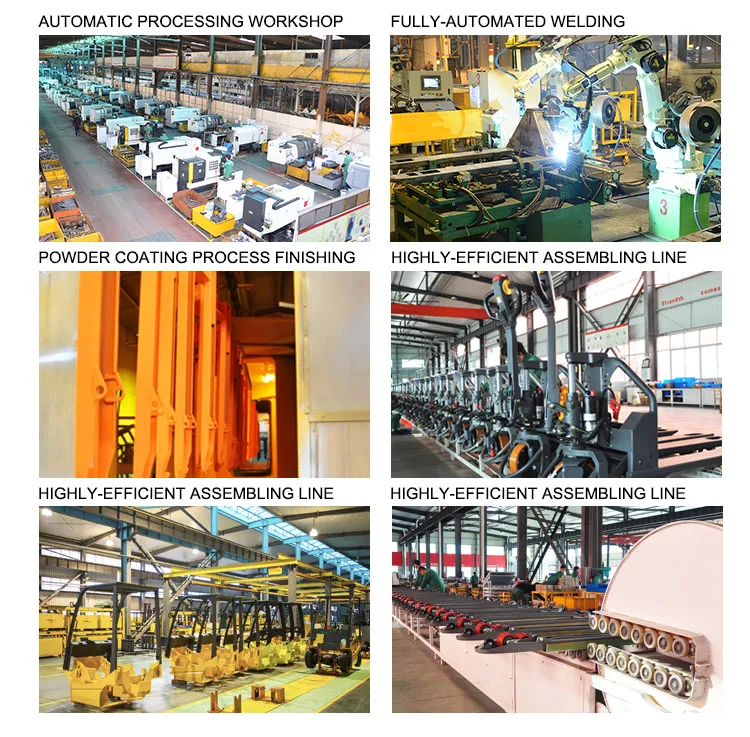

Electric Stacker View 2
Electric Stacker View 3
Electric Stacker View 4
Frequently Asked Questions
How long is the warranty for the product?
The warranty provided is 24 months or 2500 hours for the whole machine from the on-board time.
How about the delivery time?
Usually, the production time is 15-20 days after receiving the advanced payment. For standard products, we may have stock for immediate delivery.
How long is the continuous working time and charging time?
The battery continuous working time is around 4-6 hours (depending on battery volume and operation). Charging takes about 5 hours. The charger is intelligent and stops automatically when full.
What is the expected working life of the battery?
Our battery follows DIN standards (German technology) and can work for 6 years under normal conditions without problems.
What are the specifications of the chargers?
Charger voltages can be 110V, 220V, 240V, 380V, or 415V (1 or 3 phases, 50/60HZ). Power plugs are available in USA/UK/AUSTRALIA/EUROPEAN standards.
Can we request a customized color for the products?
Yes, we offer various colors including orange red, white, green, blue, etc. You just need to provide the RAL code.
