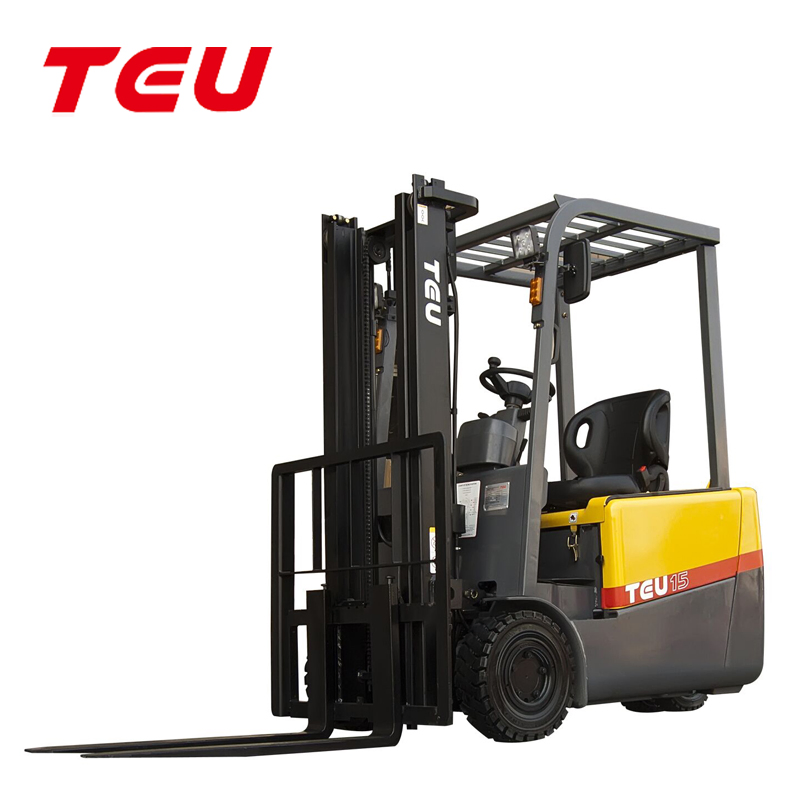

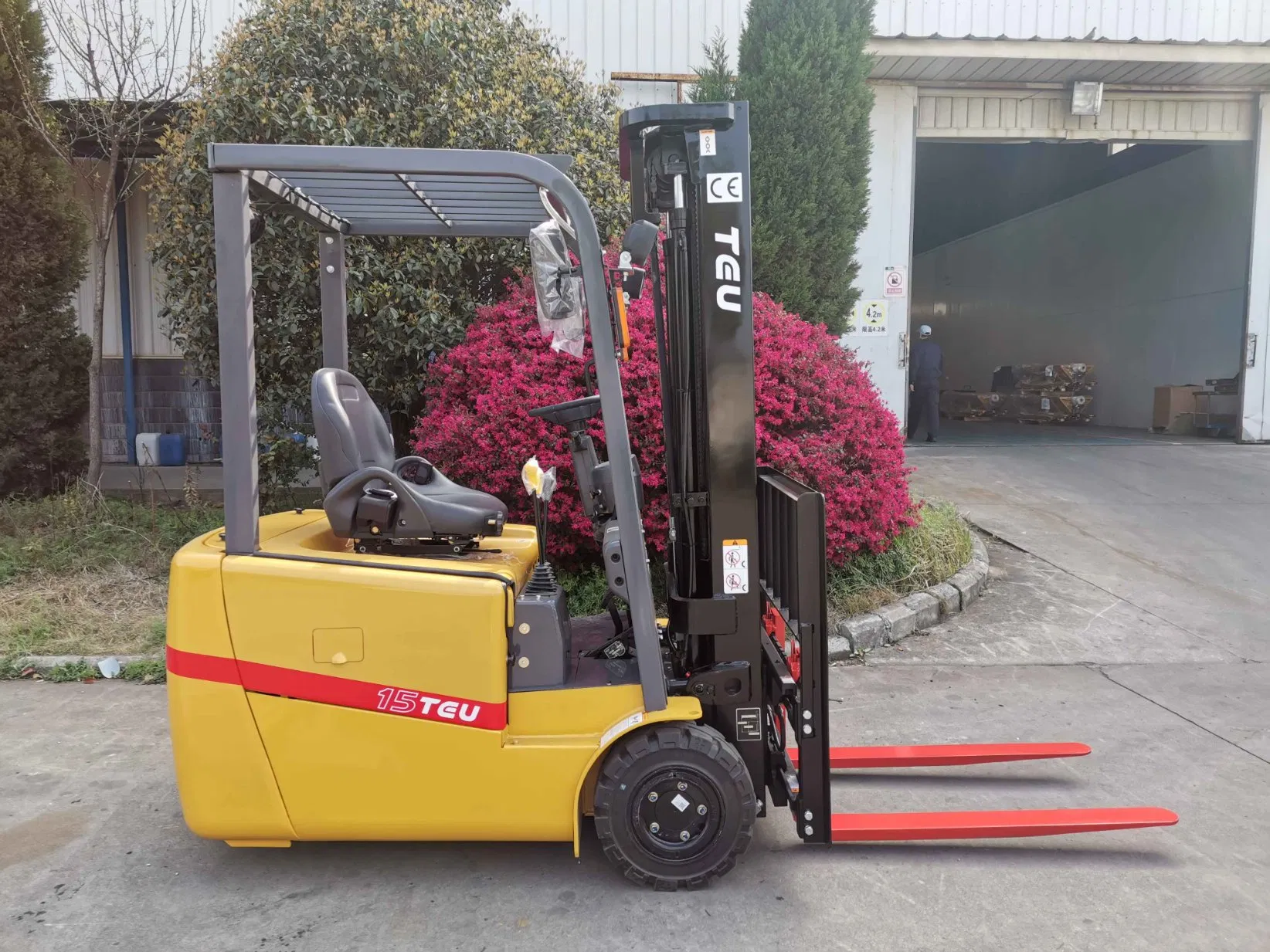

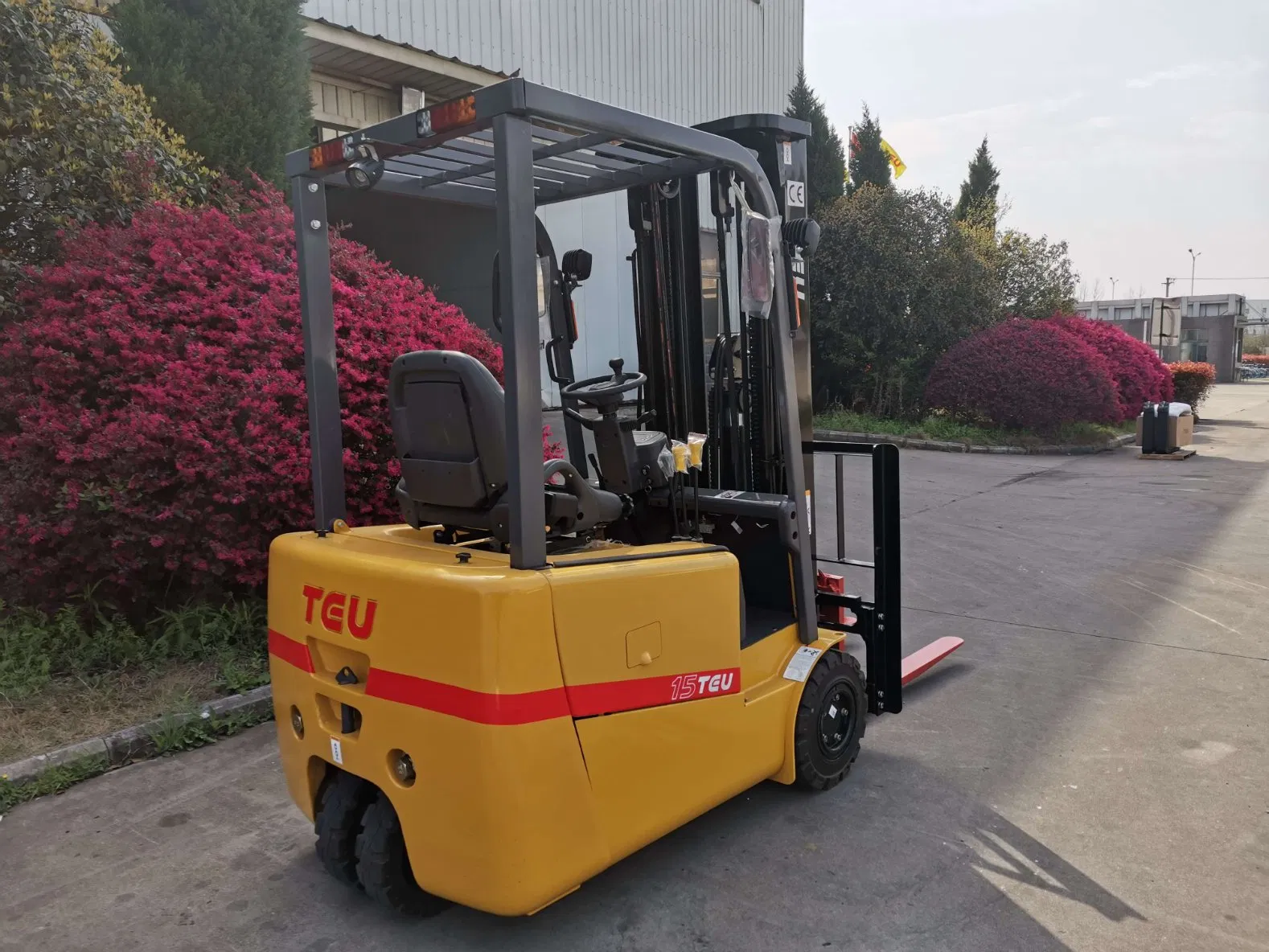

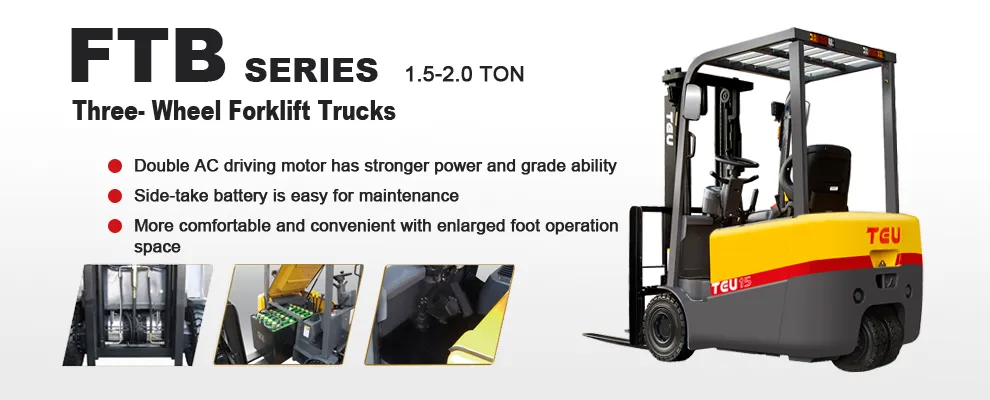

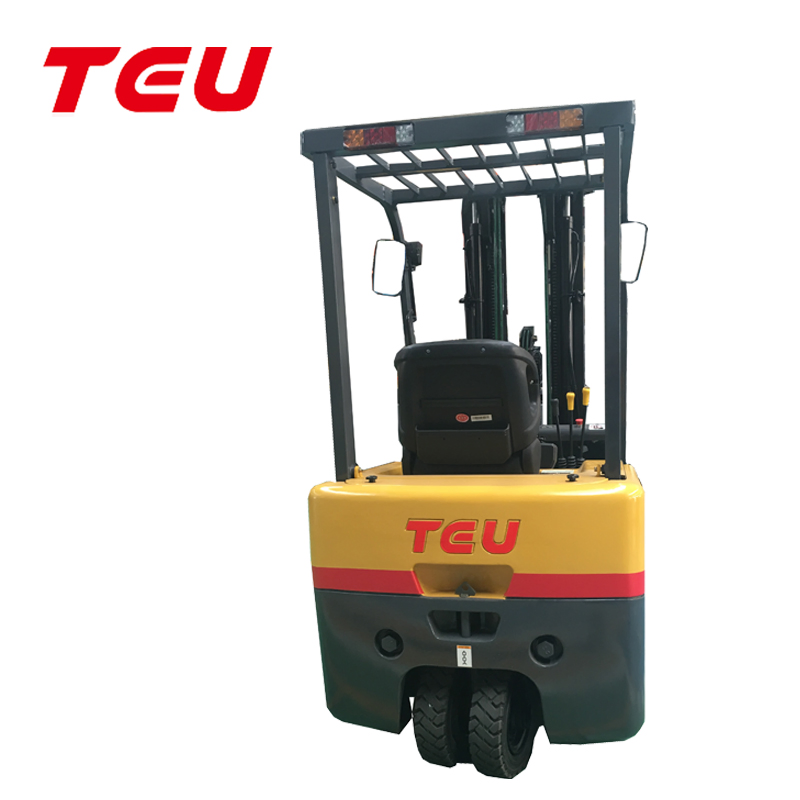

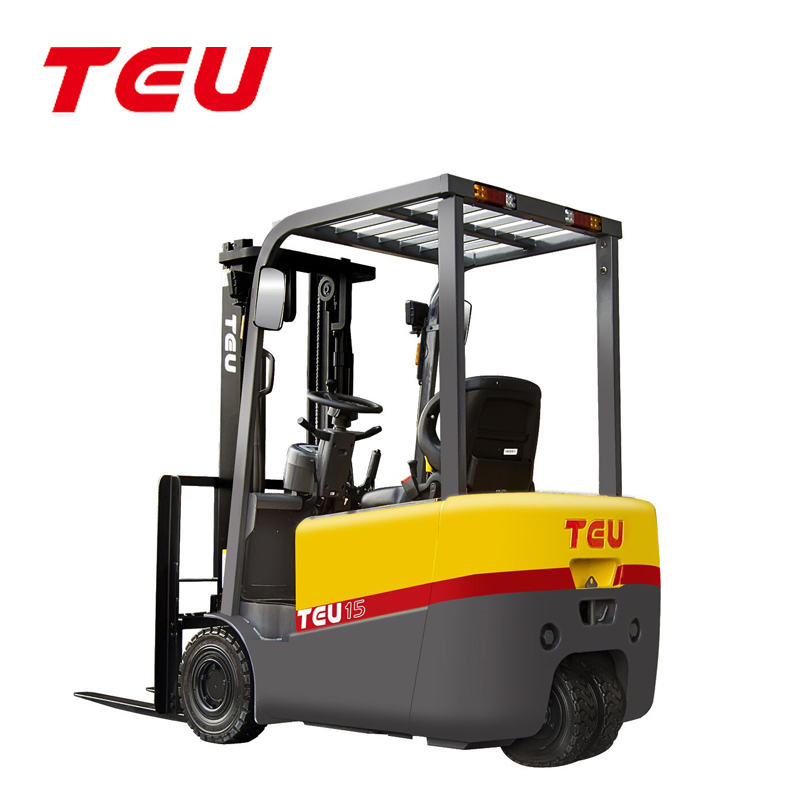

1.5-2.0 Ton Electric 3 Three-Wheel Battery Reach Diesel Forklift Truck

1 / 5

1.5-2.0 Ton Electric 3 Three-Wheel Battery Reach Diesel Forklift Truck

Customization:	Available
After-sales Service:	Available
Warranty:	12 Months or 2000 Working Hours

Send Inquiry

Product Description

📊 Basic Information

Model NO.FTB15

TypeElectric Forklift

PowerAC Motor

Load Capacity1T - 5T

FuelElectric

Load Center500mm

Lift Height>5000mm

ConditionNew

BatteryFree Maintenance

Lifting/Driving MotorAC

Lithium BatteryOptional

OriginChina

⚙️ Technology Specification

FTB15 TECHNOLOGY SPECIFICATION
Specifications	Model	-	FTB15
	Load capacity	kg	1500
	Load center	mm	500
	Tire type	-	SOLID TIRES
Dimensions	Max. lifting height	mm	3000
	Overall length (without fork)	mm	1785
	Total width	mm	1054
	Turning radius (outside)	mm	1445
	Min. right angle stacking aisle	mm	3010
Performance	Max Travelling Speed (Full Load)	km/h	15
	Lifting Speed (Full Load)	mm/s	280
	Gradeability (Full Load)	%	20
Weight	Truck weight (with battery)	kg	2960
Weight	Weight distribution (Full load - F/R)	kg	4010/450
Drive Line	Battery Voltage/capacity	V-AH/5hr	48V-400
Drive Line	AC Driving motor	kw	4.75

🖼️ Product Gallery

🛡️ Warranty Policy

● Electric forklift and electric reach forklift: 1 YEAR OR 2000 WORKING HOURS, SUBJECT TO THE FIRST.

● Forklift with imported engines: 1 YEAR OR 2000 WORKING HOURS, SUBJECT TO THE FIRST.

● Forklift with Chinese engines: 6 months OR 1000 WORKING HOURS, SUBJECT TO THE FIRST.

❓ Frequently Asked Questions

What is the load capacity and lift height of the FTB15?

The FTB15 has a load capacity of 1500kg (1.5 Tons) with a standard lifting height of 3000mm, though it can be configured for heights exceeding 5000mm.

What type of motors are used in this electric forklift?

It features high-efficiency AC motors for both driving (4.75kw) and lifting, providing stable power and lower maintenance requirements.

What are the battery options for the FTB15?

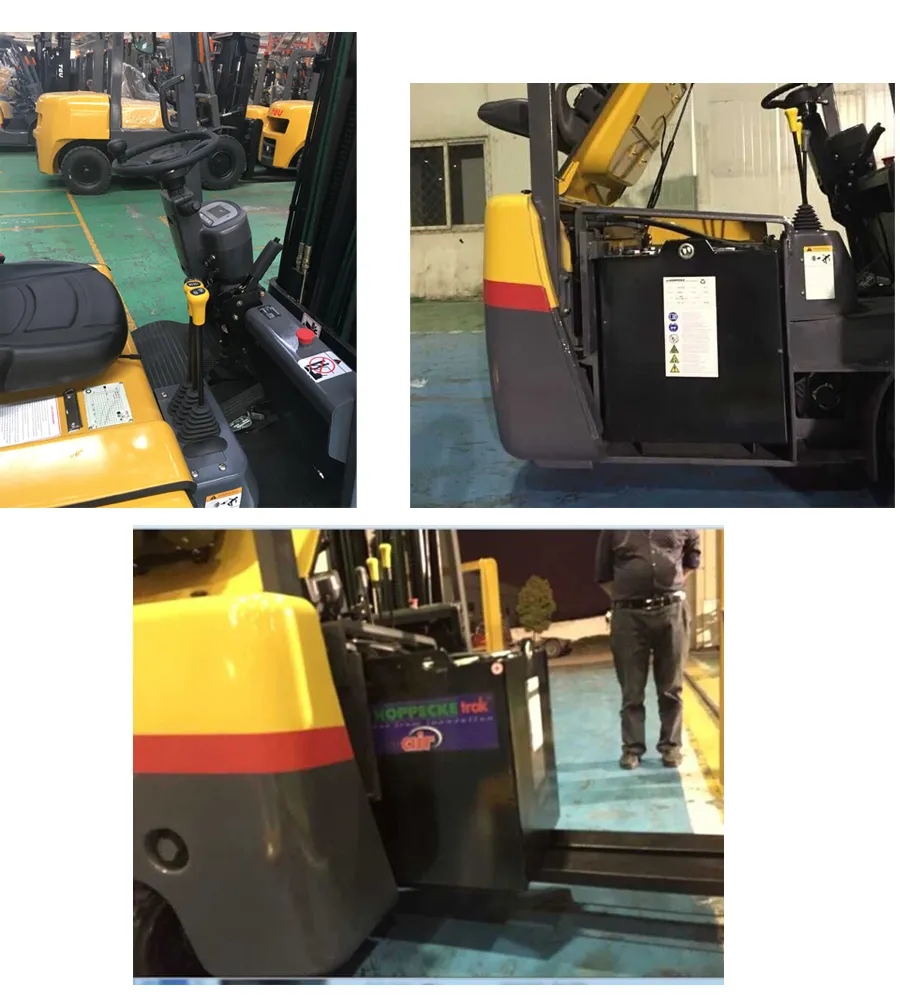

The standard configuration includes a 48V/400Ah maintenance-free battery. A Lithium battery option is also available for faster charging and longer life cycles.

Is this forklift suitable for narrow aisles?

Yes, with a turning radius of only 1445mm and a total width of 1054mm, it is designed for efficient operation in confined warehouse spaces.

What kind of tires does the FTB15 use?

The truck is equipped with solid tires (18x7-8 front and 15x4.5-8 rear), which offer excellent durability and puncture resistance for indoor and outdoor flat surfaces.
