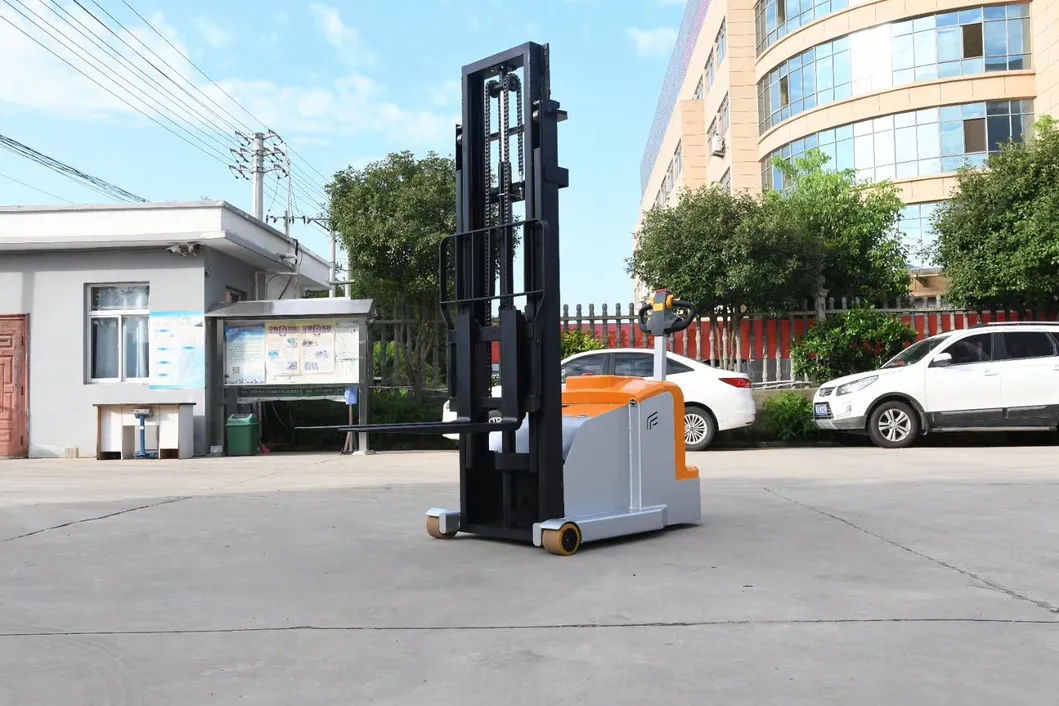

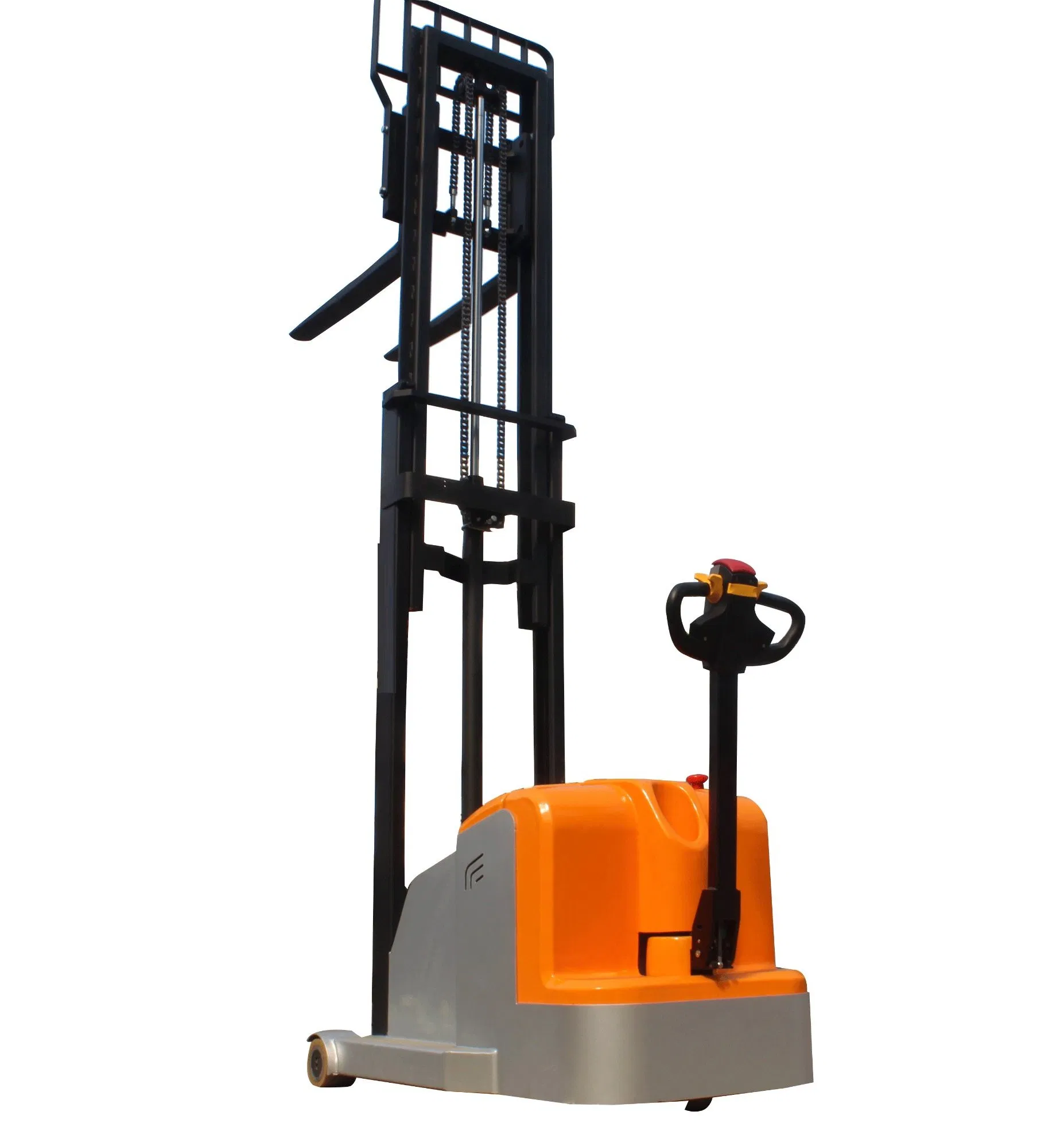

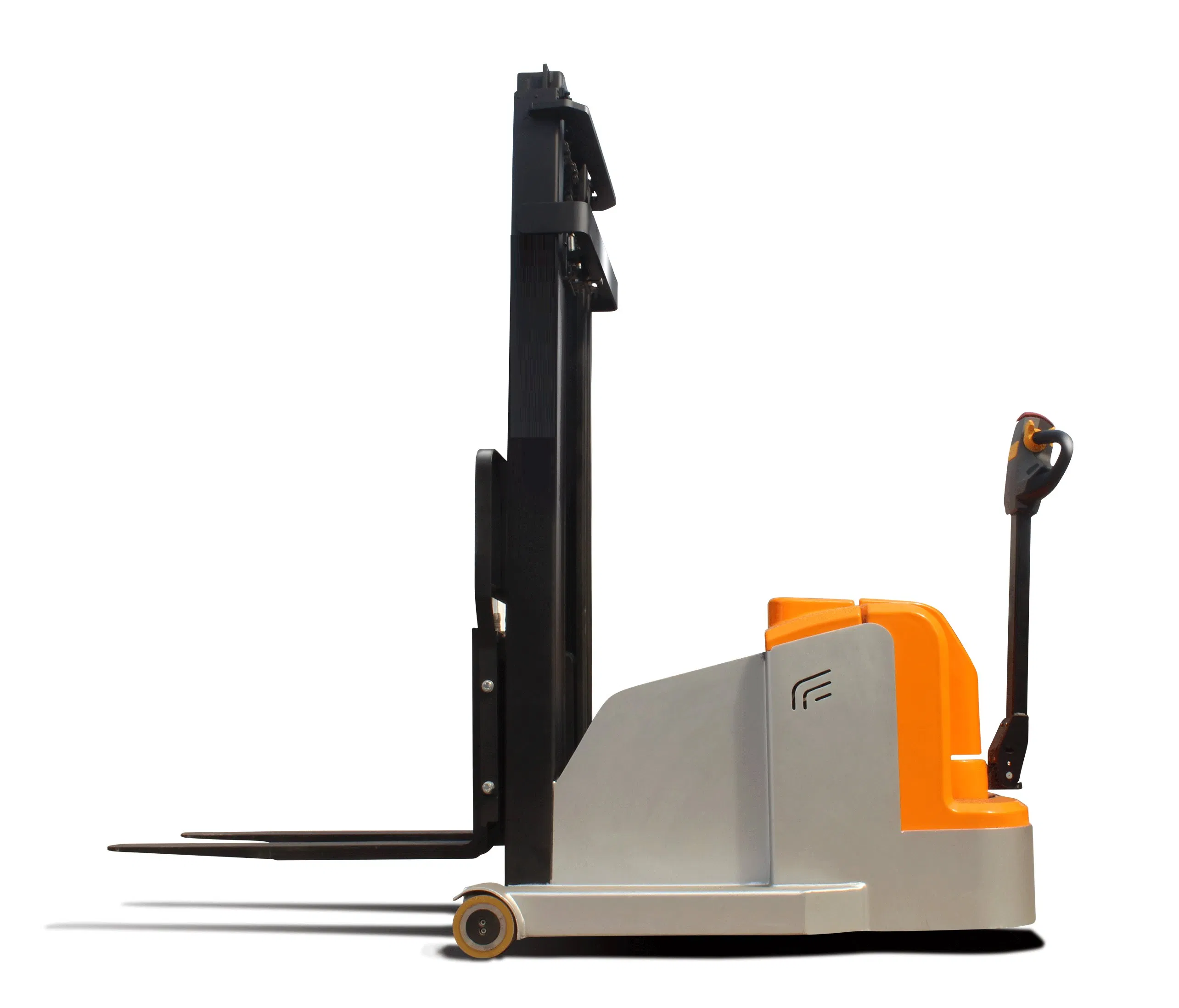

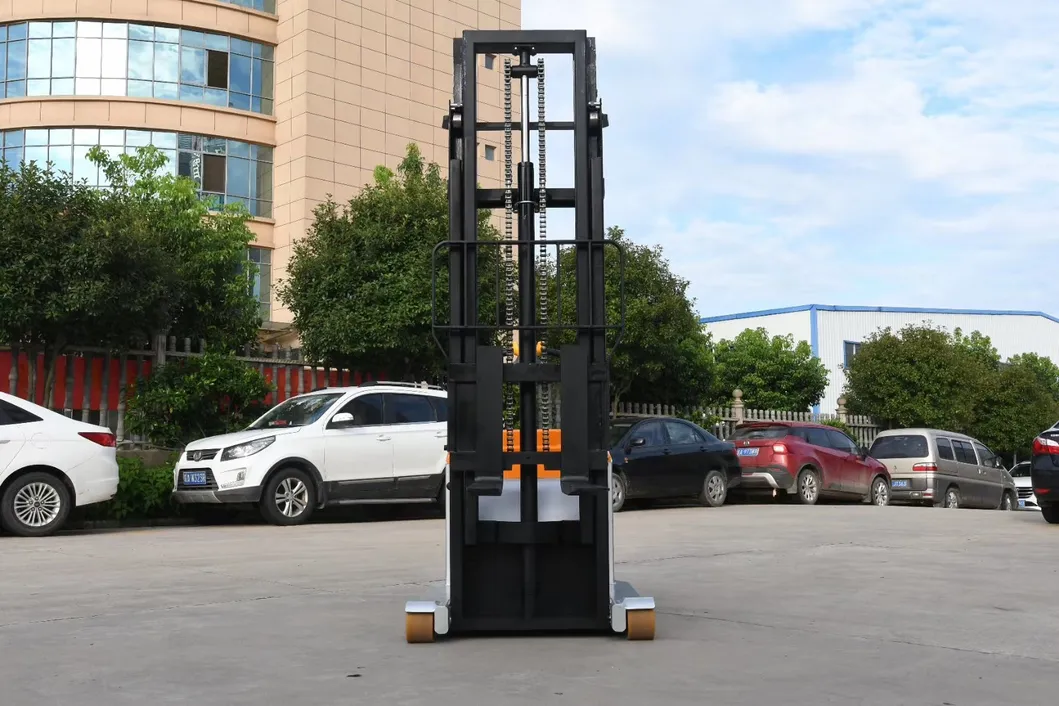

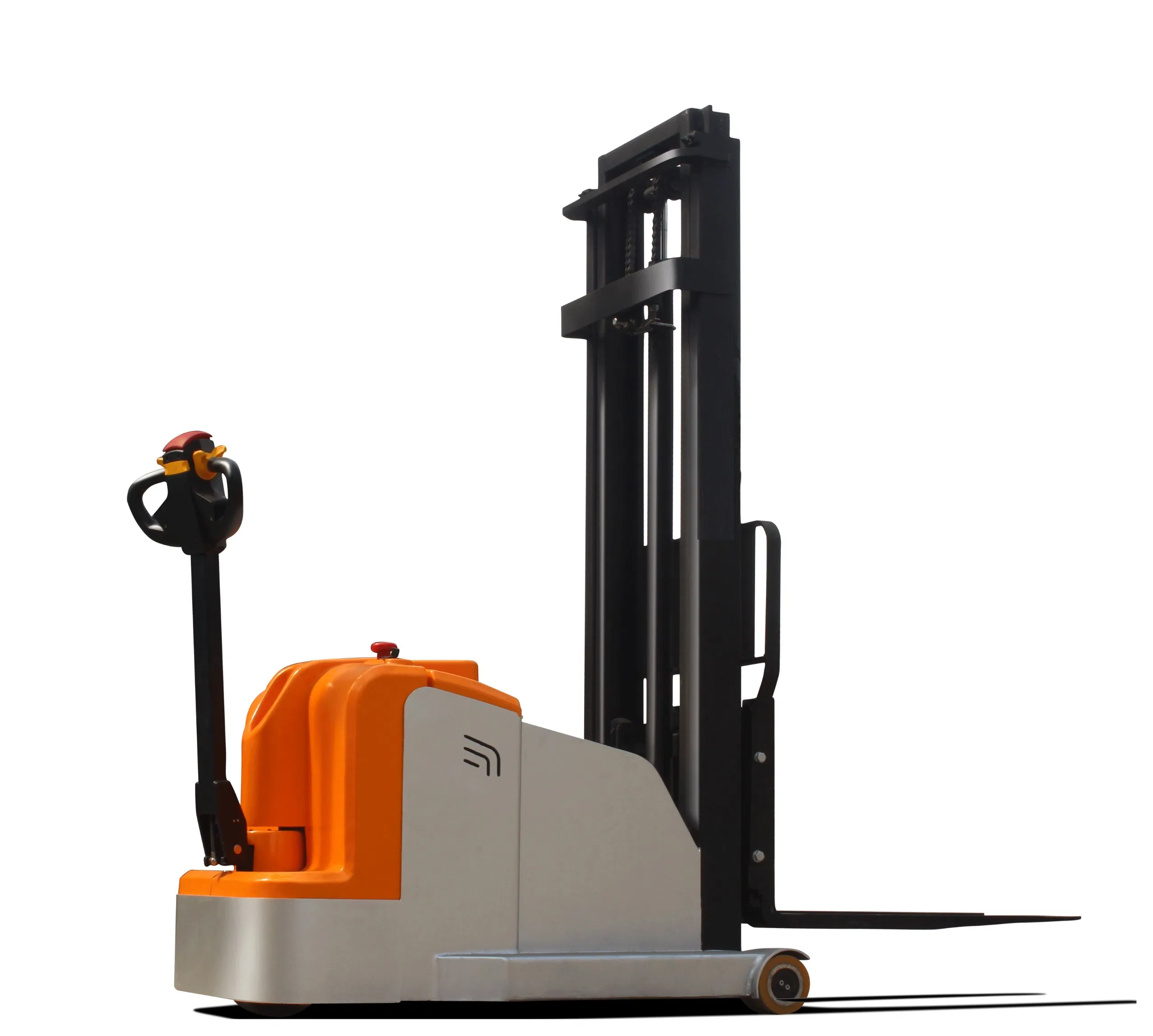

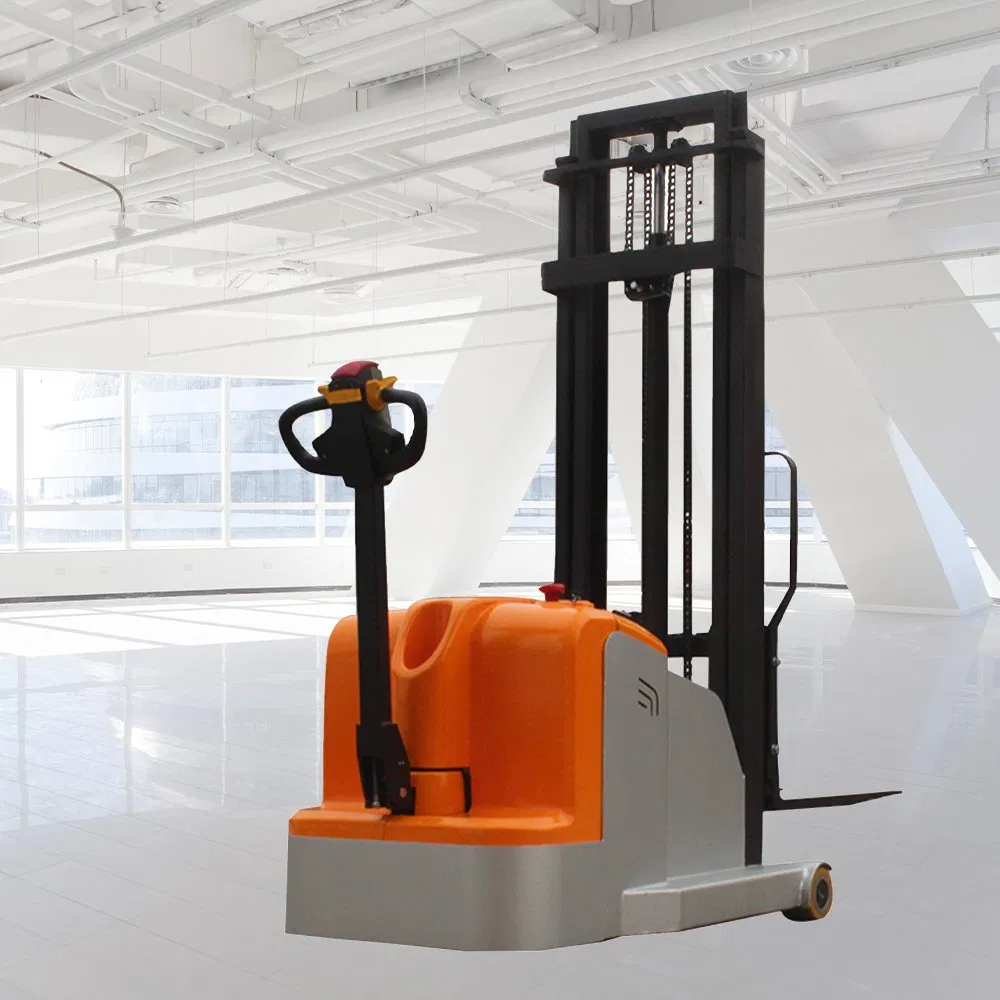

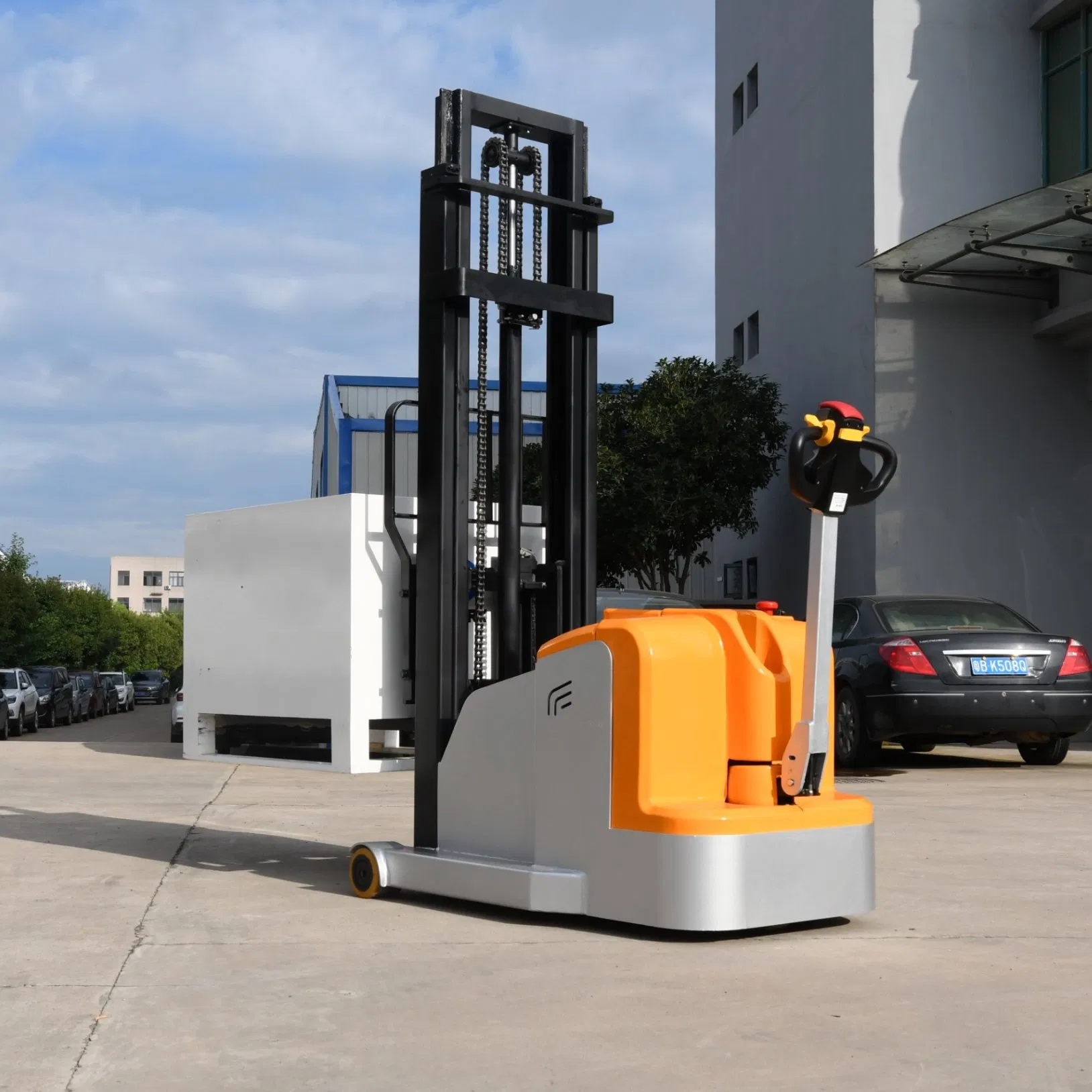

1 Ton (1000kg) Electric Pedestrian Counter Balance Stacker
This electric pallet stacker is designed with a rated capacity of 900kg-1000kg and a lifting height up to 3000mm. Its compact size and lightweight design make it ideal for narrow aisle operations, including usage on different floors and within elevators. The no-fork-leg design allows it to handle both single-deck and double-deck pallets effectively.

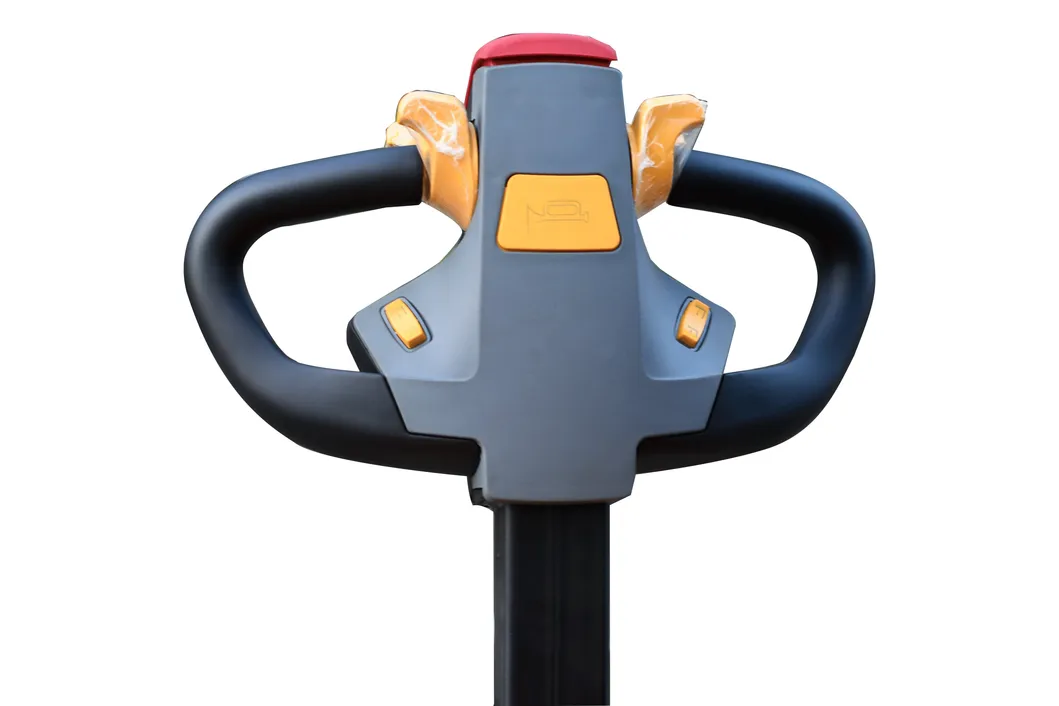

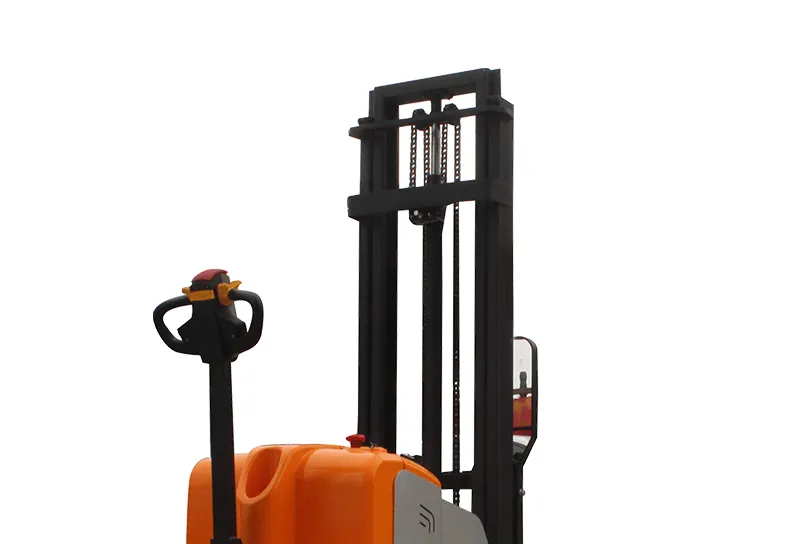

Multi-function Handle: Integrated controls for acceleration, horn, emergency direction, and lift buttons.
| Model | Unit | CDDP09 | CDDP09-Li | CDDP10 |
|---|---|---|---|---|
| Rated load capacity | kg | 900 | 900 | 1000 |
| Load center | mm | 500 | 500 | 500 |
| Self-weight with battery | kg | ~1290 | ~1240 | ~1320 |
| Lifting height | mm | 2500 | 3000 | 3000 |
| Vehicle body length | mm | 2245 | 2245 | 2408 |
| Vehicle body width | mm | 916 | 916 | 916 |
| Min. turning radius | mm | 1257 | 1257 | 1428 |
| Battery | V/Ah | 24/100 | 24/50 | 24/100 |

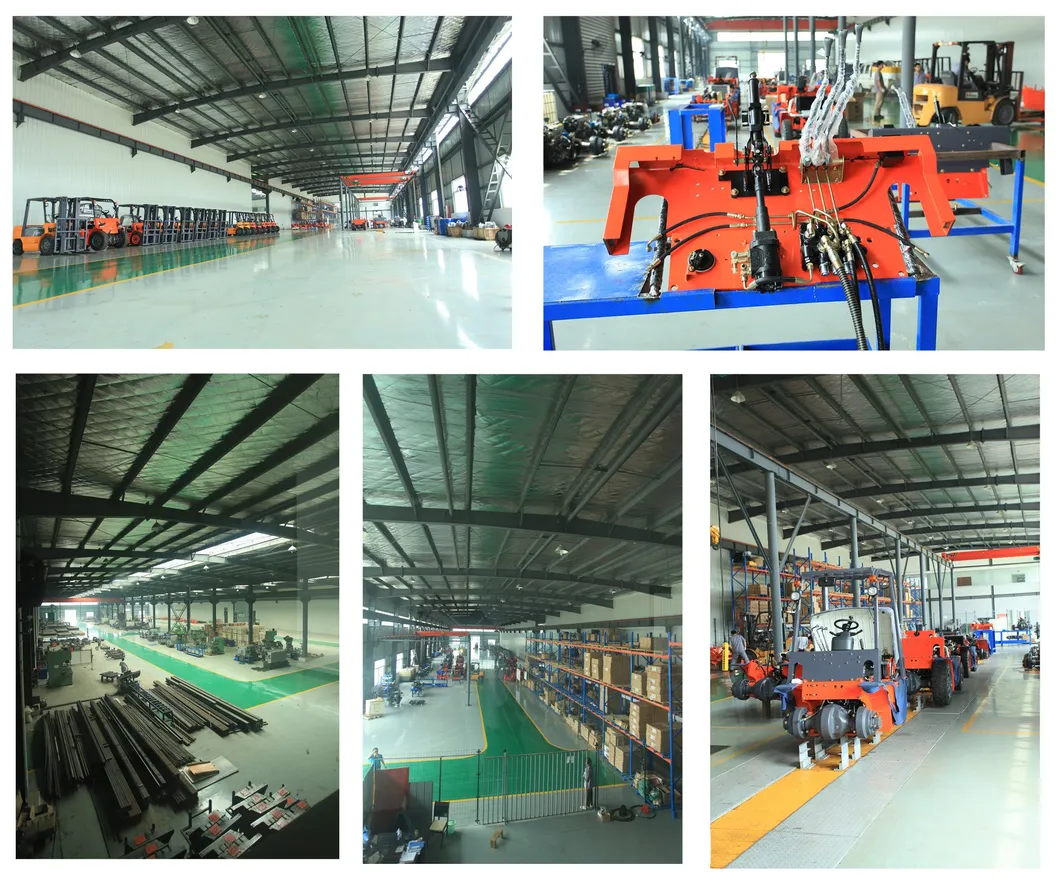

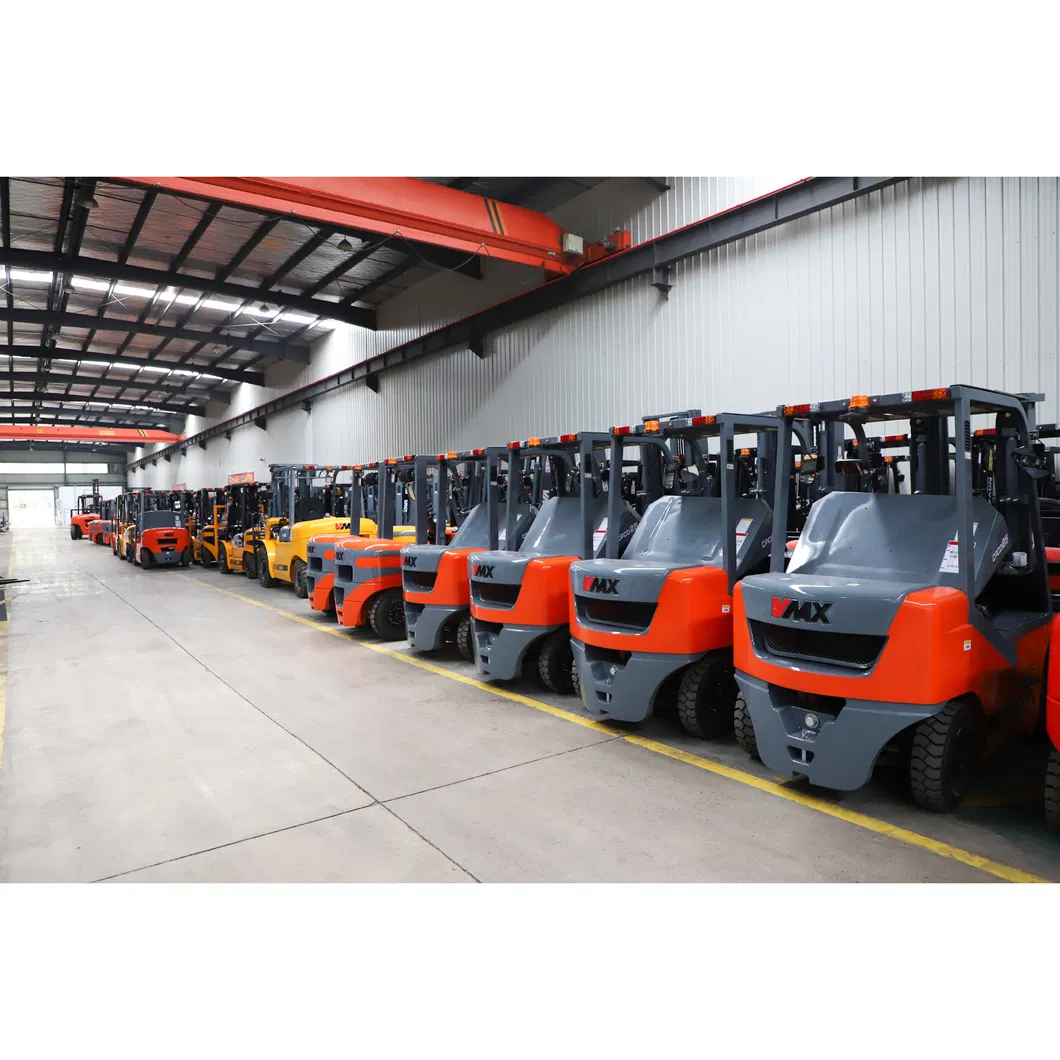

Our manufacturing facility specializes in a complete range of material handling equipment, from 1.0-18.0t internal combustion forklifts to electric counterbalance units and pallet stackers. We are committed to new energy strategies, focusing on lithium and hydrogen fuel cell development to meet global sustainability targets.
