Quick-Release Latches PVC High Load Capacity Folding Premium Steel Truck Unloading Tail Gate Lift

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

i

Basic Information

Model NO.	CD-QBTK05/105A
Material	Steel/Aluminum
Single Lifting Weight	2000kg
Type	Folding Tail Lift
Usage	Tail Gate for Truck, Van, Cargo Pickup
Certificate	ISO9001, CE
Color	Custom Color
Description	Heavy Truck Spare Parts
Transport Package	Pallet
HS Code	8428909090

★

Product Overview

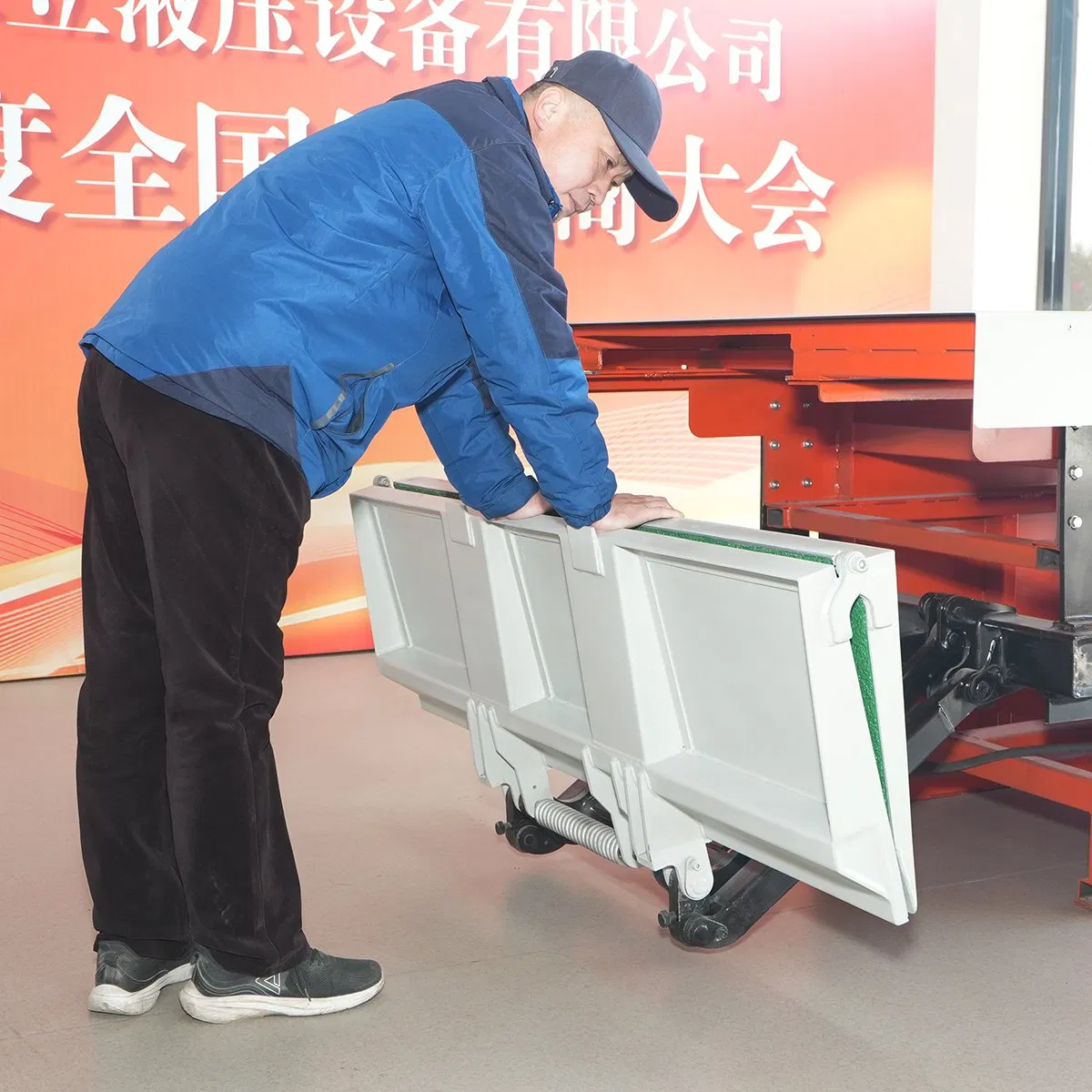

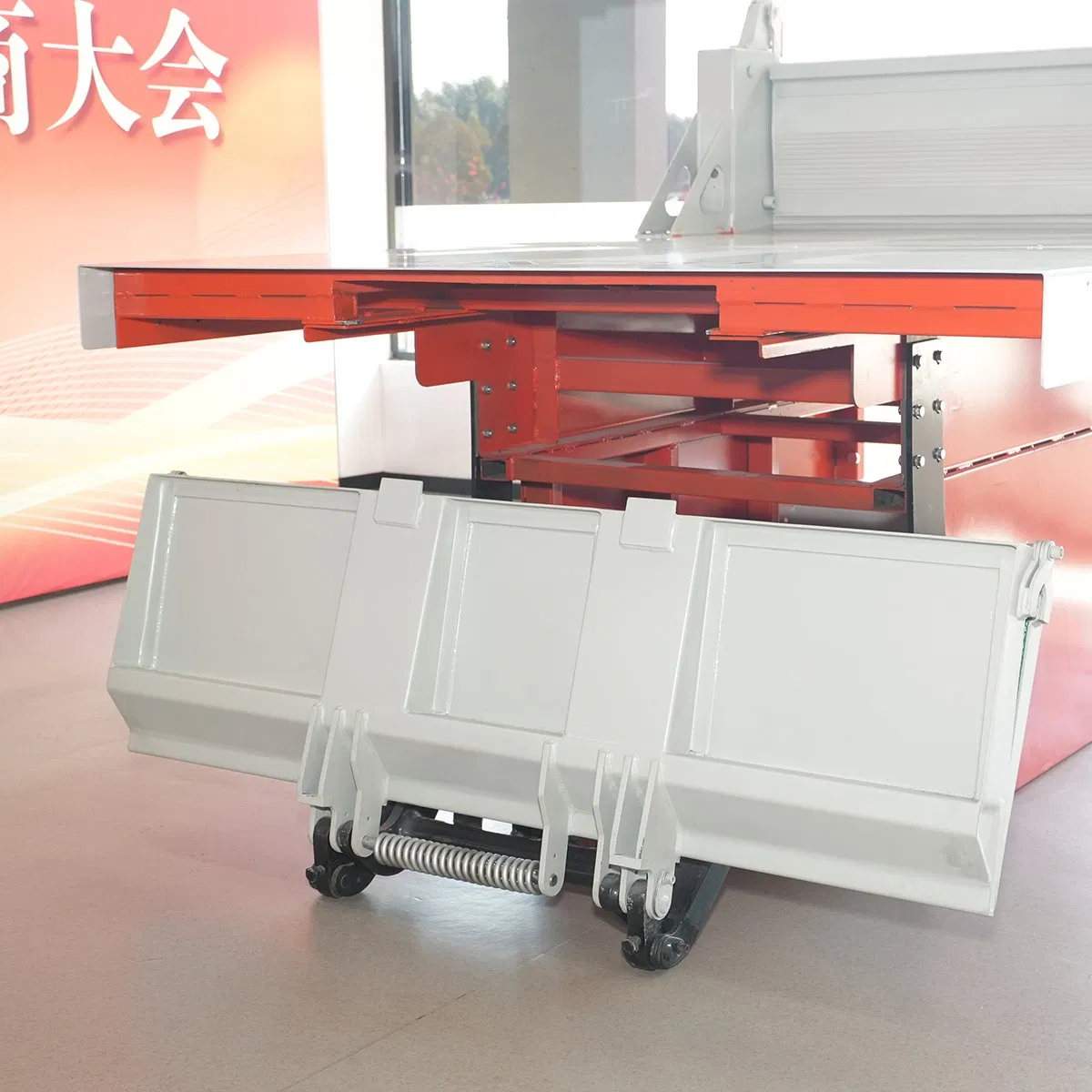

500kg Series Single-Cylinder Dual-Folding Built-In Tail Lift

Designed for compact and efficient performance, this tail lift is ideal for vehicles requiring space-saving solutions.

Single-Cylinder Lift, Manual Folding: Compact and user-friendly design.
Lightweight Construction: Features a PVC loading platform for reduced weight.
Built-In Installation: Fits seamlessly under the vehicle, achieving zero-tail clearance without interfering with door operation or reversing.
Patented Follow-Up Mechanism: Enables automatic tilting for smooth loading and unloading.
Simple and Reliable Hydraulic System: Operated with just two buttons for ease of use.
Customization Services Available: Lifting weight ranging from 500KG to 2000KG to suit specific requirements.

⚙

Technical Specifications

Platform size	1600mm W × 975mm H (customizable)
Lifting capacity	500kg
Lifting Height	1050mm
Working Pressure	16MPa
Power Pack	12V / 24V (DC)
Lifting speed	80mm/s
Weight	200kg

P

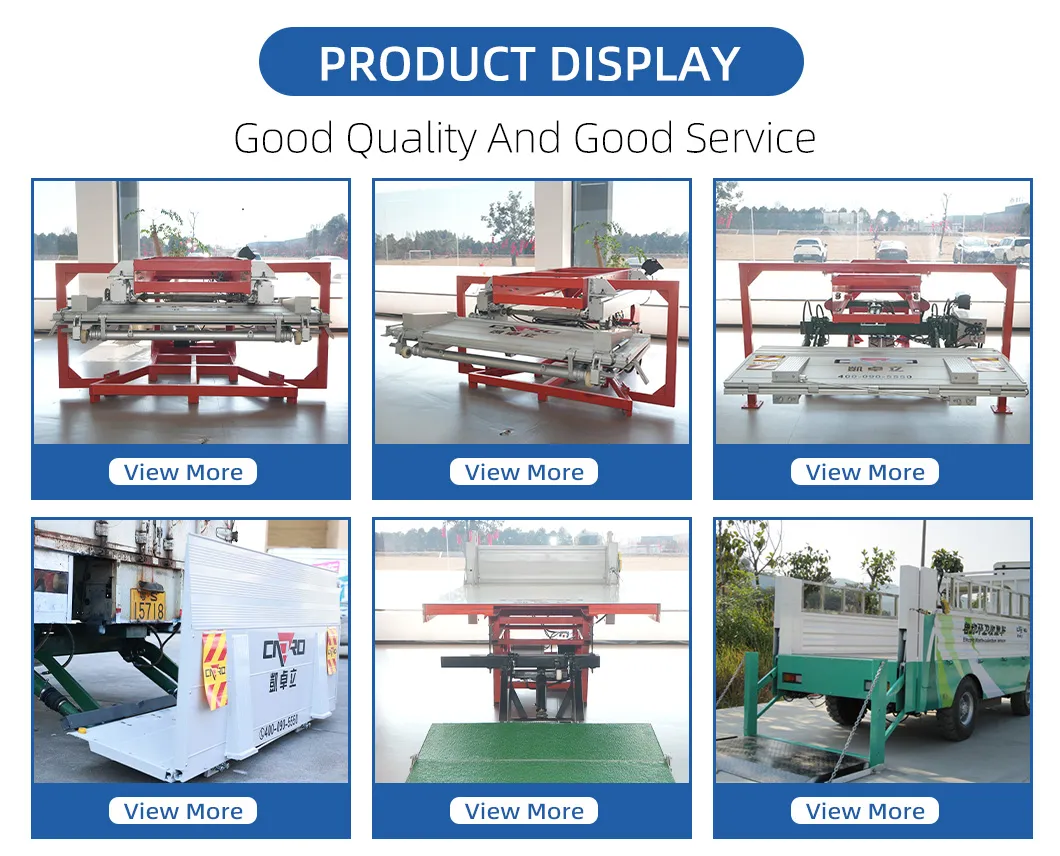

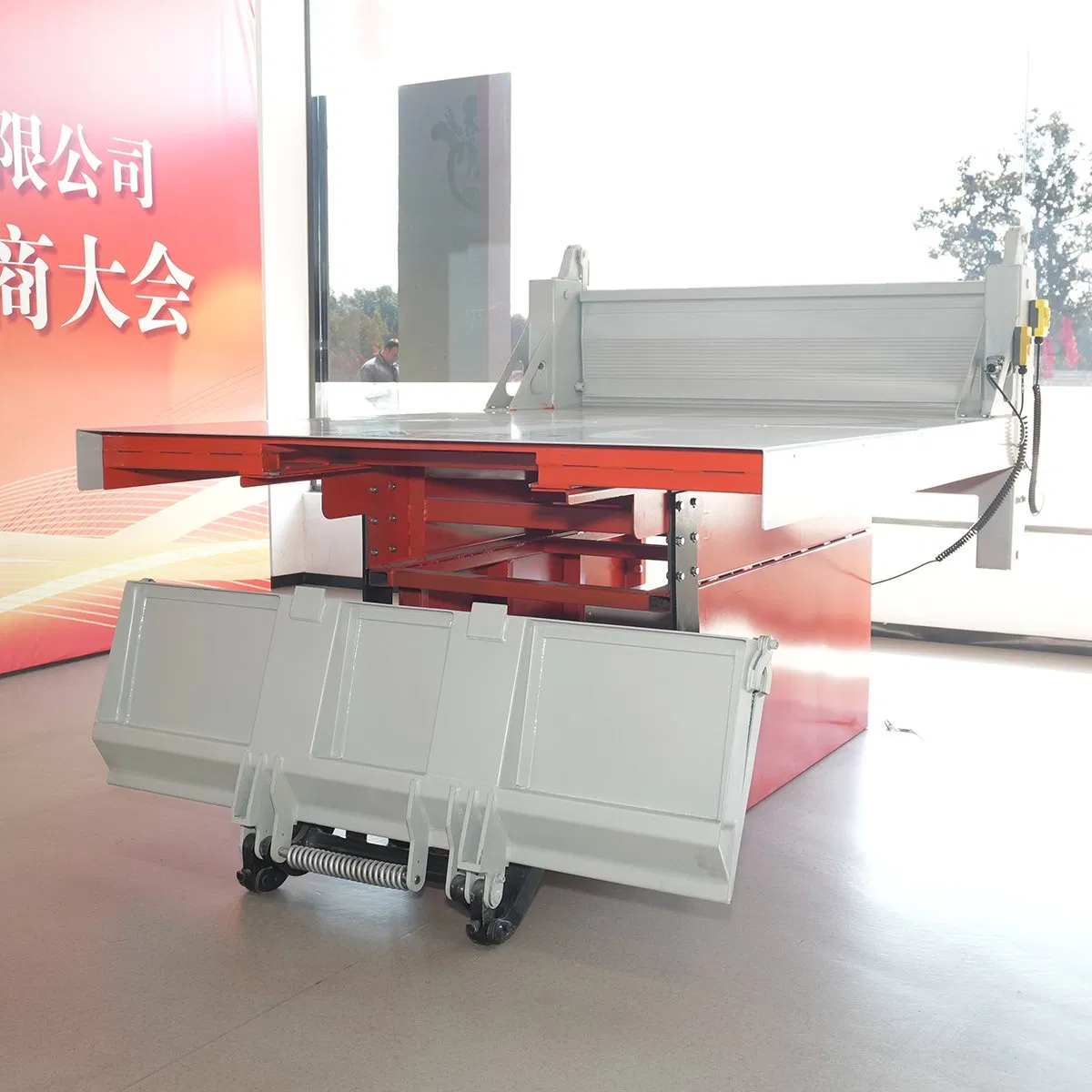

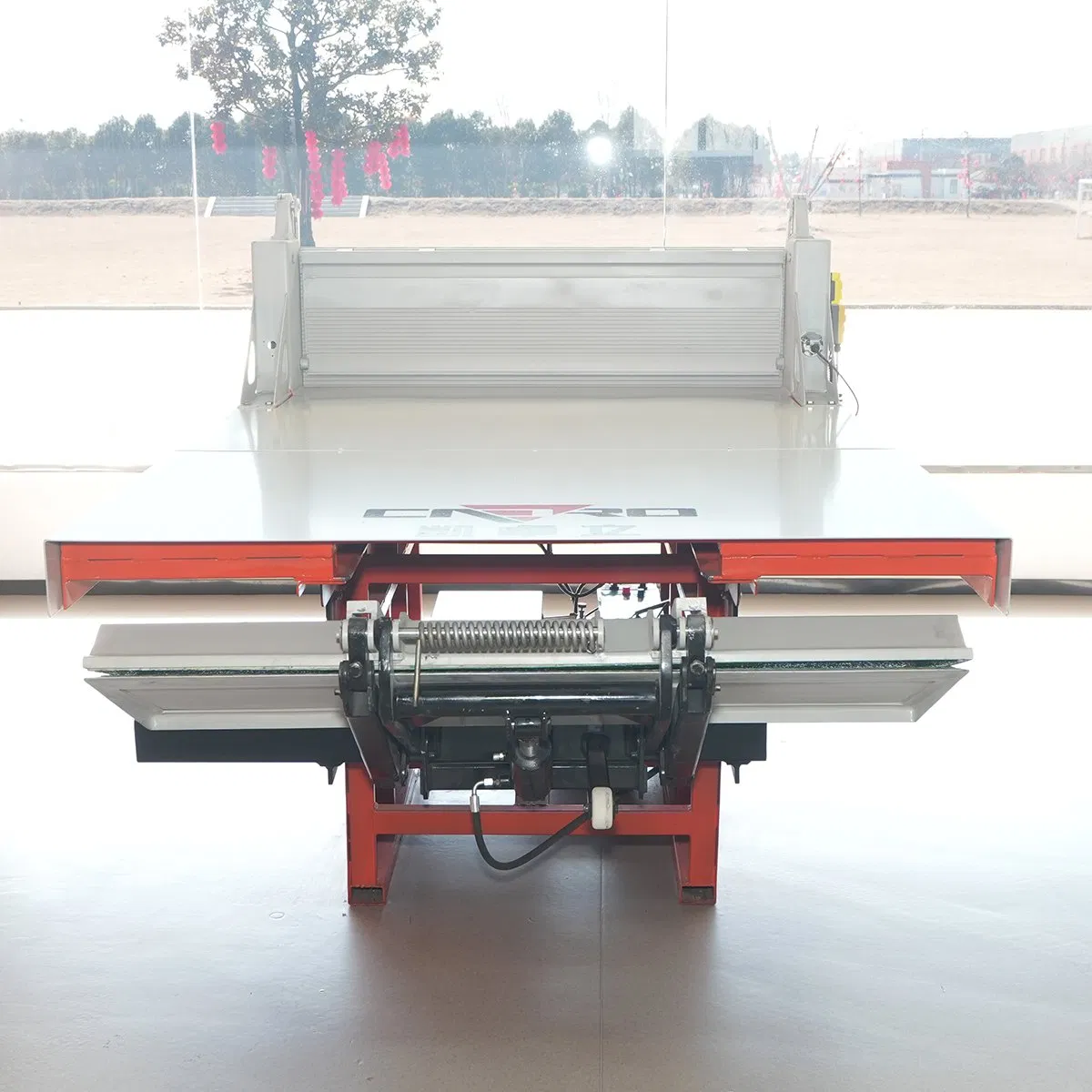

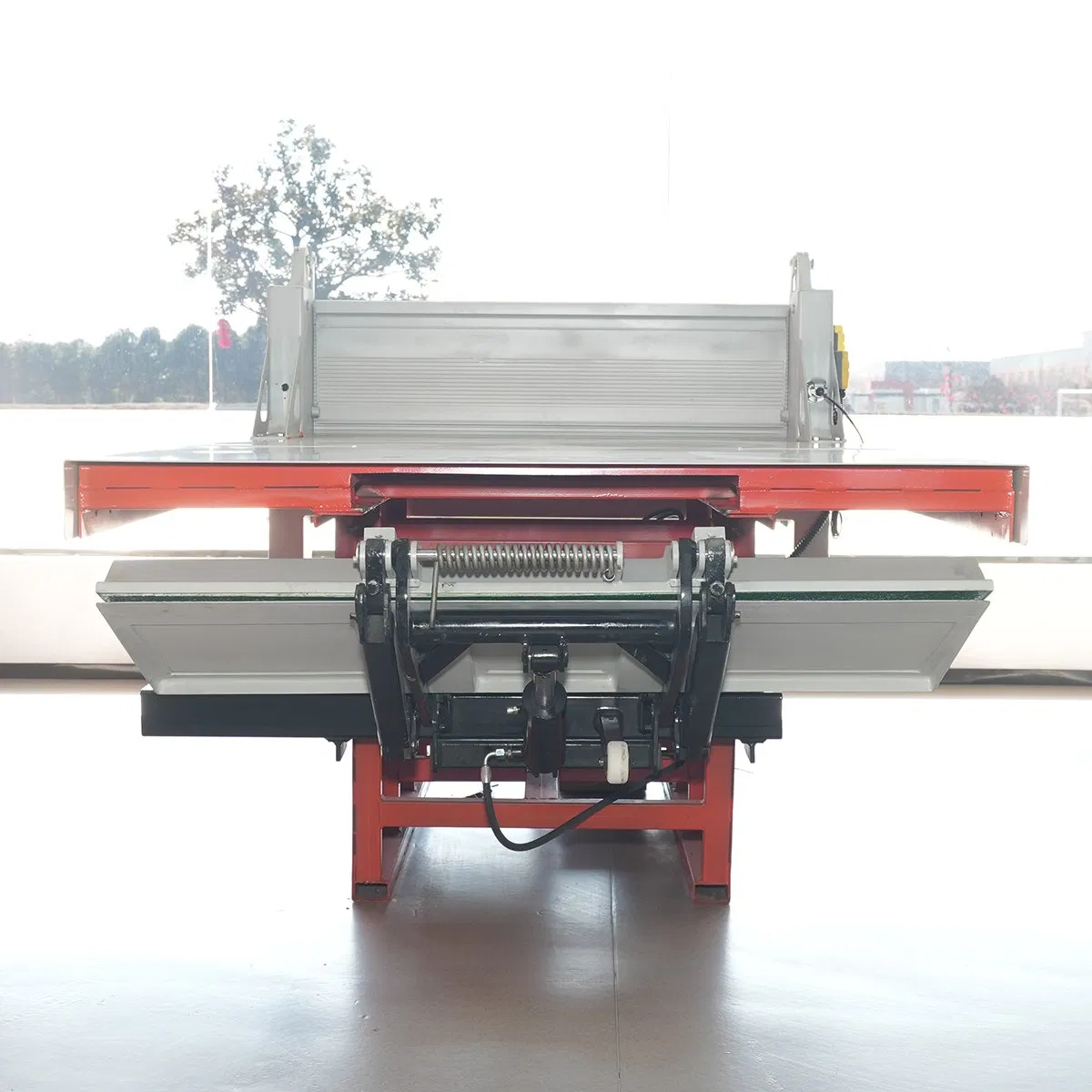

Detailed Photos

✔

Our Advantages

30 years of expertise in hydraulic tail lift technology.

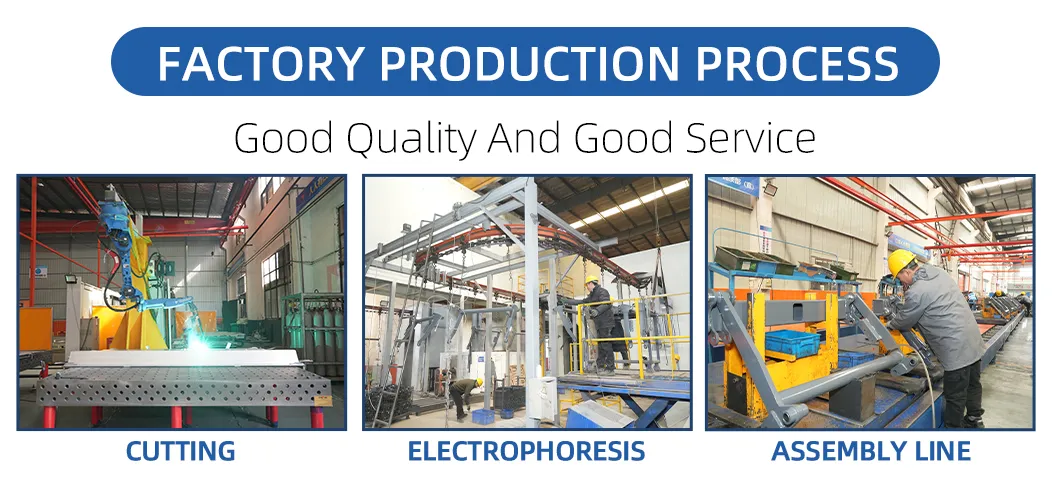

Large-scale production base with fully automated lines.
Advanced robotic welding and painting technologies for durability.
Annual output exceeding 50,000 units.

Q

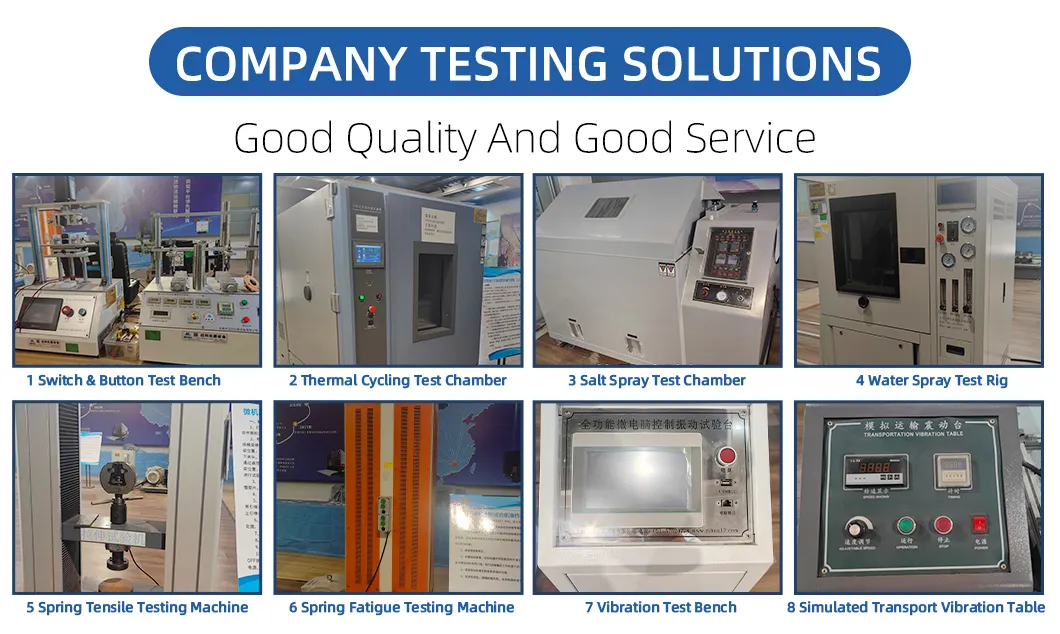

Testing & Quality Solutions

Every component undergoes systematic testing in our advanced laboratory to validate performance against tough real-world conditions.

Precision-Controlled Processes with strict SOPs.
Custom validation for unique environments (cold storage, off-road).
Full traceability with certified test reports.

M

Exhibition & Logistics

?

Frequently Asked Questions

What is the maximum lifting capacity for this model?

The standard capacity for this series is 500kg, but we offer customization options for lifting weights ranging from 500kg up to 2000kg to meet your specific vehicle requirements.

What materials are available for the platform?

You can choose between high-strength Steel or lightweight Aluminum. We also feature specialized PVC loading platforms for specific lightweight applications.

Does the installation interfere with the rear doors?

No. Our built-in installation design fits seamlessly under the vehicle. This achieves zero-tail clearance, ensuring the tail lift does not interfere with door operation or reversing.

What power source is required for the hydraulic system?

The power pack is compatible with both 12V and 24V DC systems, making it suitable for a wide range of trucks, vans, and pickups.

What surface treatments do you offer for rust prevention?

We provide multiple surface treatment options including Electrophoresis, Hot Dip Galvanizing, and Anodization to ensure long-term durability in various weather conditions.

Can the platform size be customized?

Yes, while the standard size is 1600mm W × 975mm H, the platform dimensions can be fully customized to perfectly fit your specific vehicle body.
