EFFICIENT & DURABLE HAND PALLET TRUCK FOR WAREHOUSE OPERATIONS
Our hydraulic manual pallet truck is engineered with an economical yet robust design, featuring a lightweight steel structure weighing only 70kg while delivering exceptional load-bearing performance.
This versatile pallet jack truck comes with a standard epoxy resin powder coating that provides superior anti-corrosion and anti-fragmentation protection, ensuring long-lasting use in demanding warehouse environments.

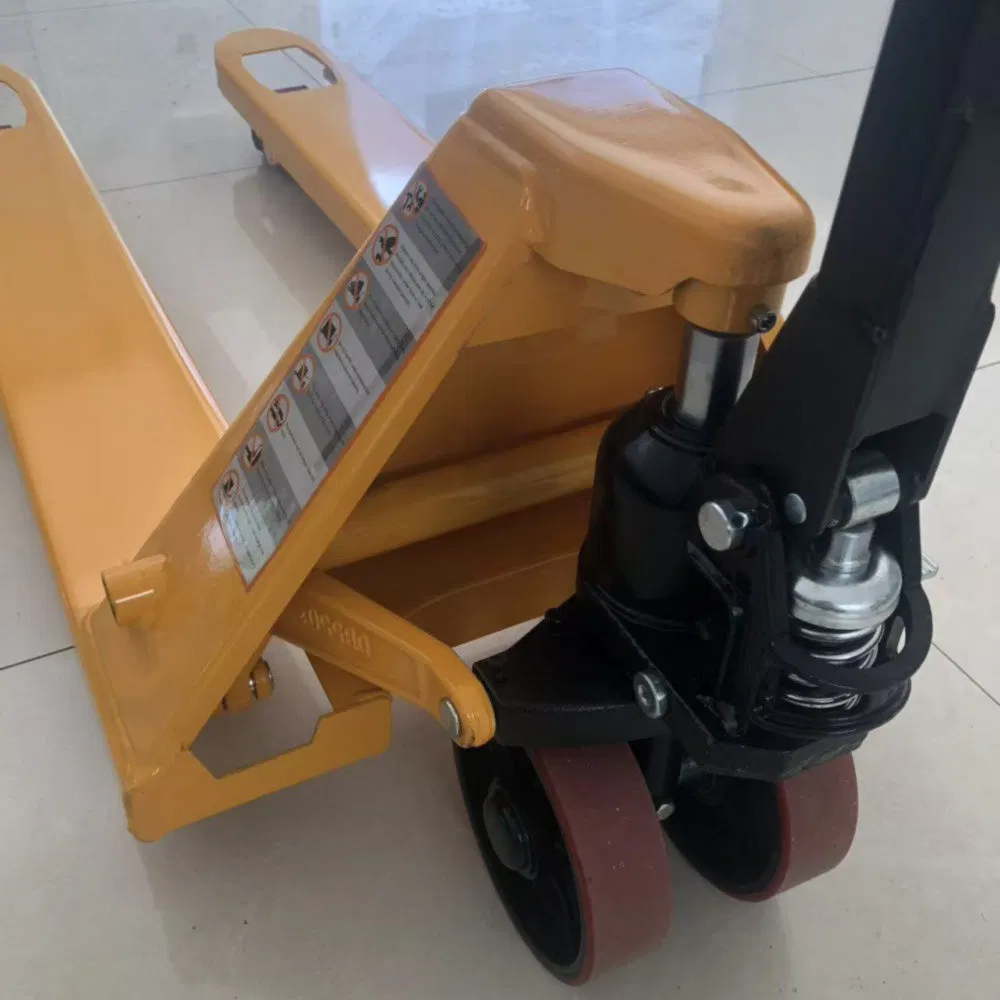

Equipped with a precision three-stage handle control (lifting, lowering, neutral) and a high-efficiency oil pump system requiring only 8 strokes to reach full height, this manual pallet lifter maximizes productivity while minimizing operator fatigue.
| Model | Unit | SDC-A20 | SDC-A25 | SDC-A30 | SDC-A50 |
|---|---|---|---|---|---|
| Load Capacity | kg | 2000 | 2500 | 3000 | 5000 |

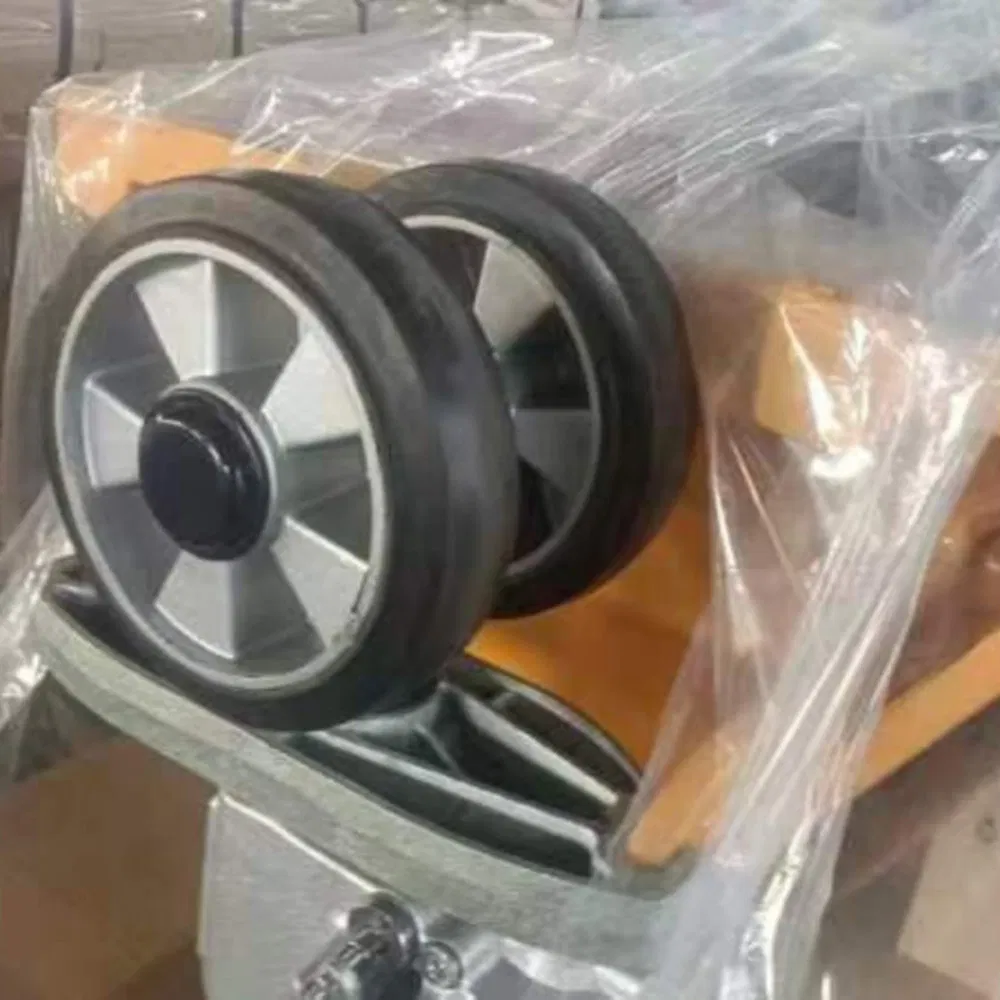

| Front Wheel Size | mm | φ180*50 | φ180*50 | φ180*50 | φ180*50 |
| Rear Wheel Size | mm | φ80*70 | φ80*70 | φ80*70 | φ80*70 |
| Lowered Height | mm | 85 | 85 | 85 | 85 |
| Lifting Height | mm | 110 | 110 | 110 | 110 |

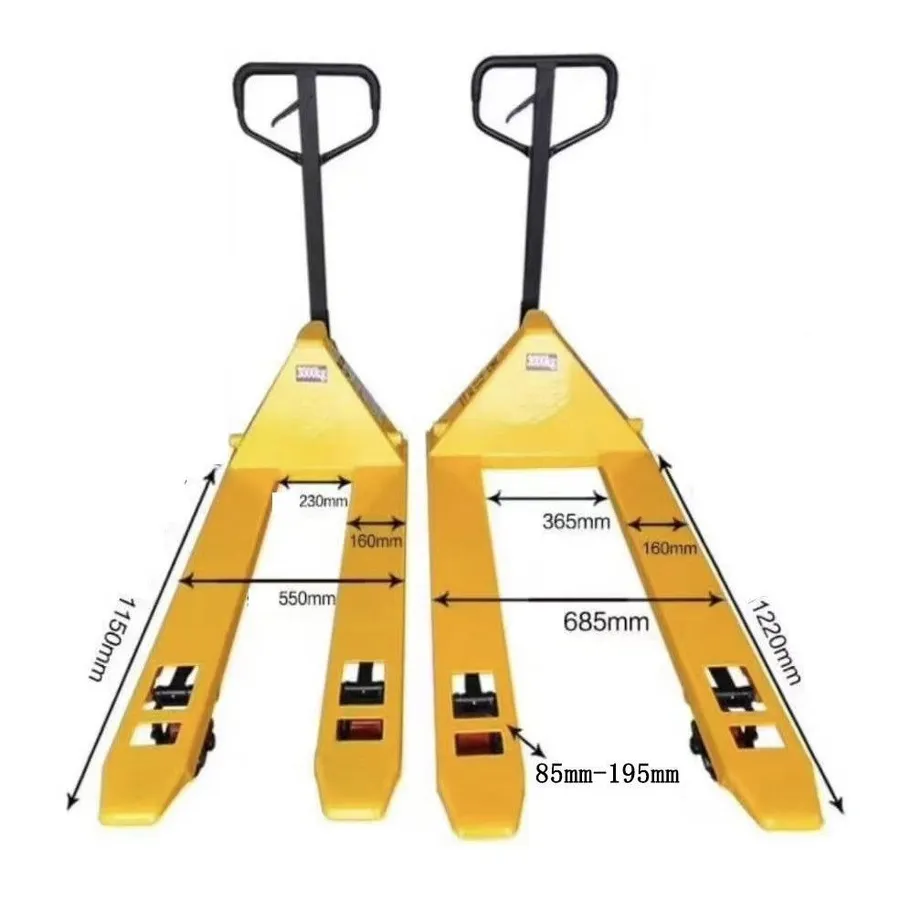

| Overall Length | mm | 1480/1580 | 1480/1580 | 1480/1580 | 1480/1580 |
| Fork Width (Outer) | mm | 550/685 | 550/685 | 550/685 | 550/685 |
| Net Weight | kg | 66 | 70 | 74 | 126 |

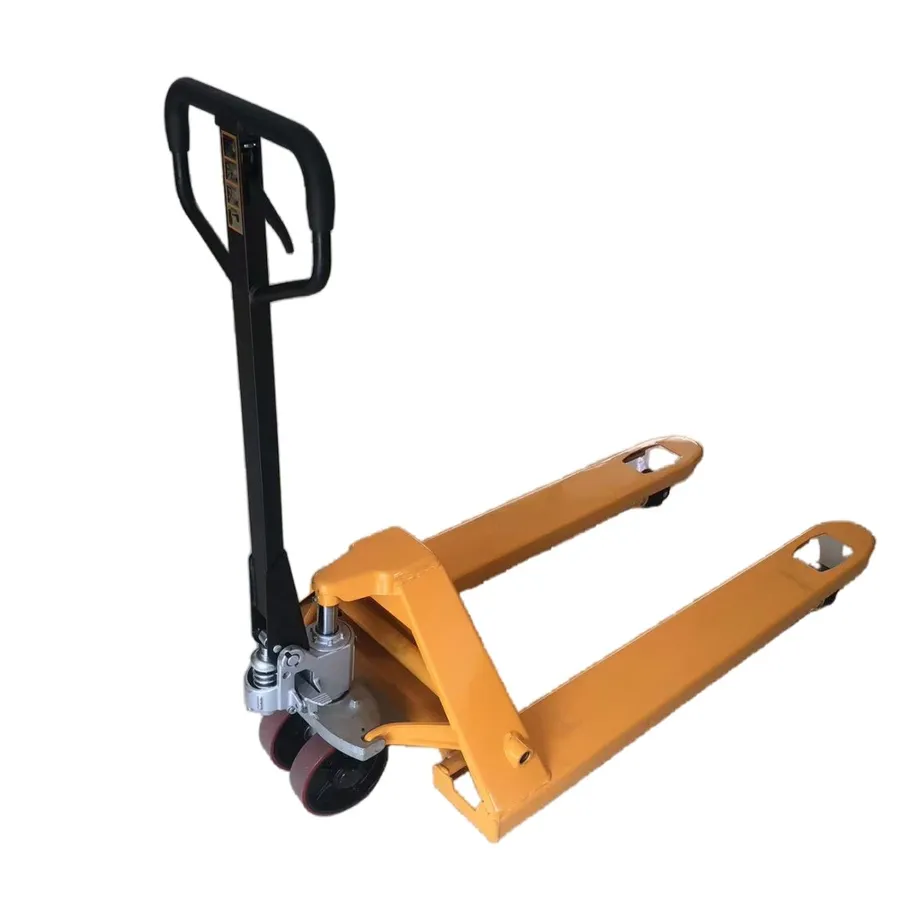

Economic & Cost-Effective
Premium Anti-Corrosion Coating
Ultra-Lightweight Steel

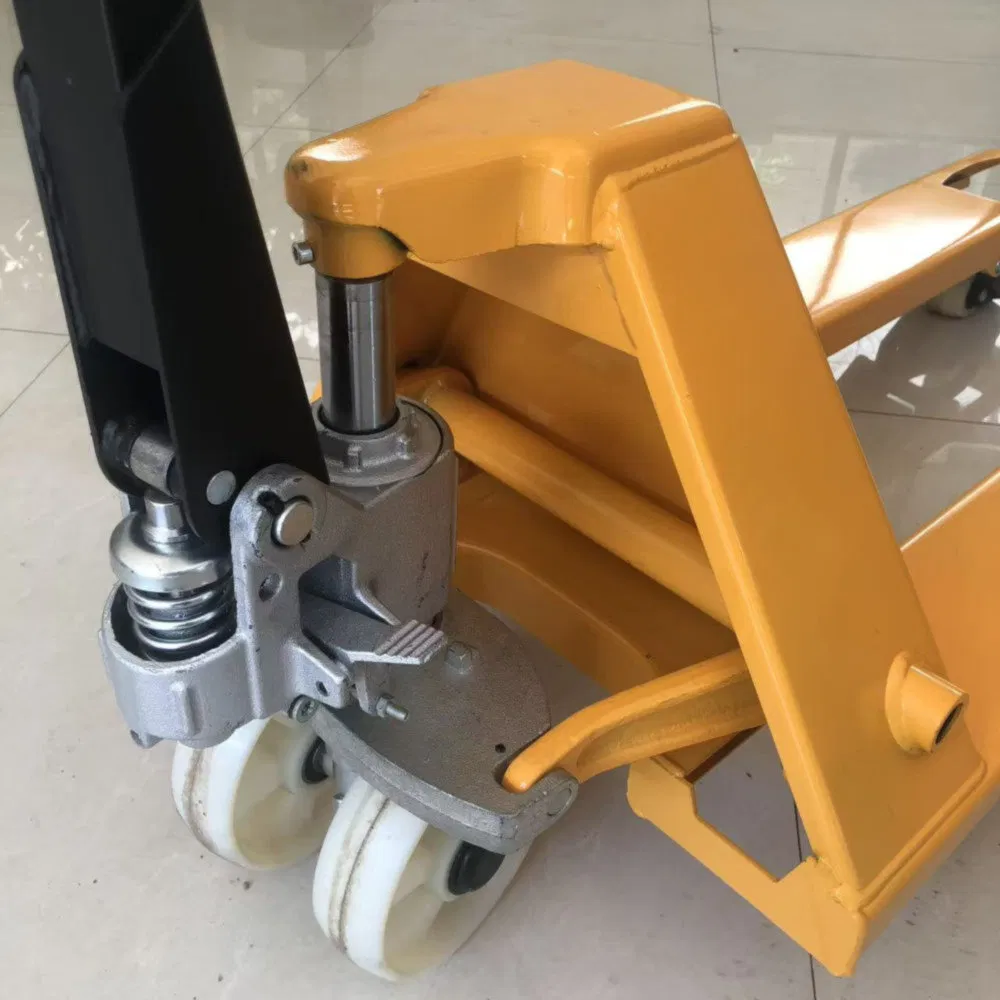

High-Efficiency Hydraulic System

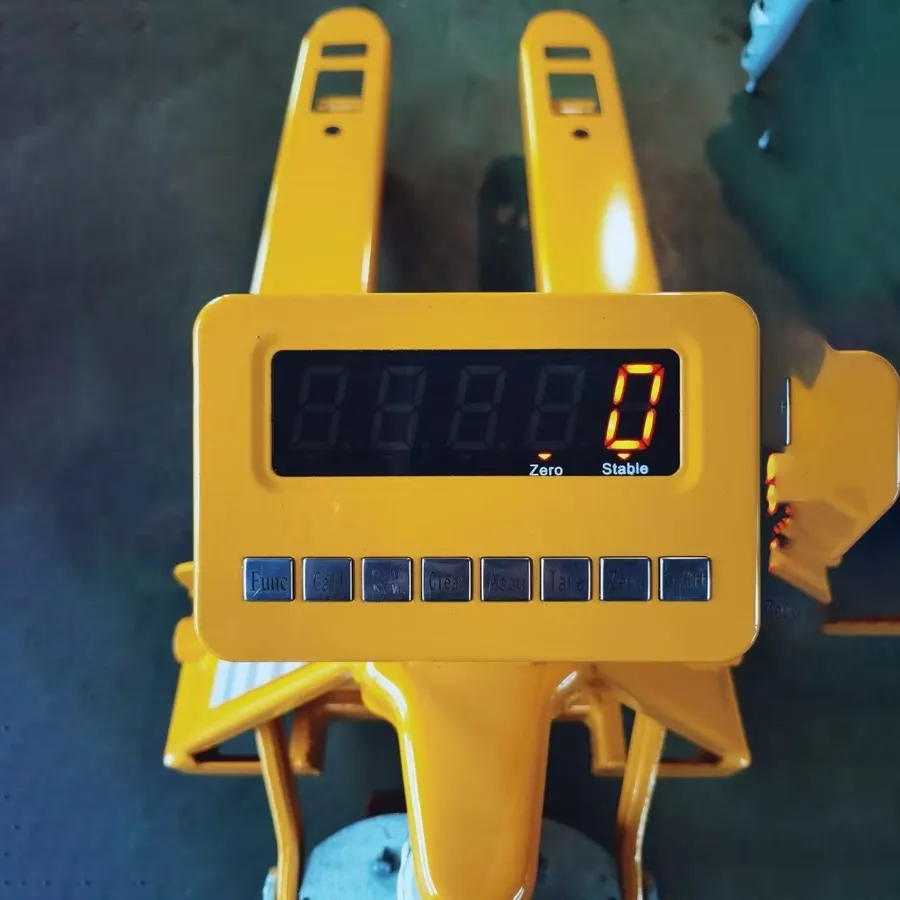

Flexible Customization Options
Ideal for daily pallet handling, inventory movement, and order fulfillment operations in warehouses of all sizes.
Perfect for transporting raw materials, work-in-progress components, and finished goods across production floors.

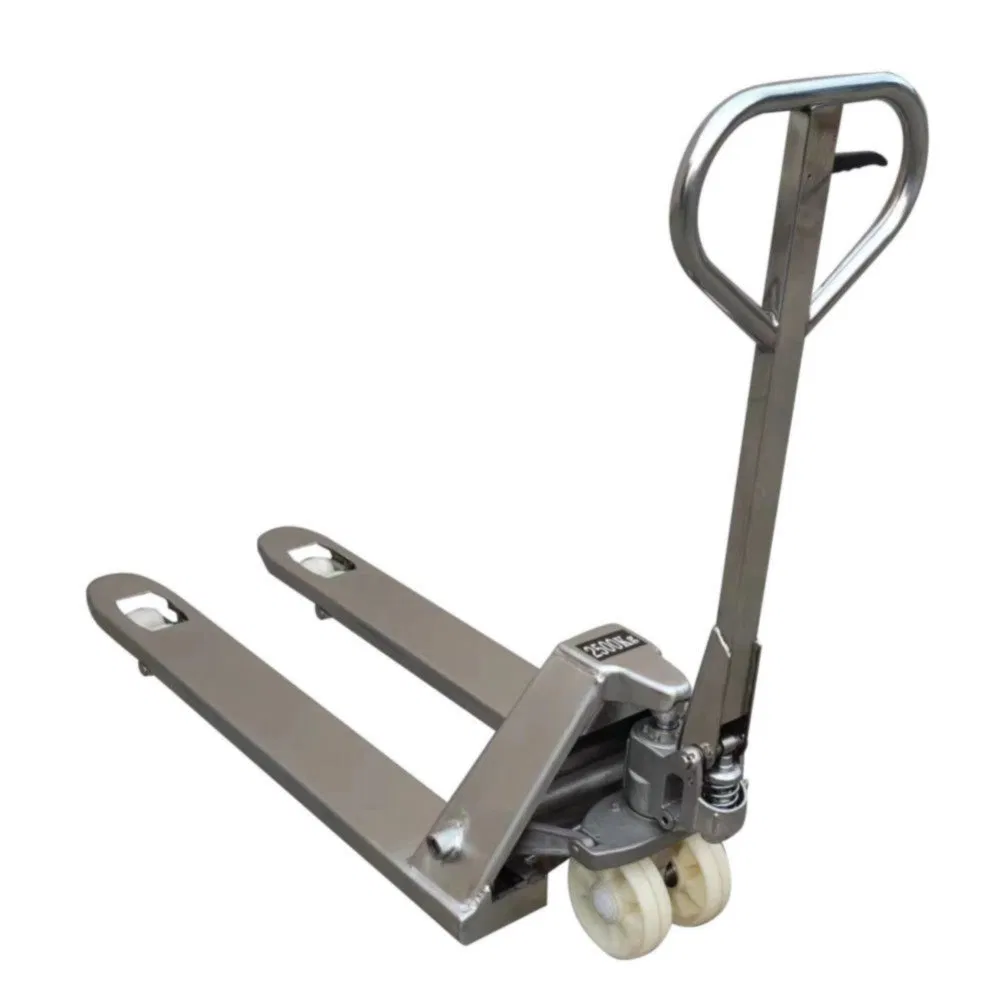

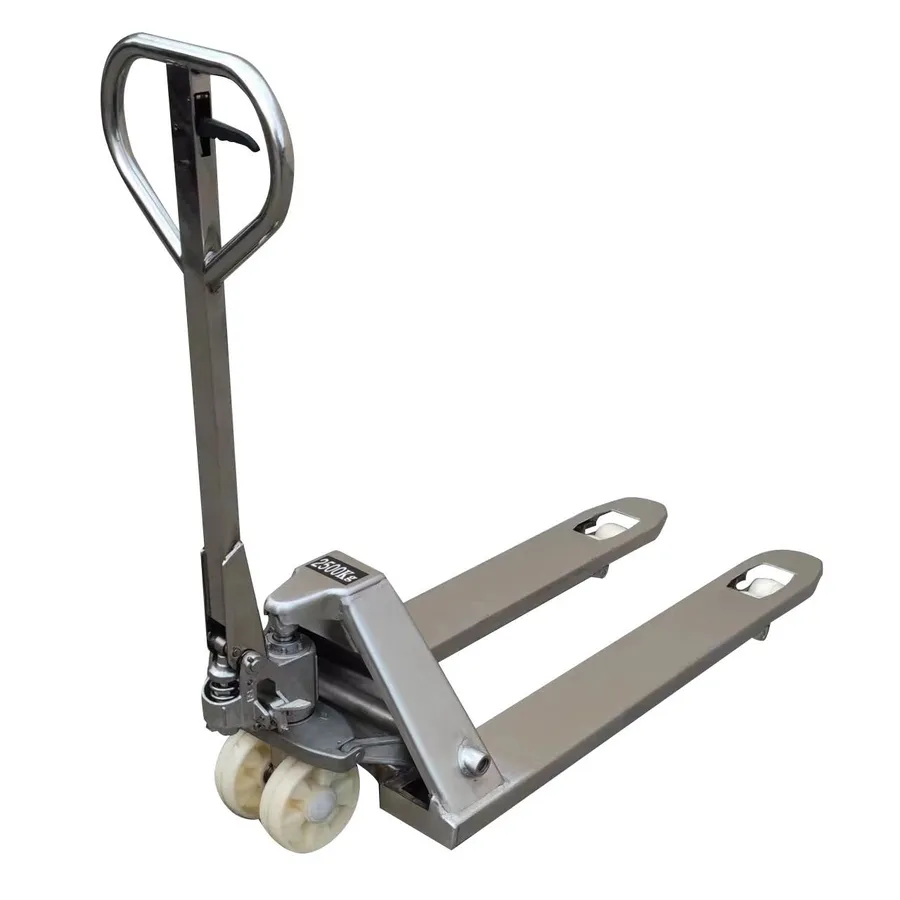

Stainless steel and galvanized options are specifically designed for hygiene-sensitive environments like cold rooms and pharmaceutical facilities.
