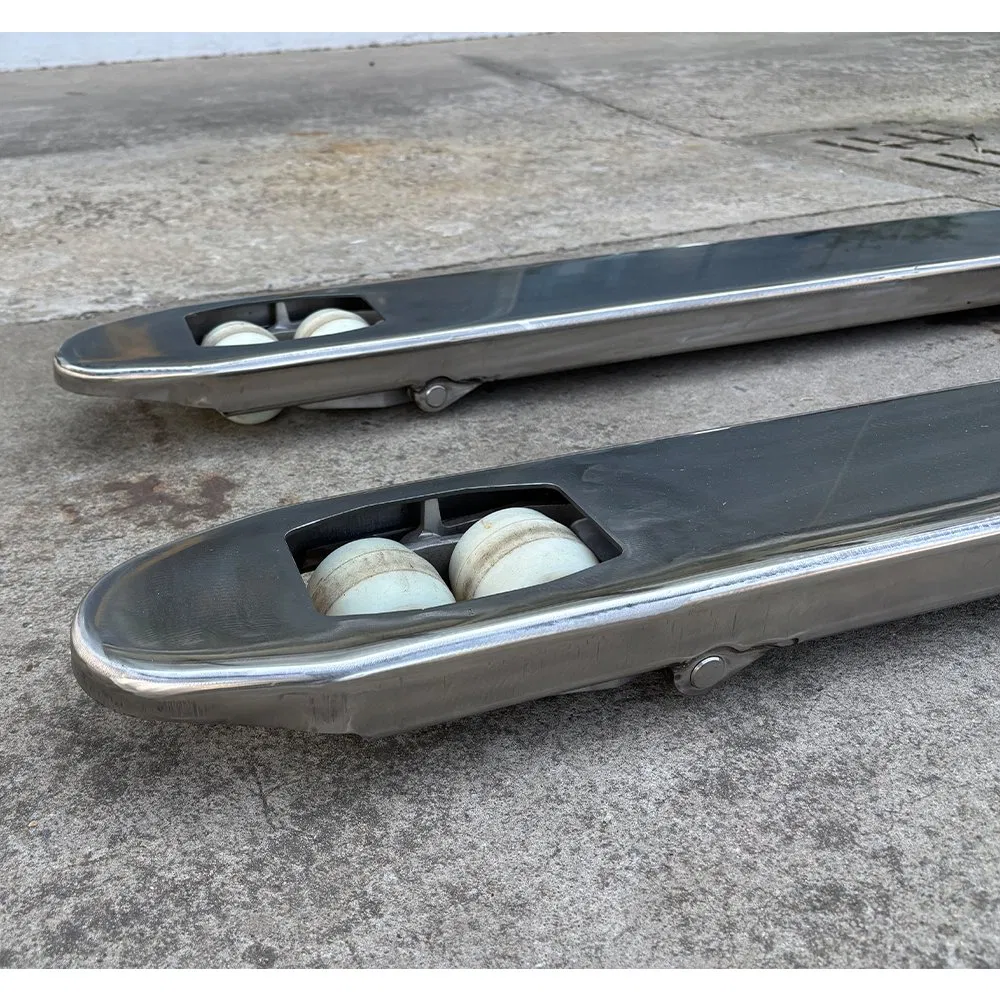

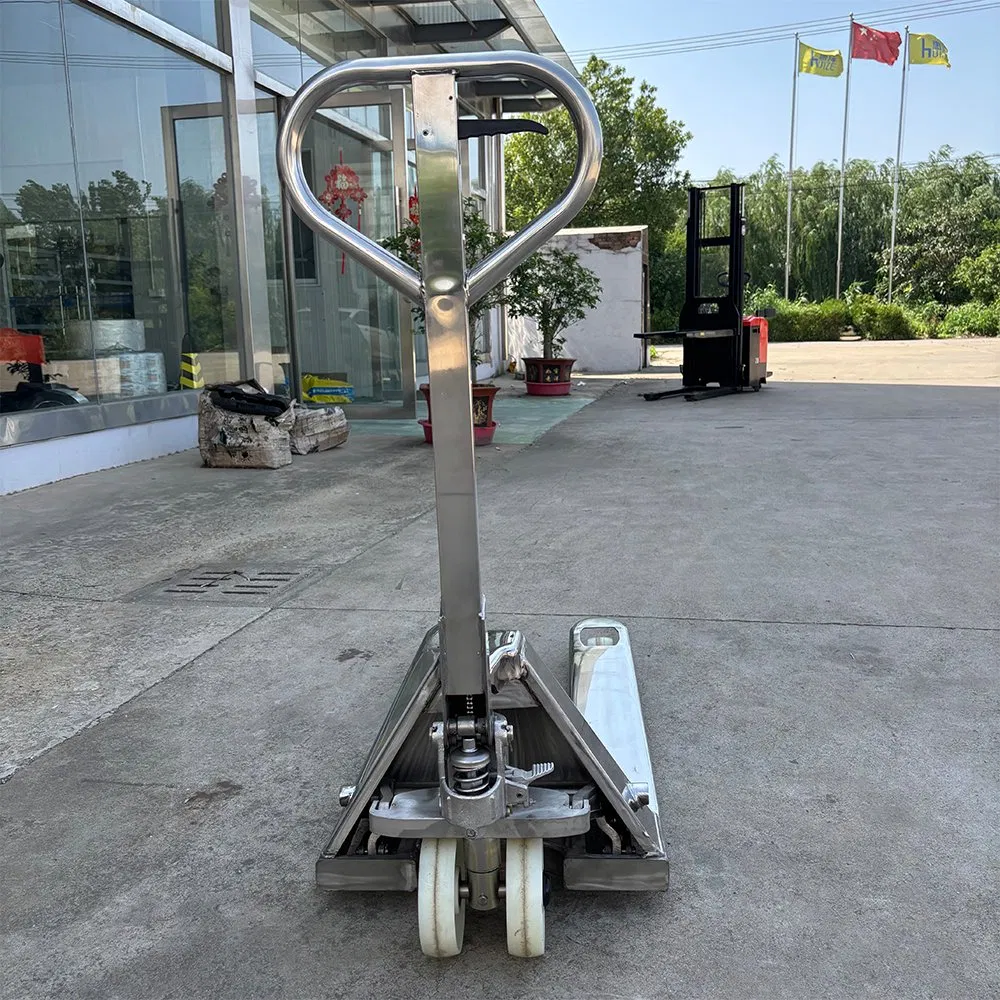

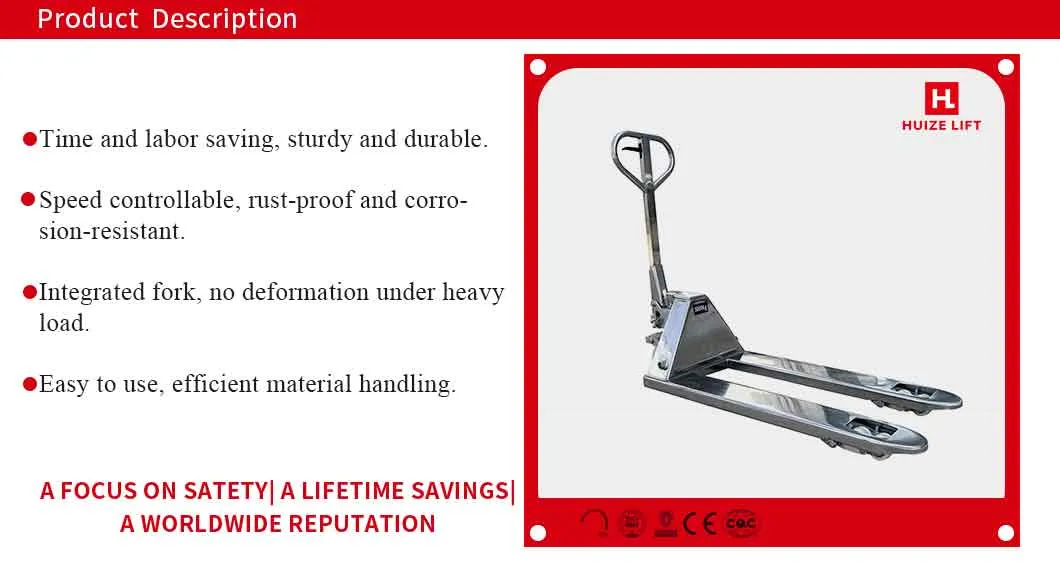

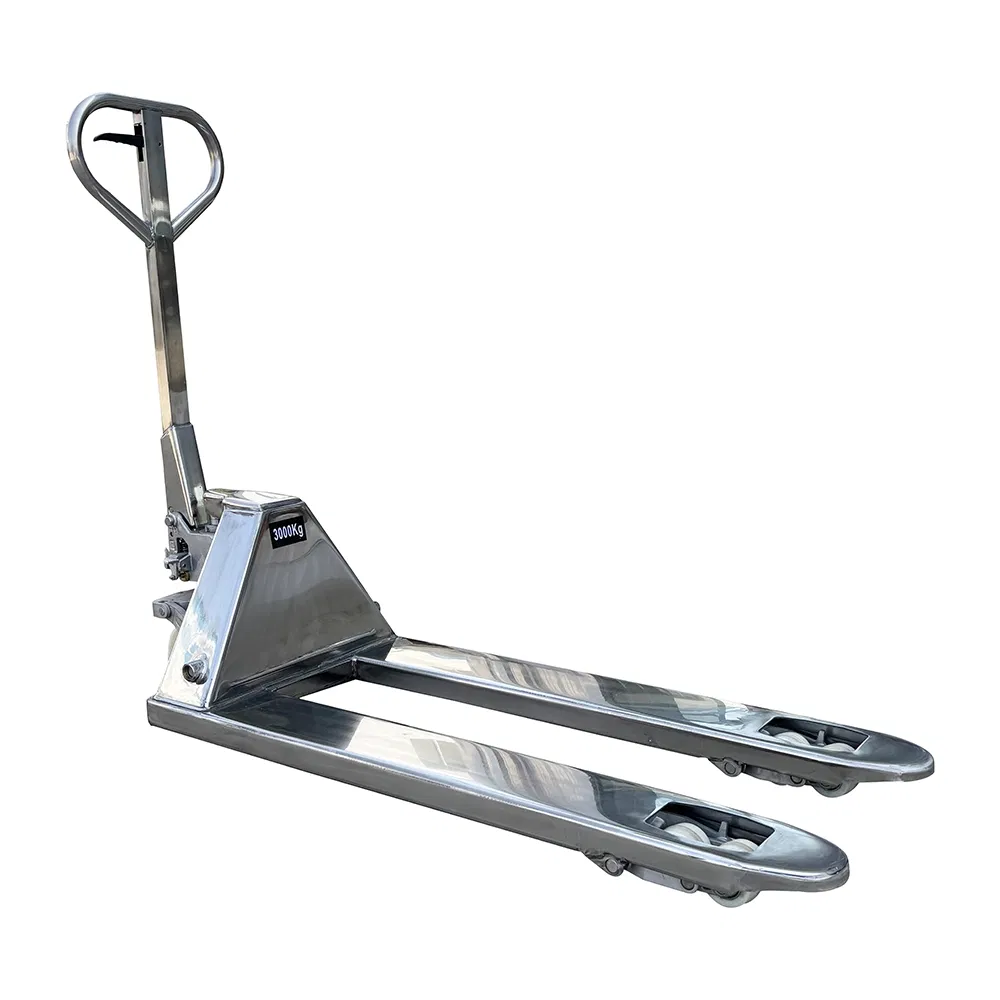

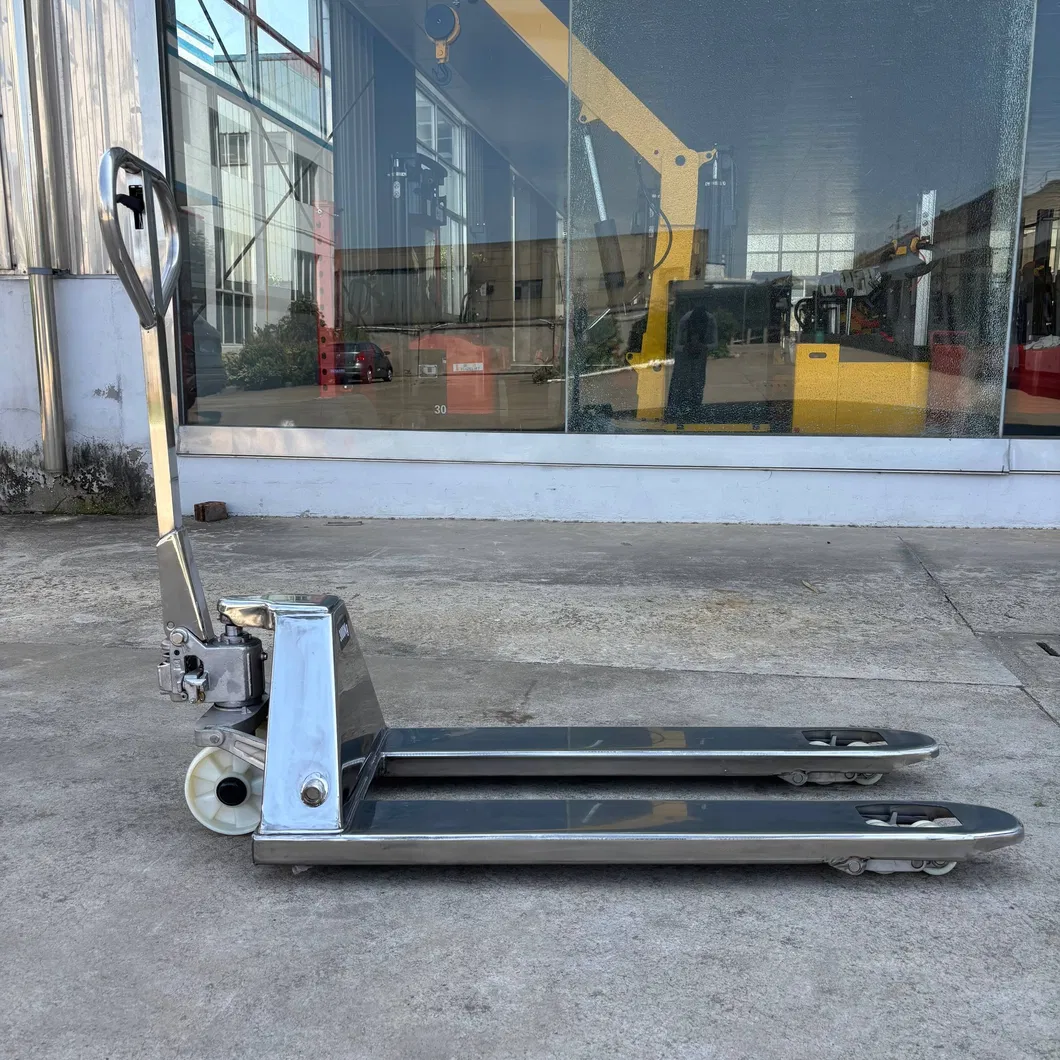

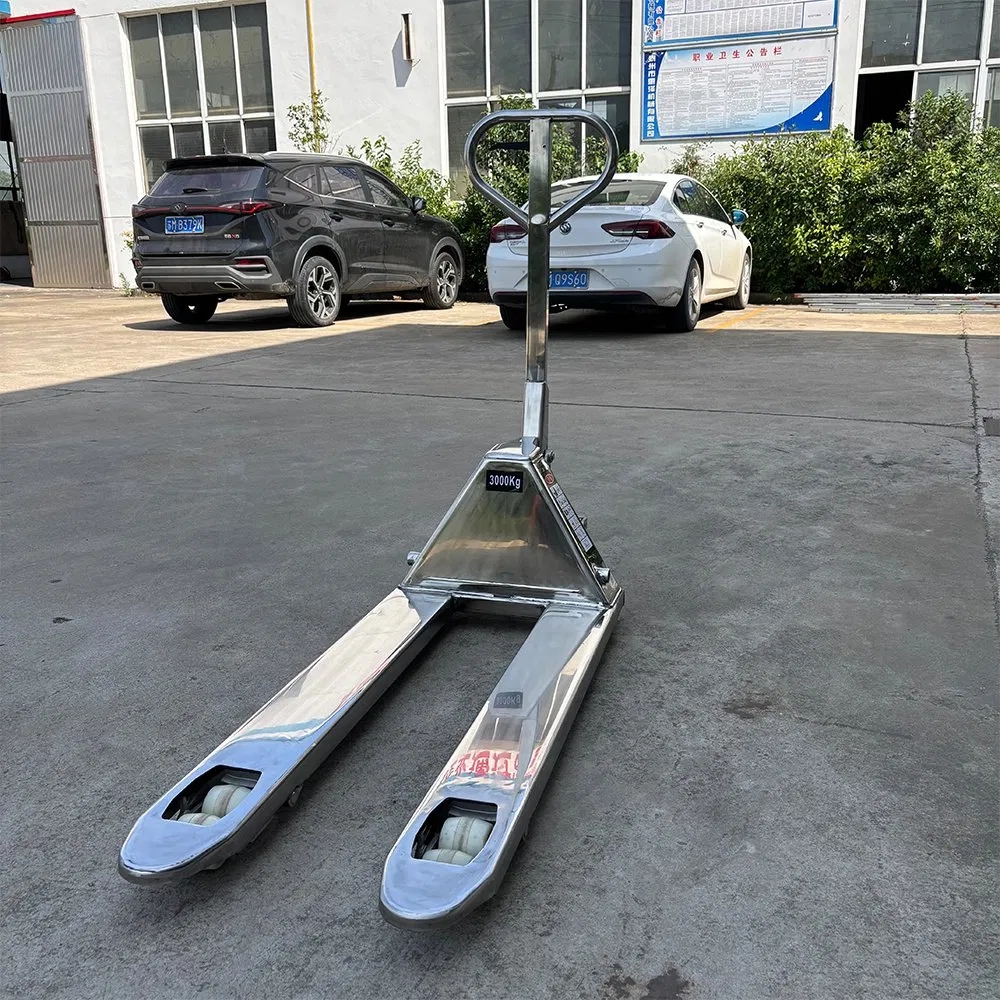

The stainless steel manual pallet truck features an integrated fork, capable of carrying 2000kg to 5000kg. It remains undeformed under heavy loads. Made of 304 stainless steel, it is anti-rust and corrosion-resistant, as well as sturdy and durable. With a sealed design, it is reliable in leak prevention, requiring no maintenance or disassembly. It has a small turning radius, and it is widely used in food processing plants, pharmaceutical warehouses, laboratories, aquatic cold chain, electronic dust-free workshops, etc.


| Model | Load Capacity (kg) | Load Center (mm) | Overall Width (mm) | Fork Length (mm) | Lowered Height (mm) | Max Lift Height (mm) |
|---|---|---|---|---|---|---|
| CBY20 | 2000 | 600 | 550/685 | 1150/1220 | 85 | 195 |
| CBY25 | 2500 | 600 | 550/685 | 1150/1220 | 85 | 195 |
| CBY30 | 3000 | 600 | 550/685 | 1150/1220 | 85 | 195 |
| CBY50 | 5000 | 600 | 550/685 | 1150/1220 | 85 | 195 |

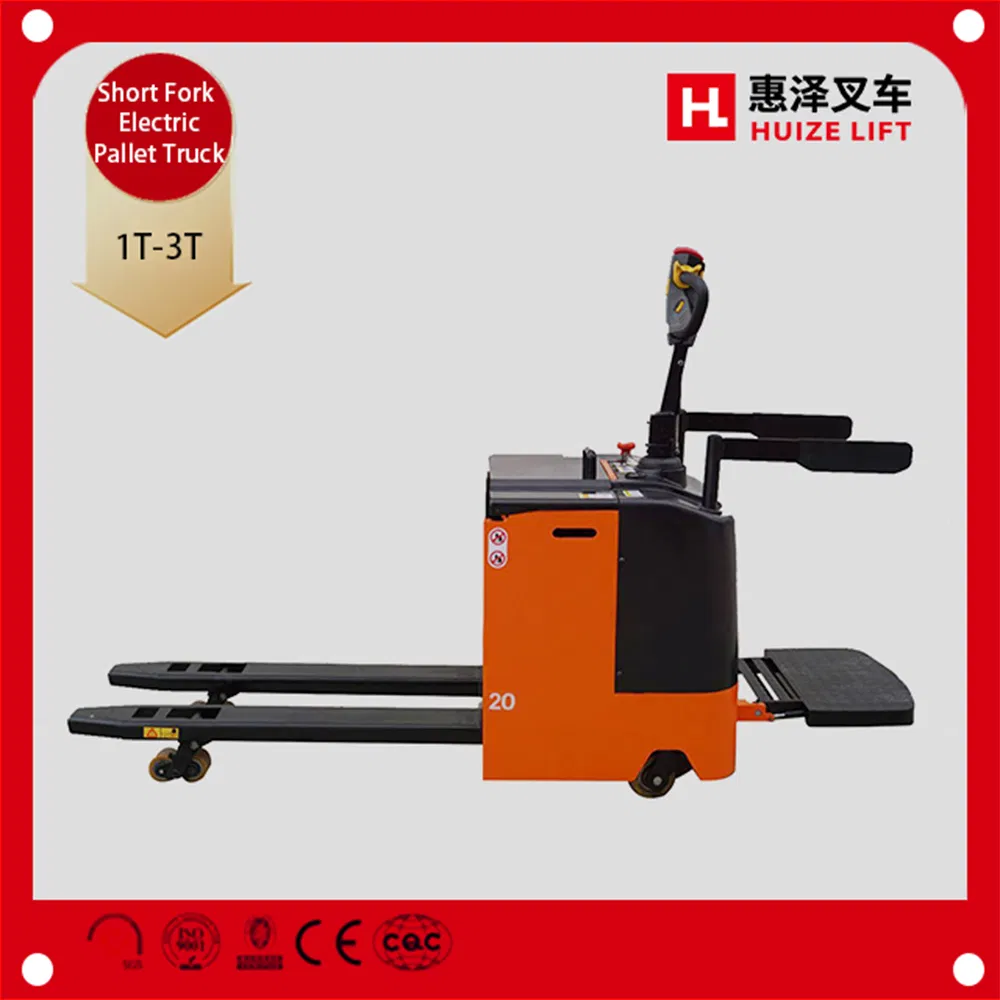

As a source manufacturer specializing in material handling and logistics equipment for 18 years, the factory provides complete services from design and manufacturing to after-sales support. The product range includes electric stackers, pallet trucks, paper roll lifters, and more. Located in a specialized industrial park with superior manufacturing geography, the facility ensures high-quality production and efficient global shipping.
