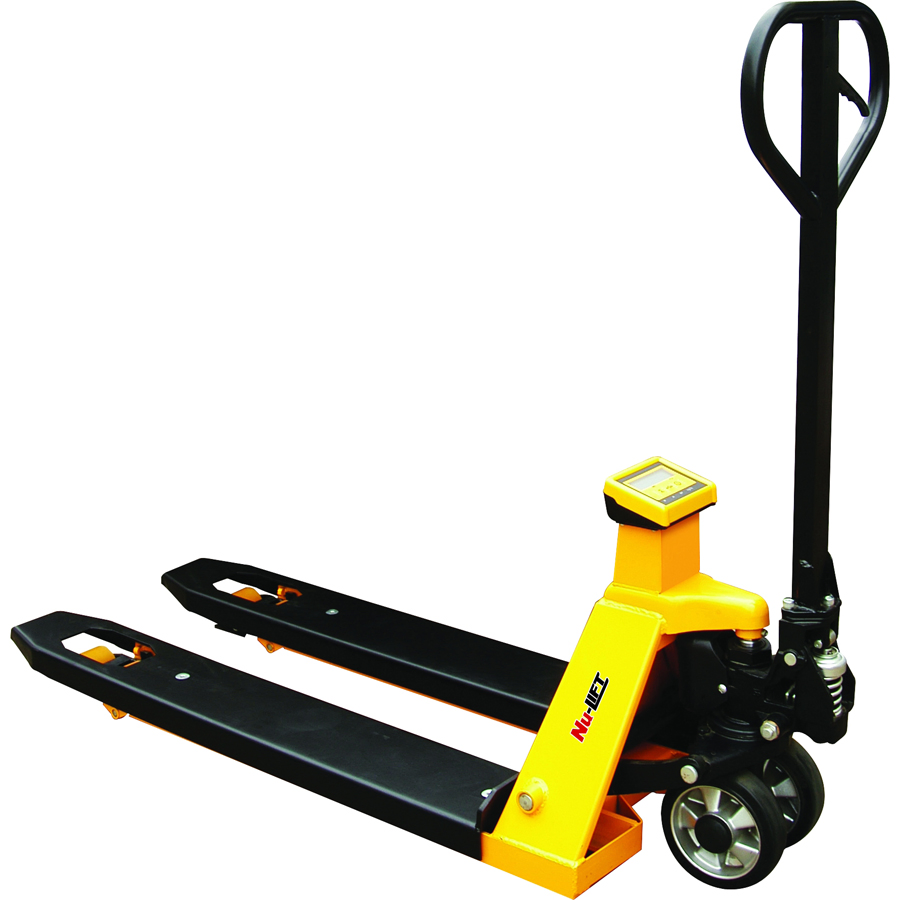

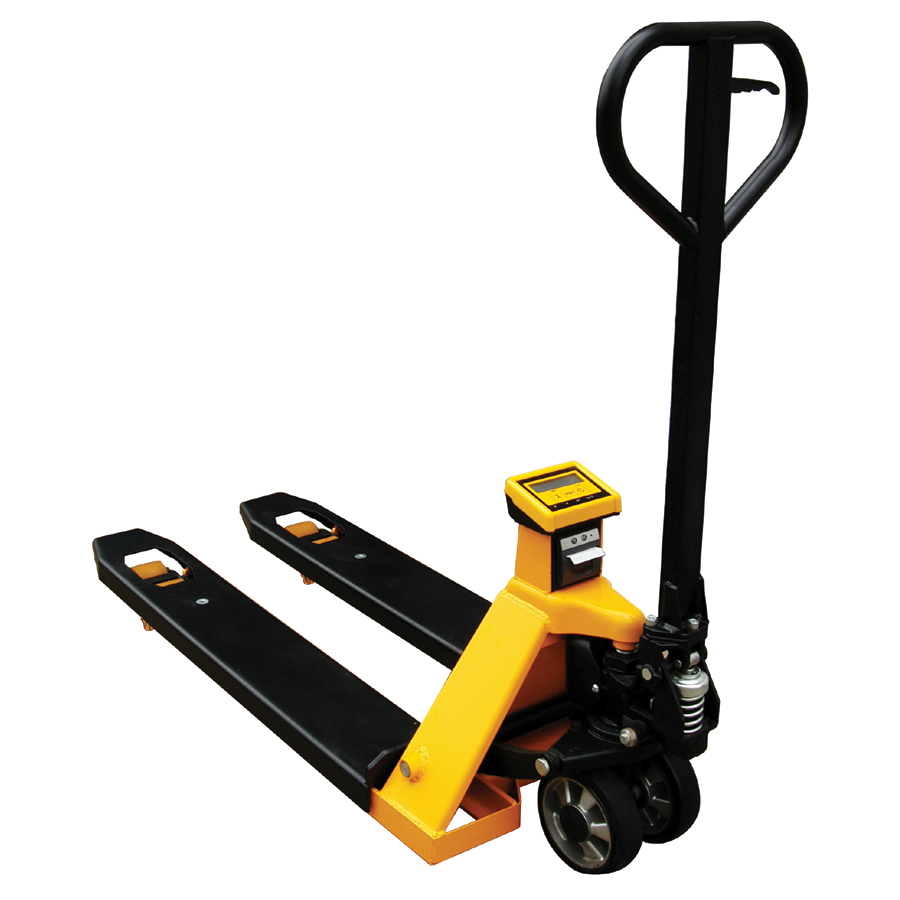

Mobile Weighing Pallet Truck with Ravas Scale-ZF20S

Customization: Available
After-sales Service: spare parts supply
Warranty: spare parts supply

Product Description

📋 Basic Information
Model NO.
ZF20, ZFP20
Type
Manual Pallet Truck
Load Capacity
1T - 5T
Load Center
500mm
Lift Height
205mm
Condition
New
Capacity
2000kg
Specification
CE
HS Code
8427900000
Production Capacity
1000 Pieces / Month
🚀 Product Description
  • Small and compact electronics specially developed for mobile weighing.
  • Highest level of water and humidity resistance.
  • Smaller housing is more robust and withstands impacts and vibration better.
  • One electronic board without connectors means reliability for many years in the hardest applications.
  • Lower weight of the scale itself (122kg) means easier handling.
  • More reliability for the hardest applications and environments.
  • Lower power consumption makes scale more user friendly. New batteries are only needed one time per year when weighing 10 pallets per day.
  • 4 Penlight batteries can be changed without any effort.
  • Auto shut off prevents the batteries to be discharged when client forgets to turn the indicator off.
  • Summation of weights with sequence number allows verification if the total load has been weighed.
  • Printer type: Thermal (for ZFP models)
  • Functions: Manual paper feed, Warning indications by LED (Low battery, No paper, Temperature too low)
  • Print speed: 13 lines per second
  • Operating temperature: 0° To 50° C
Model Unit ZF20S ZF20L ZFP20S ZFP20L
Capacity (kg) 2000 2000

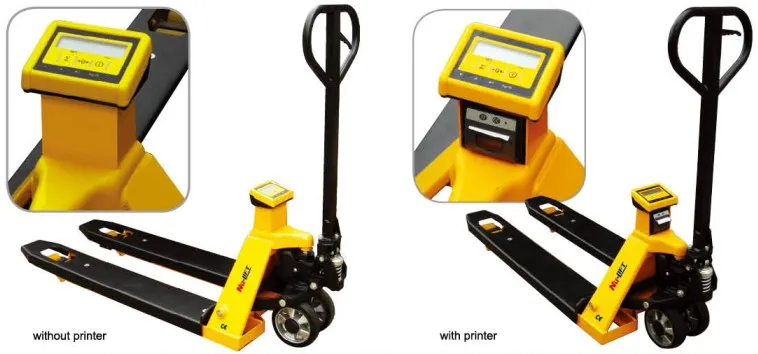

Printer - without with
Max. Fork Height (mm) 205 205
Min. Fork Height (mm) 85 85
Fork Length (mm) 1150 1150
Width Overall Forks (mm) 555 690 555 690
Fork Width (mm) 180 180
Net Weight (kg) 117 120 118 121
🖼️ Product Gallery
Mobile Weighing Pallet Truck-1
Mobile Weighing Pallet Truck-2
Mobile Weighing Pallet Truck-3
Mobile Weighing Pallet Truck-4
Mobile Weighing Pallet Truck-5
Frequently Asked Questions
What is the maximum load capacity of these pallet trucks?
The ZF20 and ZFP20 series have a standard load capacity of 2000kg, suitable for most industrial weighing and transport tasks.
How long do the batteries last on the weighing scale?
Thanks to low power consumption and auto shut-off features, new batteries typically only need replacement once per year when weighing approximately 10 pallets per day.
Can I use this pallet truck in humid or wet environments?
Yes, the electronics are specially developed for mobile weighing with the highest level of water and humidity resistance.
What is the difference between ZF20 and ZFP20 models?
The primary difference is the printer; ZF20 models come without a printer, while ZFP20 models include a built-in thermal printer for immediate weight documentation.
Does the scale provide a total weight for multiple loads?
Yes, the system includes a summation function with sequence numbers, allowing you to verify the total load weighed across multiple pallets.
What type of batteries does the weighing system use?
The system operates on 4 standard Penlight batteries which can be easily changed without significant effort.
