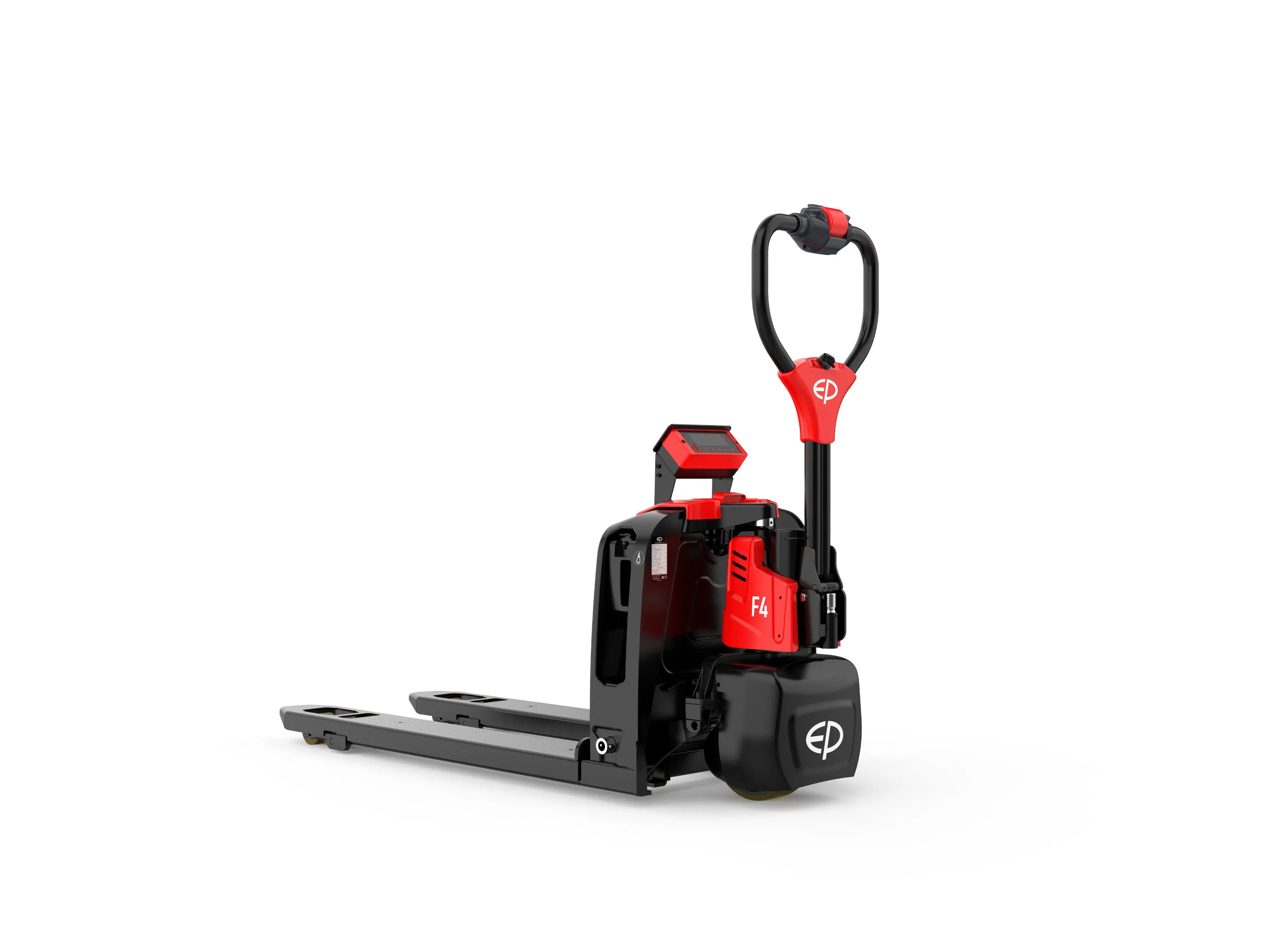

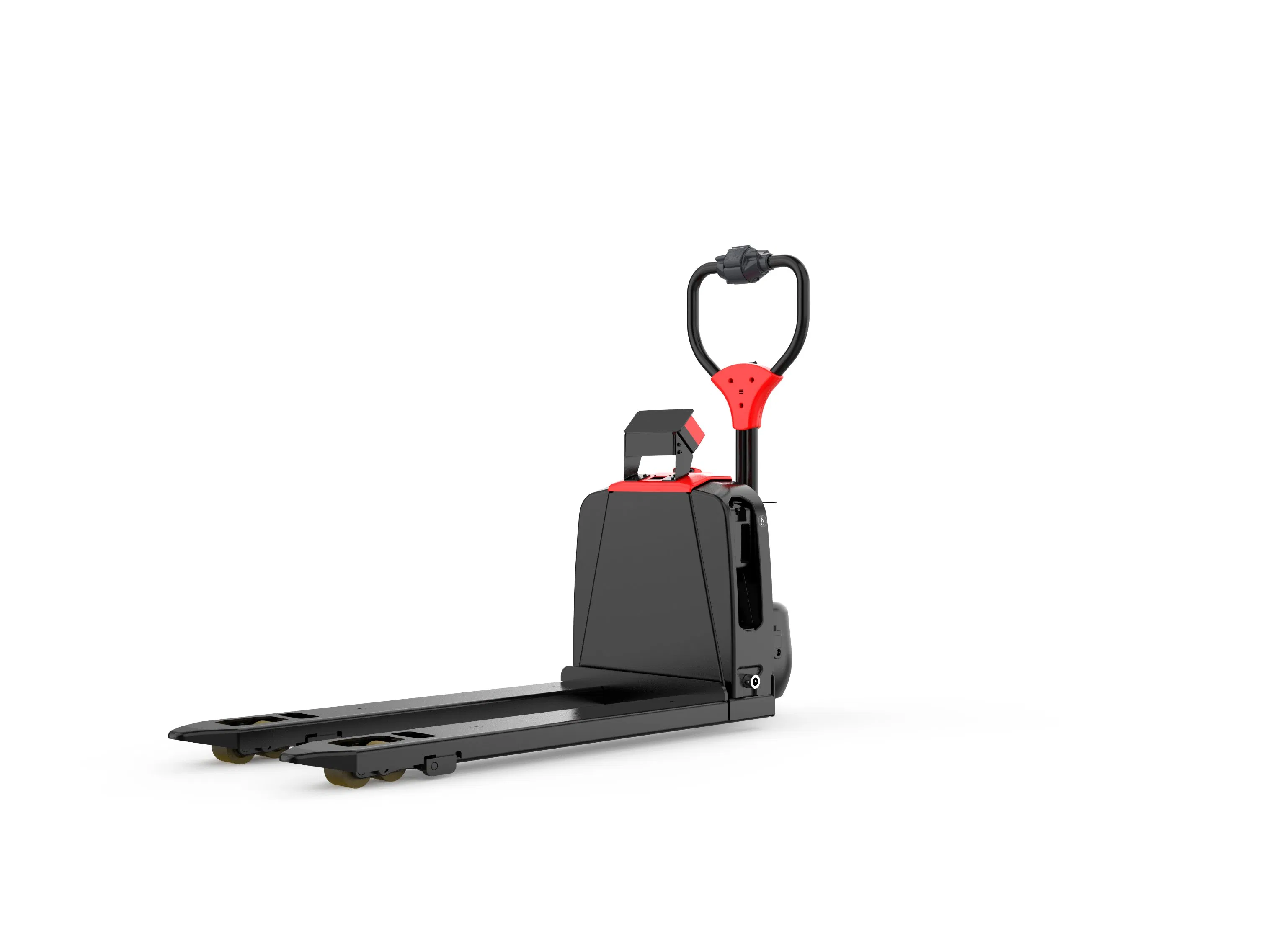

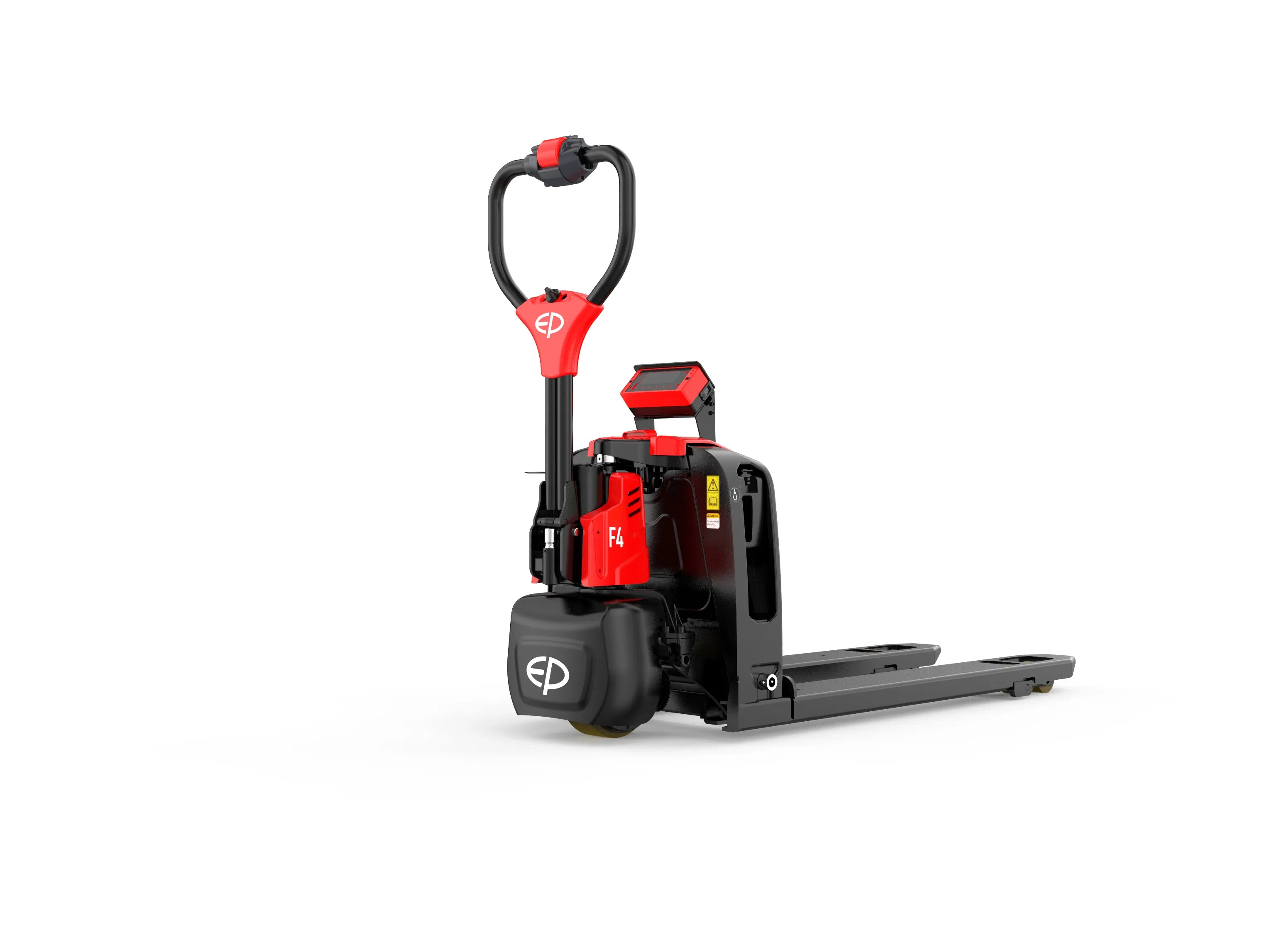

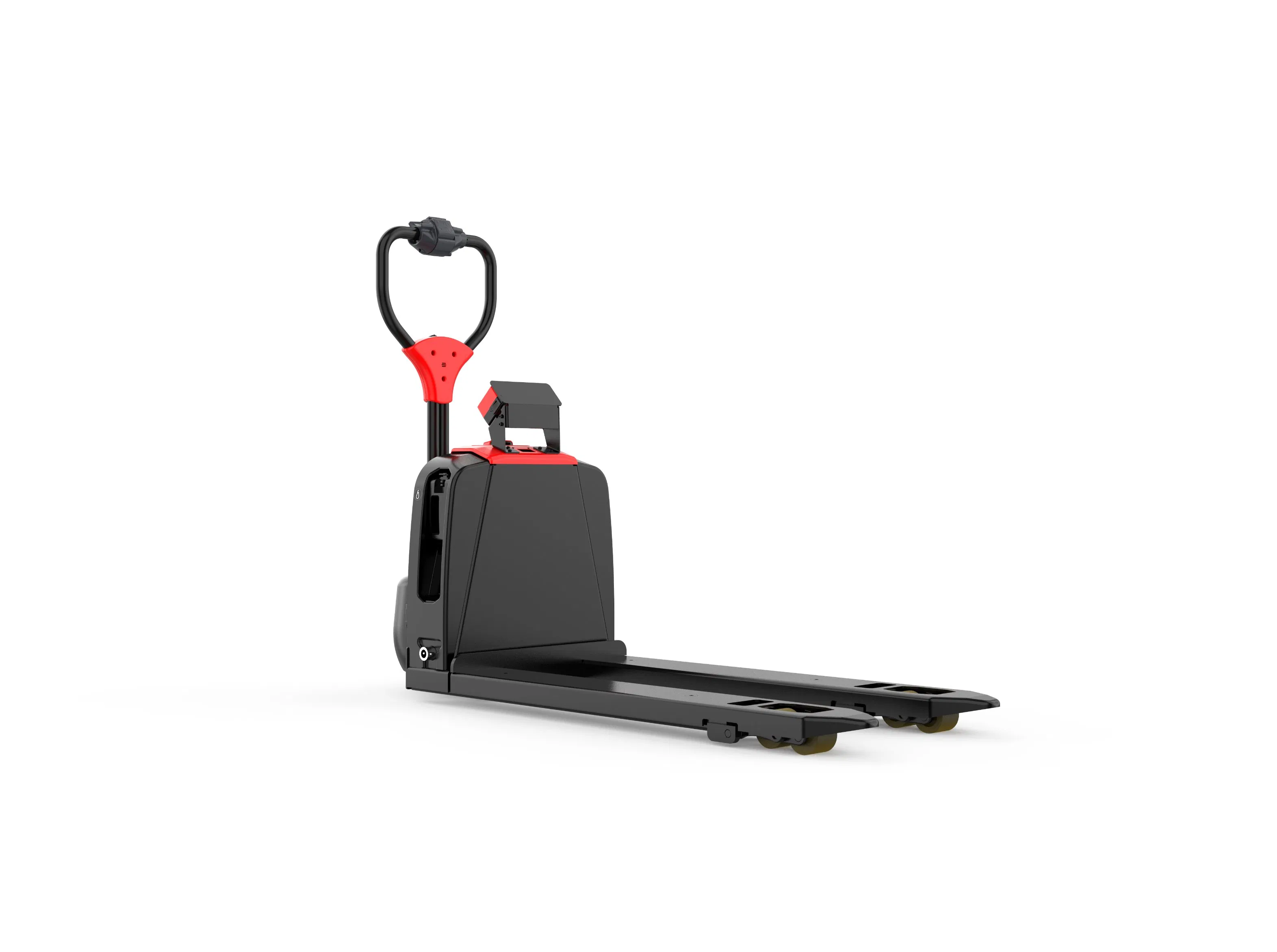

Ep Electric Li-ion Pallet Truck with Scale Weighing 1500kg

Customization: Available
After-sales Service: Local Service
Warranty: 2 Years

Product Description

i

Basic Specifications

Model NO.
F4 with scale
Type
Powered Pallet Truck
Power
AC Motor
Load Capacity
1.5t
Fuel
Electric
Load center
600mm
Lift height
105mm
Condition
New
Specification
155kg
Origin
China

Product Overview

In the modern logistics and distribution industry, efficiency and flexibility is essential. F4 with scales is ideal for weighing in warehouses and can plays a helpful role in a smooth supply chain. This functional tool allows the operator to check the weight of loads accurately at different locations, reducing the need of unnecessary move of goods and improving work efficiency.

Featuring a two battery slot design, F4 is an all-rounder to cope with various levels of applications with two battery options from occasional usage to long work shifts.

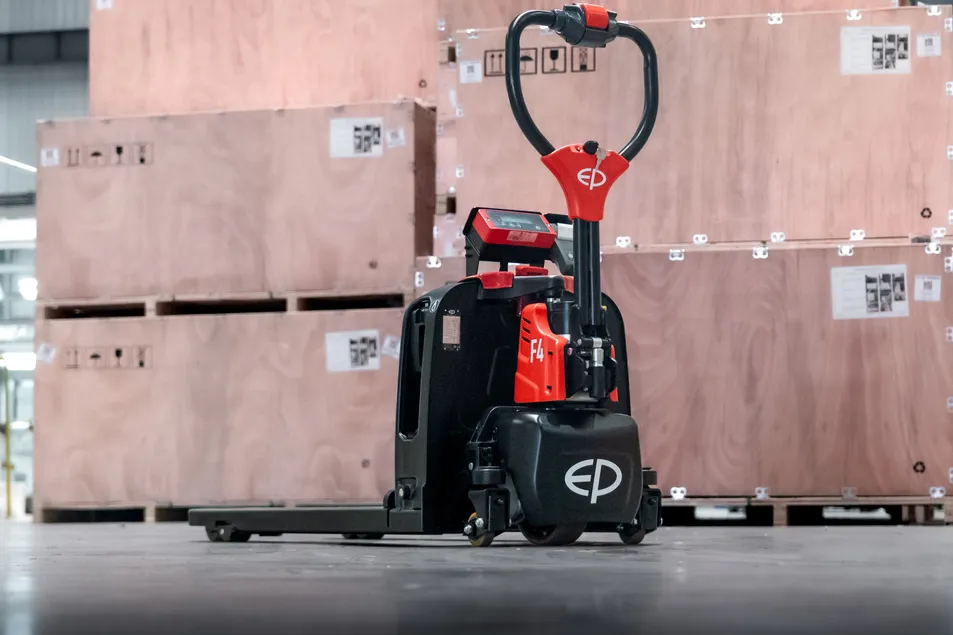

Electric Pallet Truck with Scale

Applications & Configurations

Industrial Applications

The F4 with scale is an ideal helper in all industrial applications, especially in large warehouses and when receiving incoming goods. With the mobile weighing function, the operator can weigh the goods and count the pieces on the go and make records, saving valuable time and optimize productivity. It can cope with harsh environments thanks to its reliability and water resistance.

Standard Configurations
  • RAVAS 1100 mobile scale display
  • Frame with double forks with 4 load cells
  • 1150*560 fork
  • Turtle speed control
  • 24V/20Ah li-ion battery
  • 0.75kW drive motor
  • PU drive and loading wheels
  • Optional printing function (RAVAS2100)

Operation Video

Video Cover
?

Why Choose F4 with Scale?

Time saving and accuracy: Offers the ability to weigh goods accurately on the move, saving time and energy if the weighing station is remote. Precise measurement results also help reduce human error and ensure reliable stock management.

Flexibility and mobility: The operator can obtain weight data anywhere within the warehouse, such as at goods receiving or shipping points. The mobile weighing function provides maximum flexibility and eliminates the reliance on fixed weighing stations.

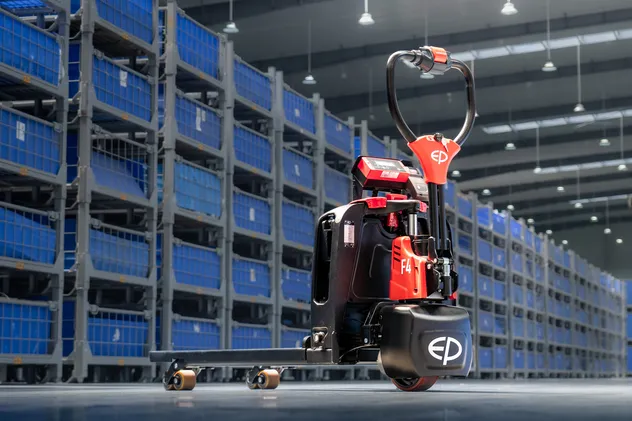

Scale Detail 1

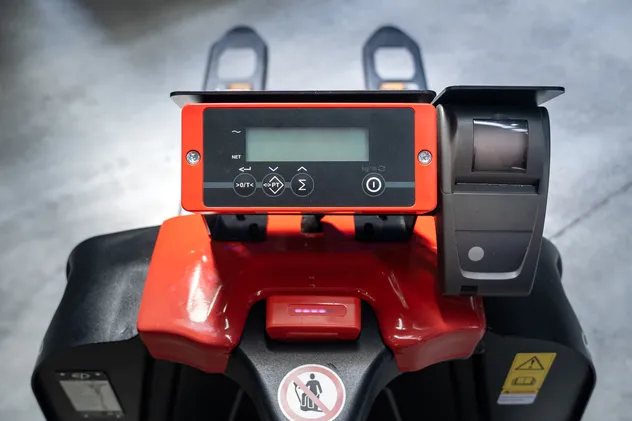

Scale Detail 2

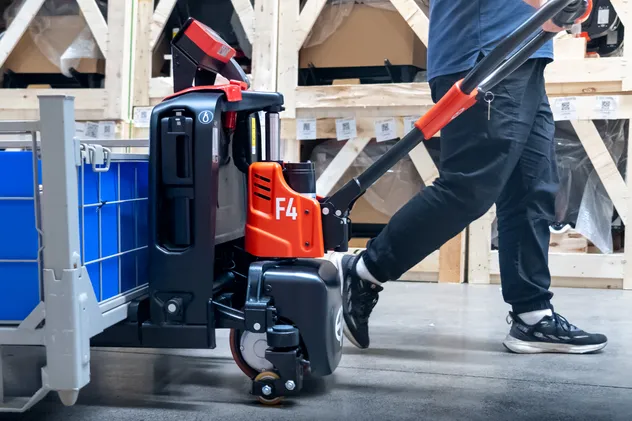

Scale Detail 3

Product Appearance

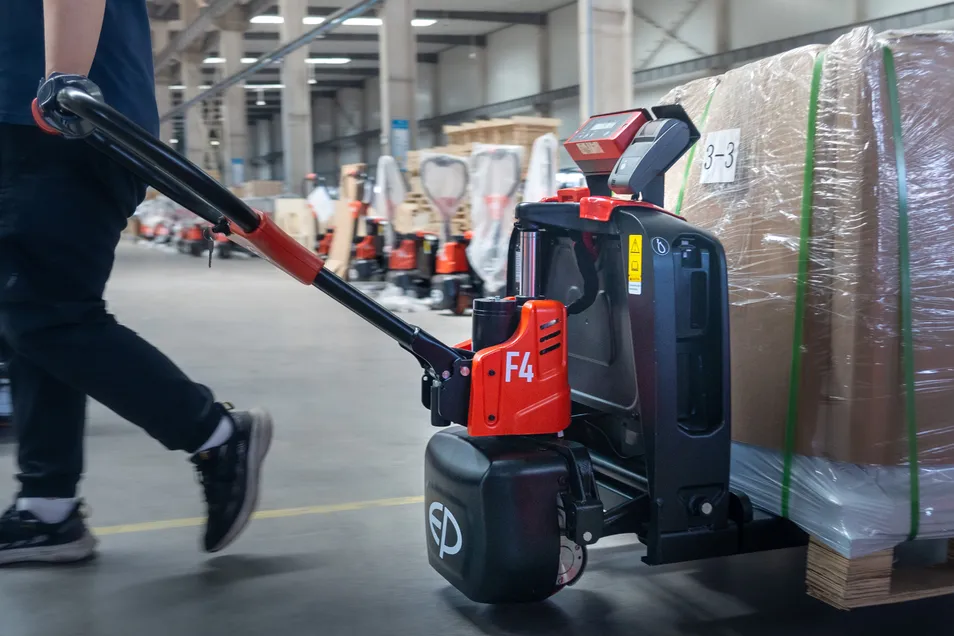

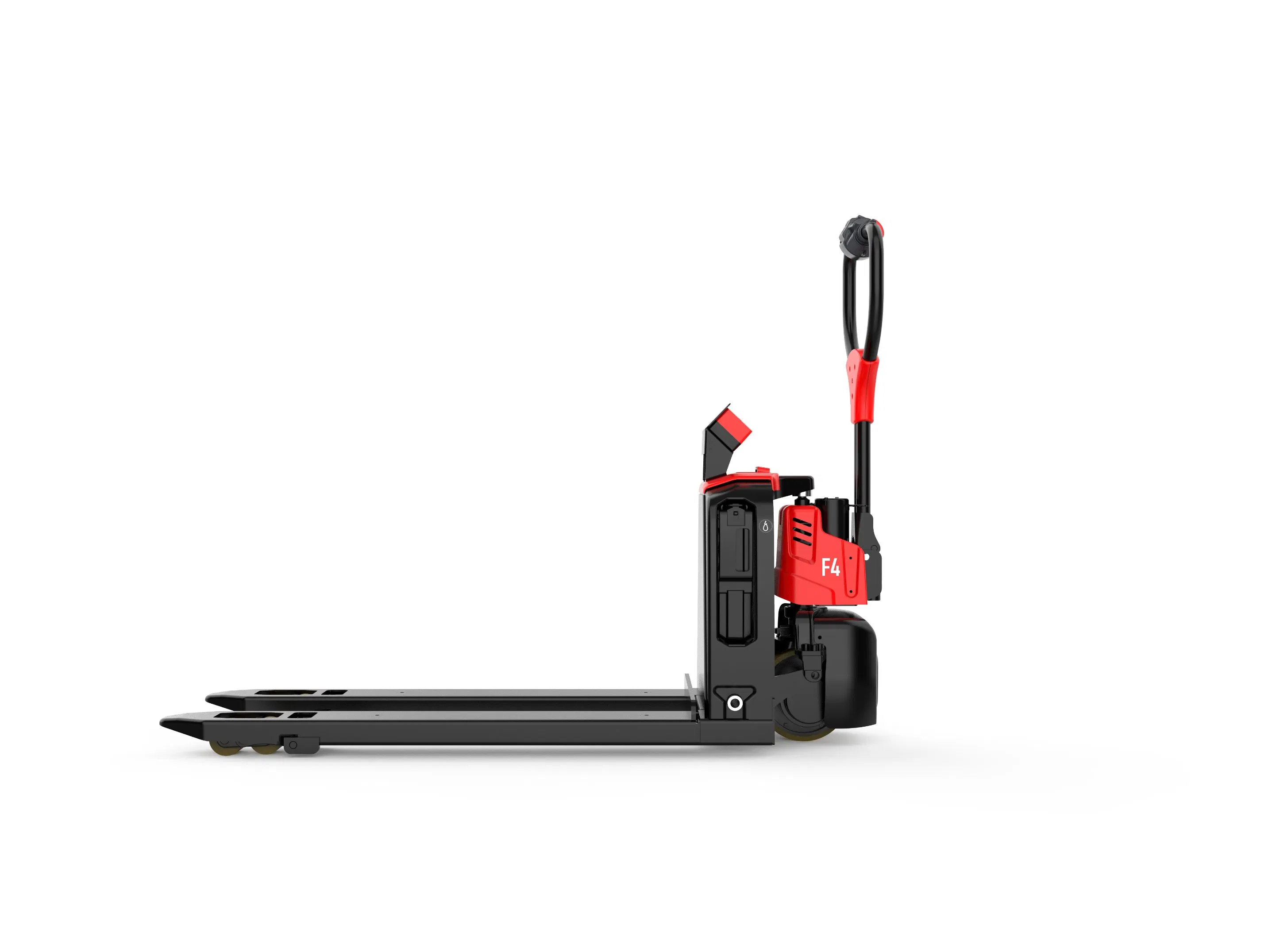

Product Appearance Side

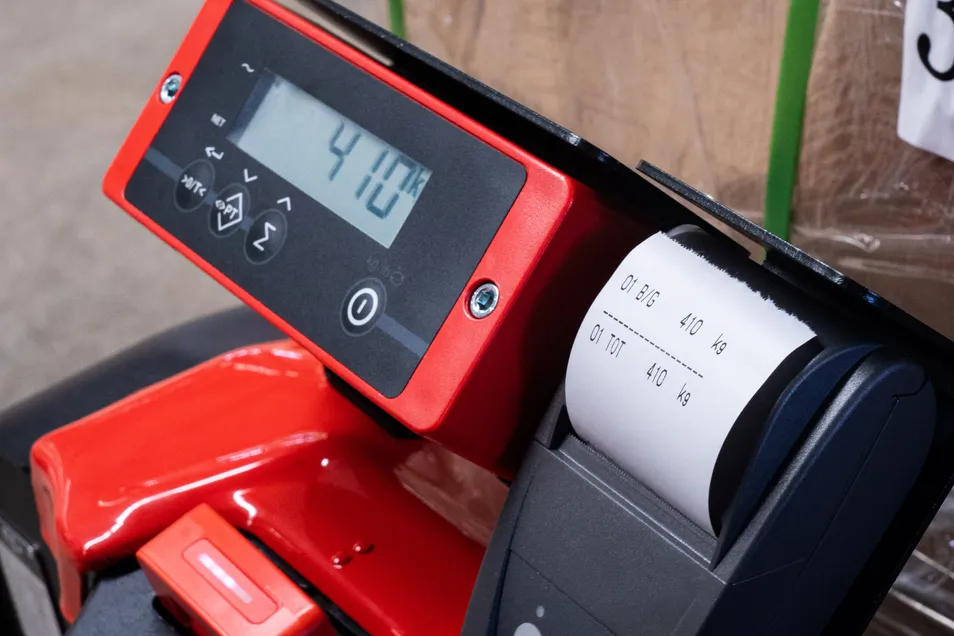

Product Appearance Front
M

Manufacturer Profile

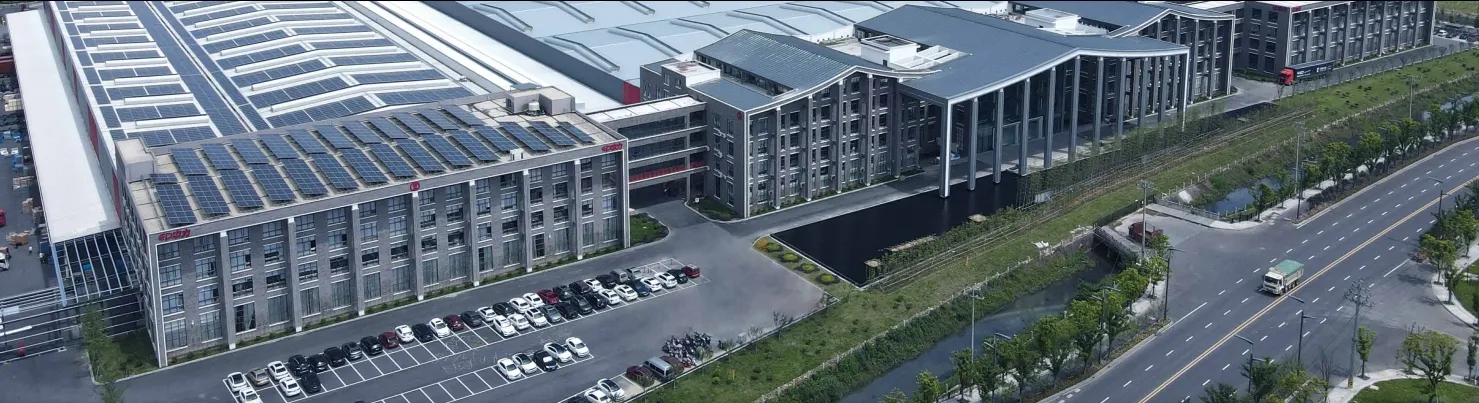

Factory Overview

Founded in 2007, the manufacturer specialises in lithium-powered warehouse equipment. By driving progress with products and leading revolution through innovation, the company has pioneered industry changes and broken through the ceiling of industry development with innovative models. The advanced management philosophy "think global, act local" makes it a global player among its peers.

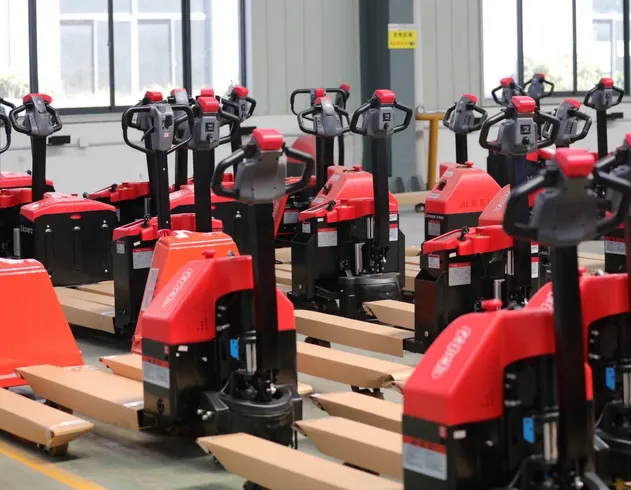

Production 1
Production 2

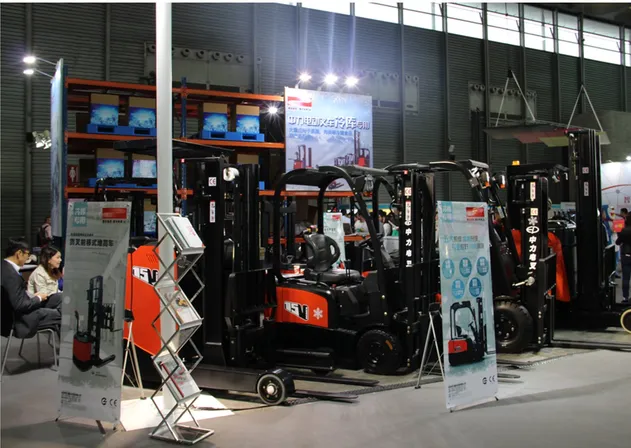

Production 3
Q

Frequently Asked Questions

1. What is the maximum load capacity of the F4 with scale?
The F4 with scale has a rated load capacity of 1.5 tons (1500kg), making it suitable for most standard warehouse pallet tasks.
2. How does the mobile weighing function improve efficiency?
It allows operators to weigh goods and record data directly during transport. This eliminates the need to travel to a fixed weighing station, saving time and optimizing warehouse workflow.
3. What type of battery system does it use?
It features a 24V/20Ah Li-ion battery with a two-battery slot design. This allows for flexible power management, supporting everything from occasional use to long work shifts.
4. Can this pallet truck be used in wet or harsh environments?
Yes, the F4 with scale is designed for reliability and features water resistance, allowing it to perform effectively in various industrial and harsh environments.
5. Is there an option to print weight records?
Yes, as an option, the truck can be equipped with a built-in printer (RAVAS2100) capable of printing gross, tare, and net weights in either kg or lb.
6. What are the standard fork dimensions?
The standard configuration comes with 1150*560mm double forks equipped with 4 integrated load cells for accurate measurement.
