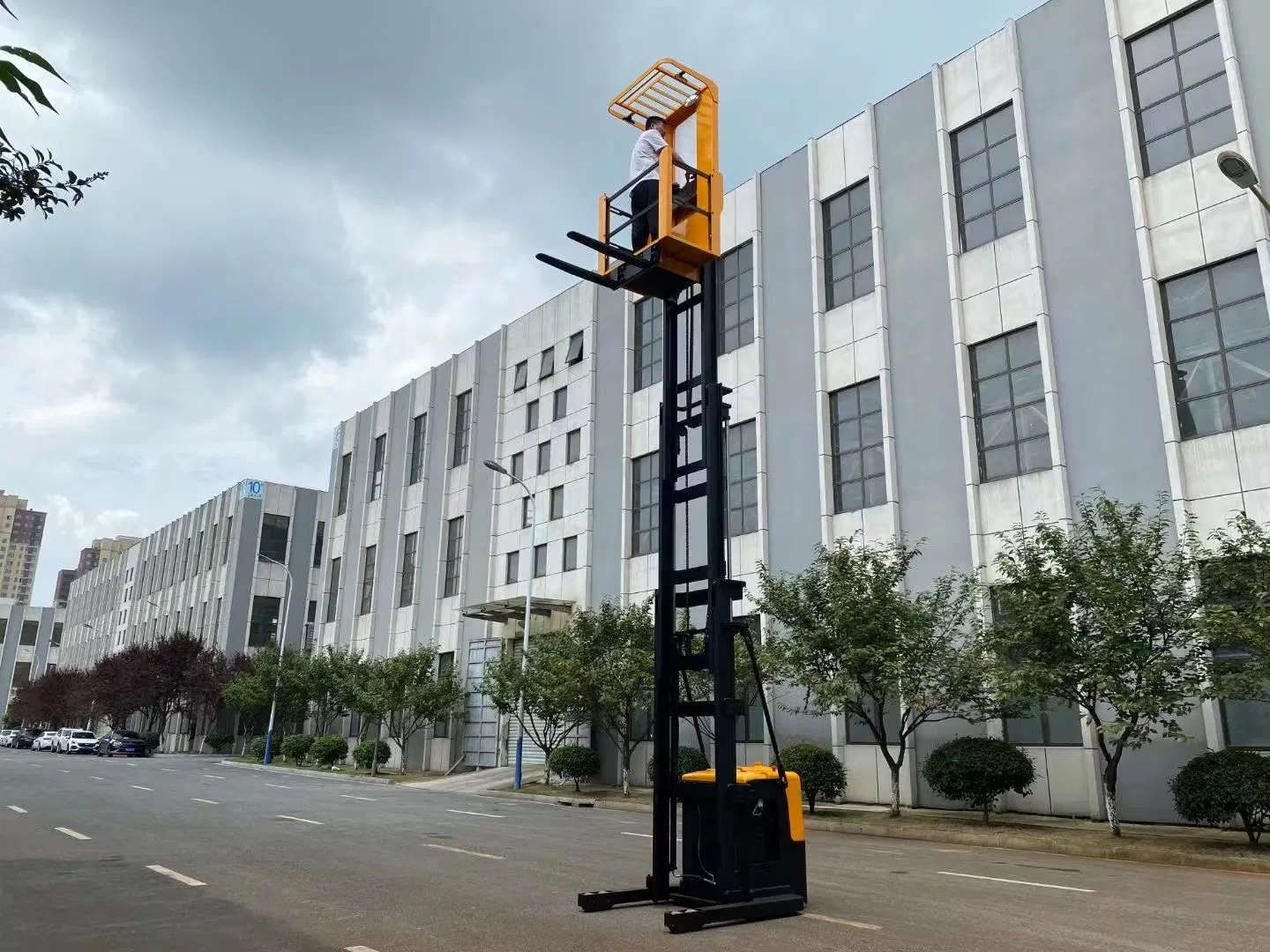

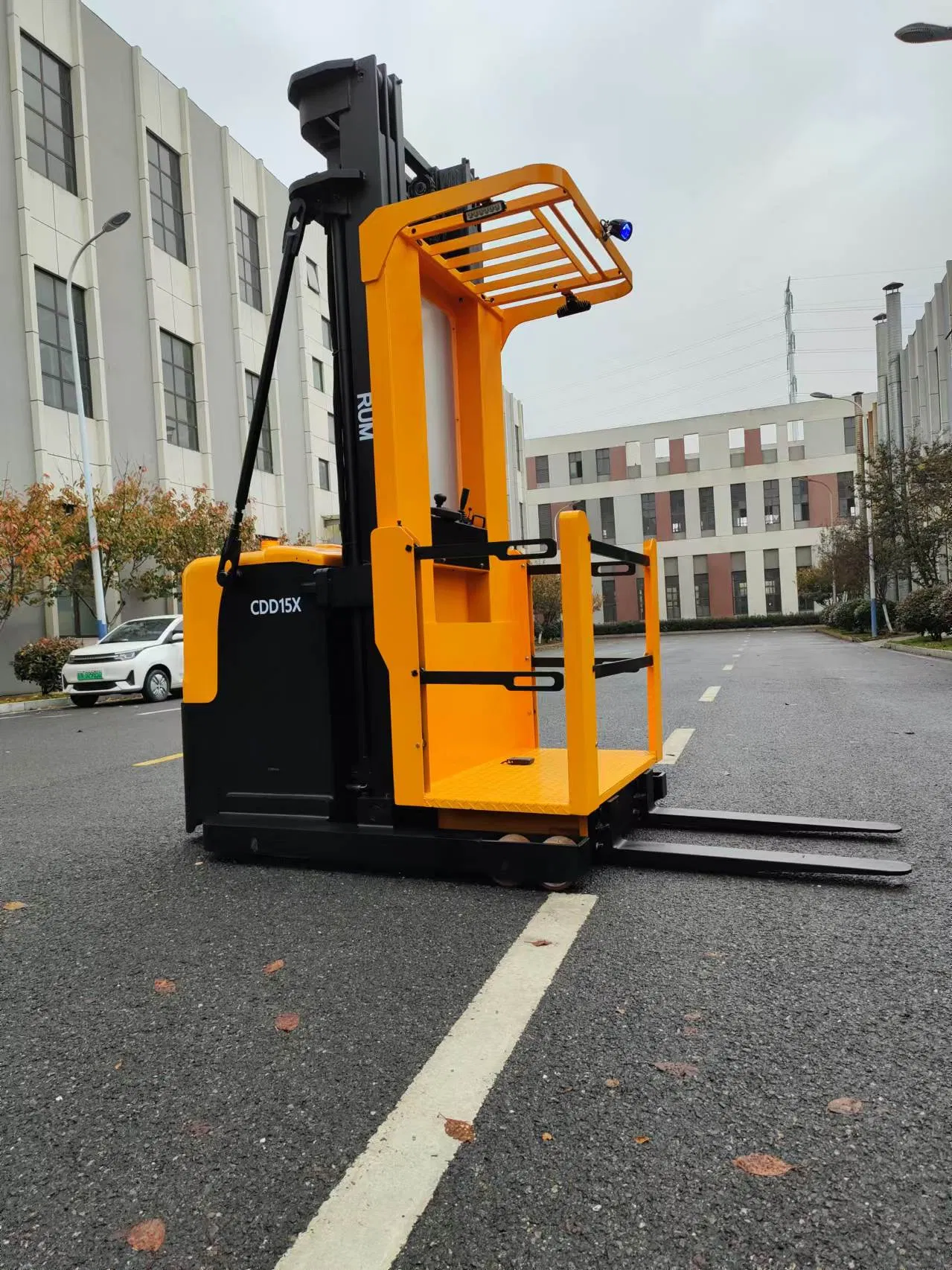

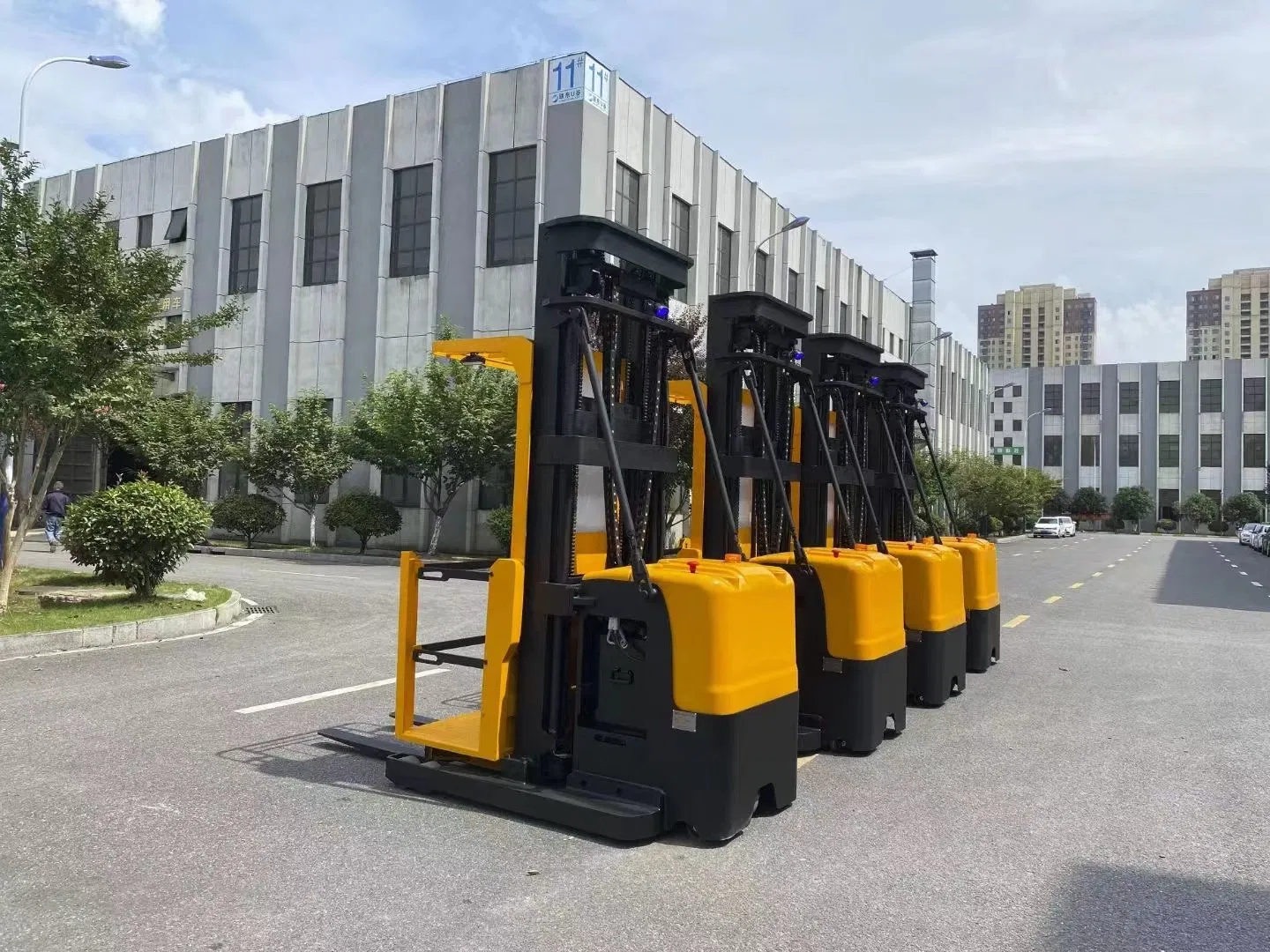

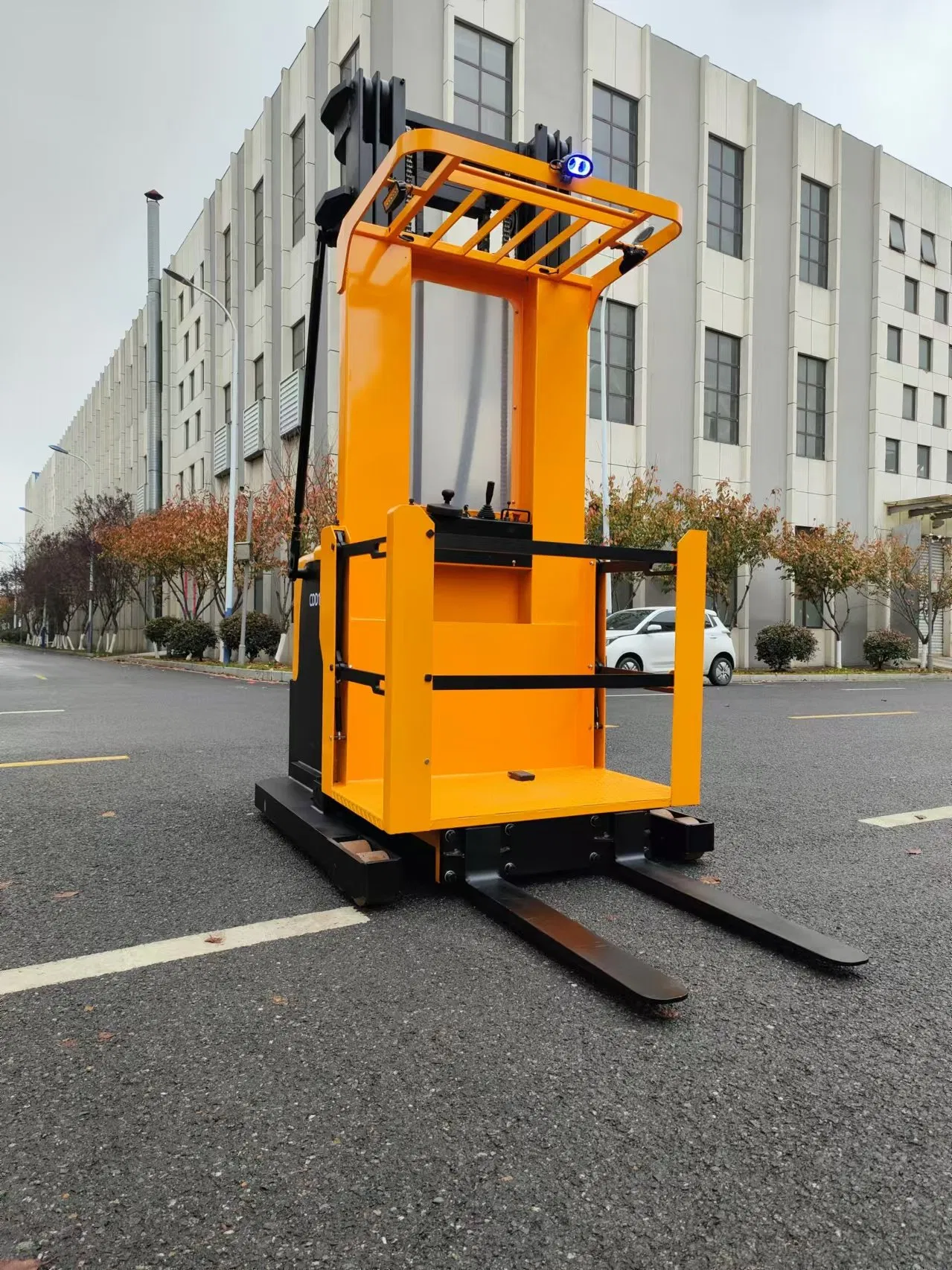

Battery Electric Level Order Picker Forklift 1000 Kg Warehouse

1 / 5

Battery Electric Level Order Picker Forklift 1000 Kg Warehouse

Customization:	Available
Warranty:	1 Year
Cab Location:	Not Adjustable

Send Inquiry

Product Description

Basic Info

Model NO.

CDD10X

Type

Electric Forklift

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load center

500mm

Lift height

3000~5000mm

Condition

New

Lifting Height

3 M to 9.5 M Option

Transport Package

Wooden Pallet /Steel Pallet

Origin

China

HS Code

84271090

Production Capacity

5000 Unit / Year

Product Description

Key Advantages:

✔

Advanced electric steering technology (EPS) with humanized design, automatic reset, height display, and automatic deceleration at high lifting levels.

✔

Finger tip control via joystick; stepless speed control for driving, lifting, and lowering.

✔

Buffer oil cylinder: automatic deceleration when 500mm off the ground to prevent impact and noise.

✔

Dividable and exchangeable mast and frame.

✔

Low battery protection setting prolongs battery usage.

✔

AC motor eliminates carbon brush replacement, providing excellent ramp starting and regenerative braking functions.

✔

Sideway battery design for convenient maintenance and exchange.

✔

High-grade mast material imported from Germany.

✔

Automatic deceleration during quick turns for enhanced safety.

✔

Multi-function instrument with LED indicators for battery, faults, temperature, and braking.

Model	Unit	CDD10X-45S	CDD15X-45S
Operation Mode	-	Picking Type	Picking Type
Load Capacity	Q(kg)	1000	1500
Load Center	C(mm)	500	500
Wheelbase	Y(mm)	1425	1845
Self-weight (With Battery)	kg	2600	3000
Wheel Type	-	PU Solid Tire	PU Solid Tire
Lifting Height	h3(mm)	4500	4500
Vehicle Body Width	b1(mm)	1130	1300
Min. Turning Radius	Wa(mm)	1657	2140
Driving Speed (Unladen/Laden)	km/h	5/3	5/3
Drive Motor	kw	2.5	6.5
Lift Motor	kw	3	6.3

Frequently Asked Questions

How long is the warranty for the products?

We provide 24 months or 2500 hours warranty for the whole machine from the on-board time.

What is the typical delivery time?

Usually, the production time is 15-20 days after receiving the advanced payment. For standard products, we may have stock available for immediate delivery.

What is the continuous working time and charging duration?

The continuous working time is around 4-6 hours depending on battery volume and operation. A full charge takes about 5 hours. The intelligent charger stops automatically once the battery is full.

How long is the battery lifespan?

Our batteries are built to DIN standards (German technology) and can operate for up to 6 years without any problems.

Do you provide customized OEM or ODM products?

Yes, we can provide customized products per your request. Both OEM and ODM are acceptable. We handle many non-standard product requests.

What are the charger specifications and color options?

Chargers are available in 110V to 415V (1 or 3 phase) with various international plugs. For colors, we offer orange-red, red, white, green, blue, and more based on your RAL code.
